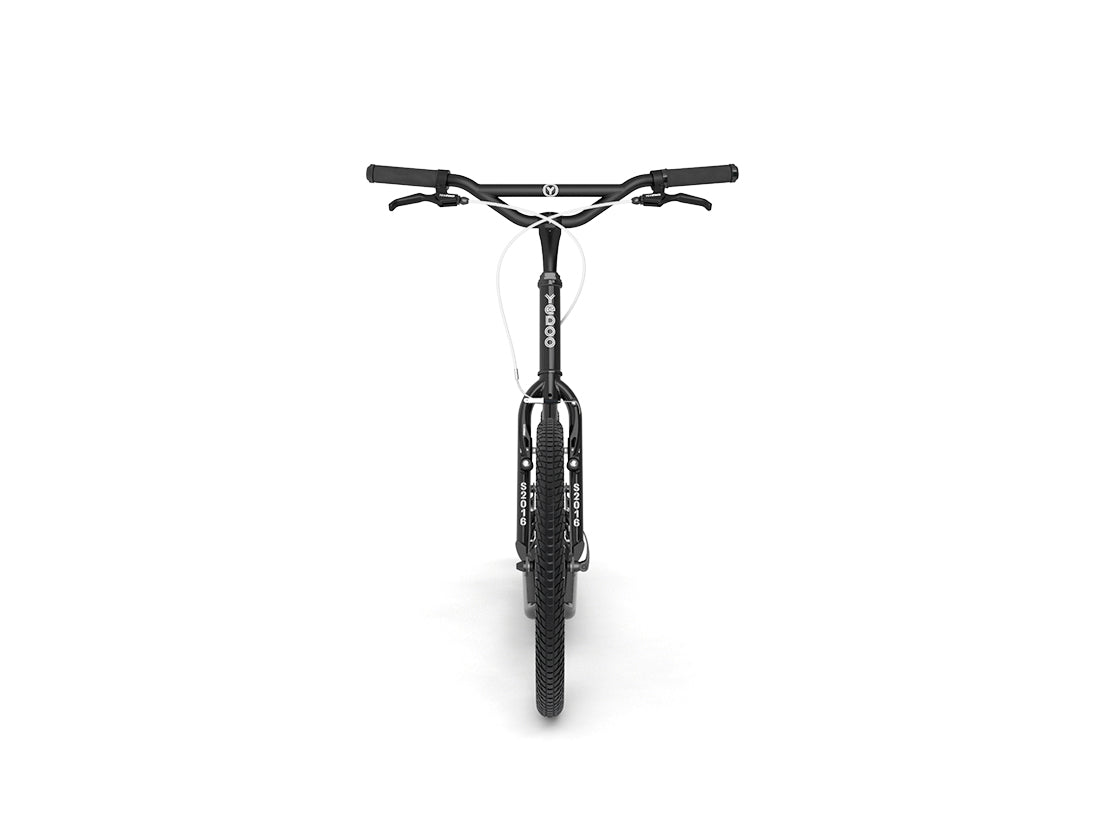

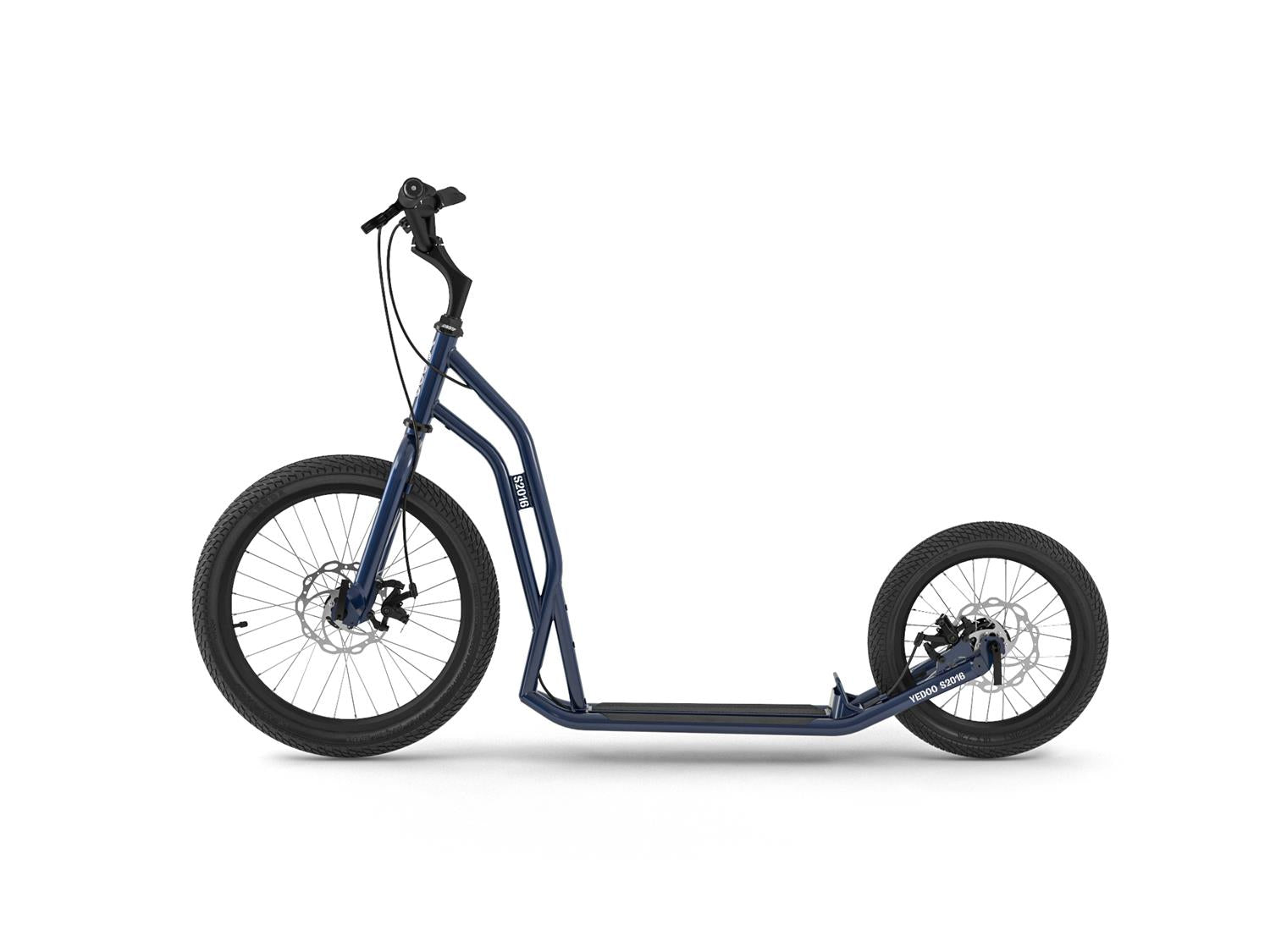

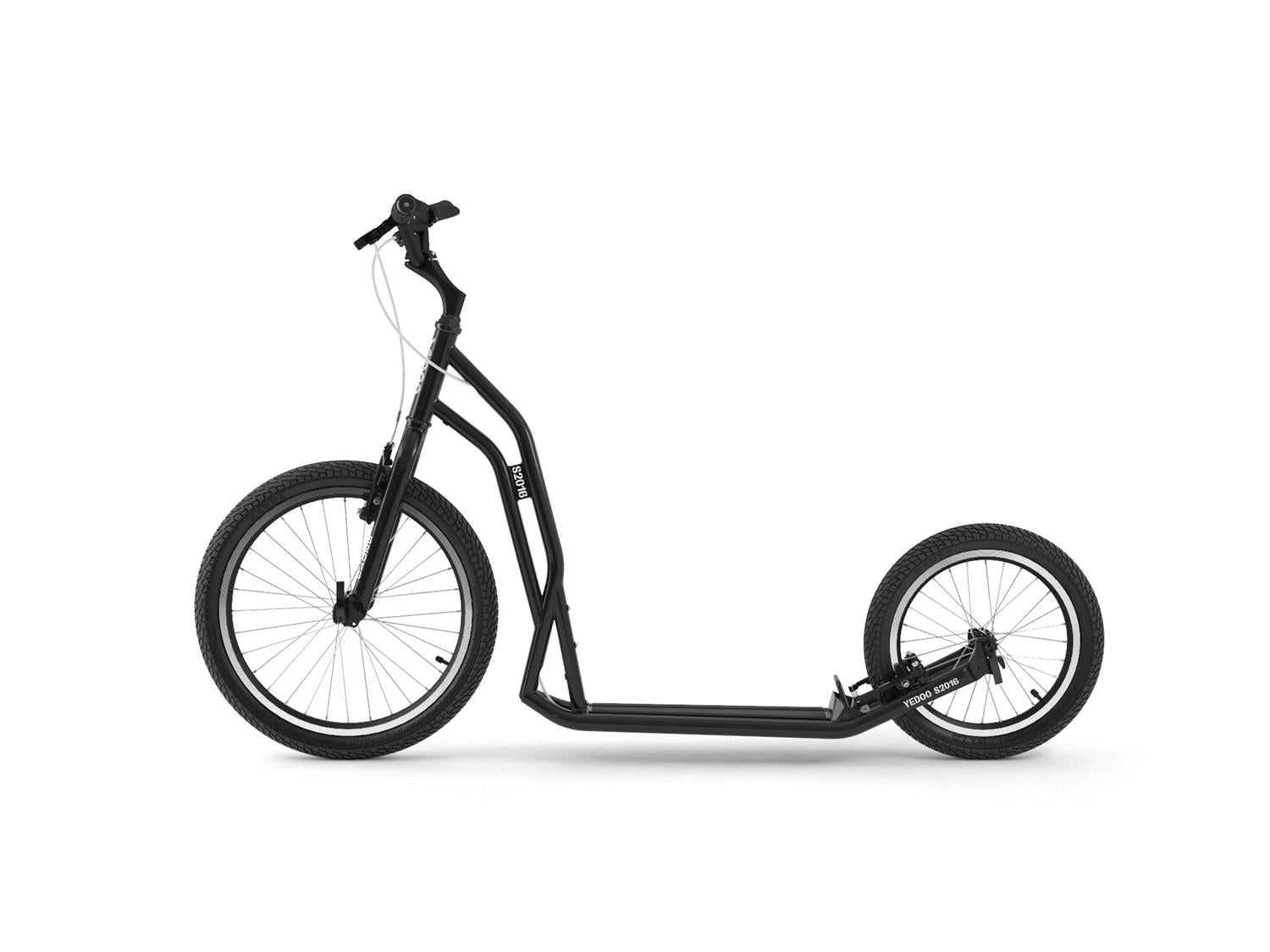

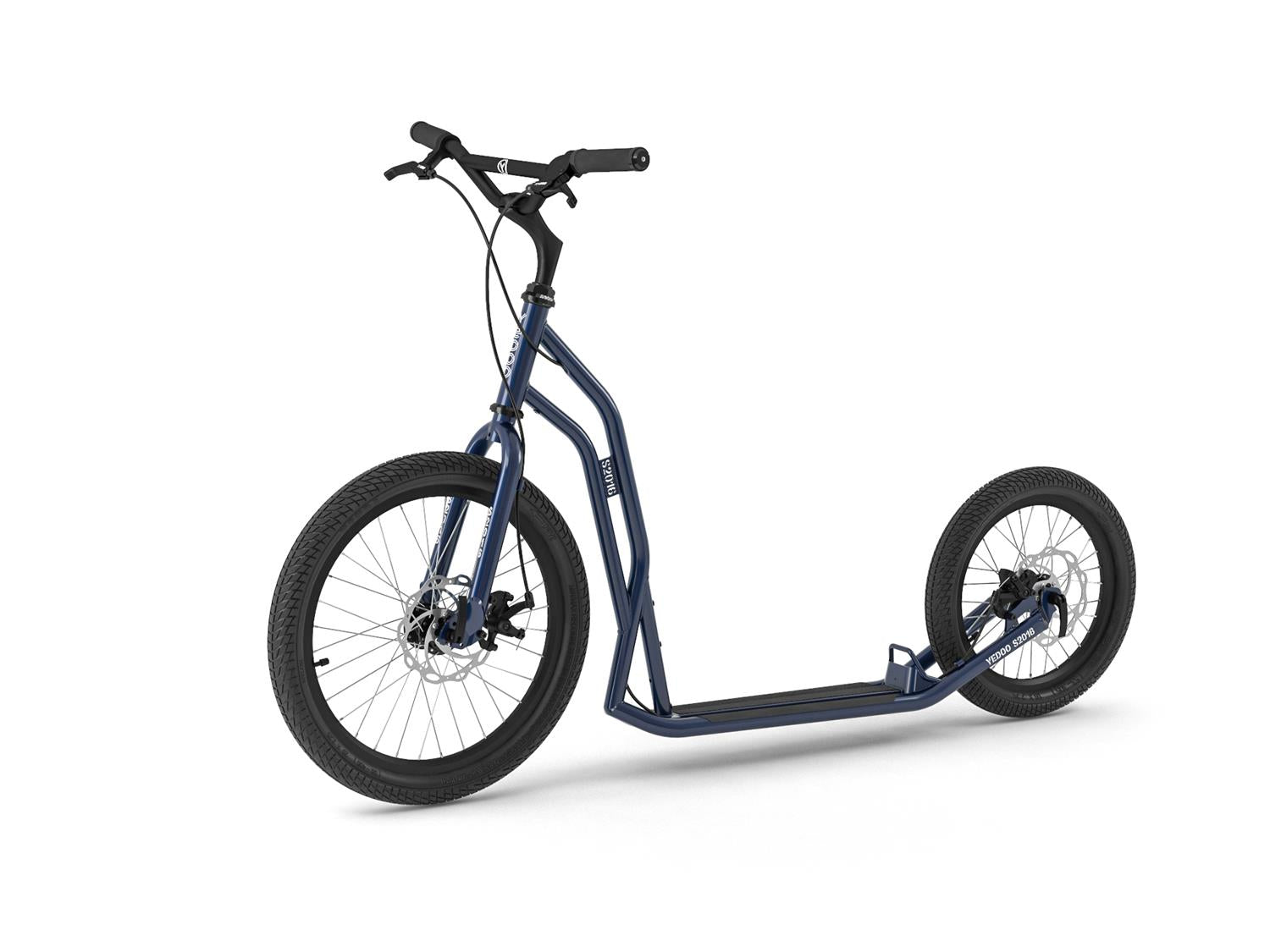

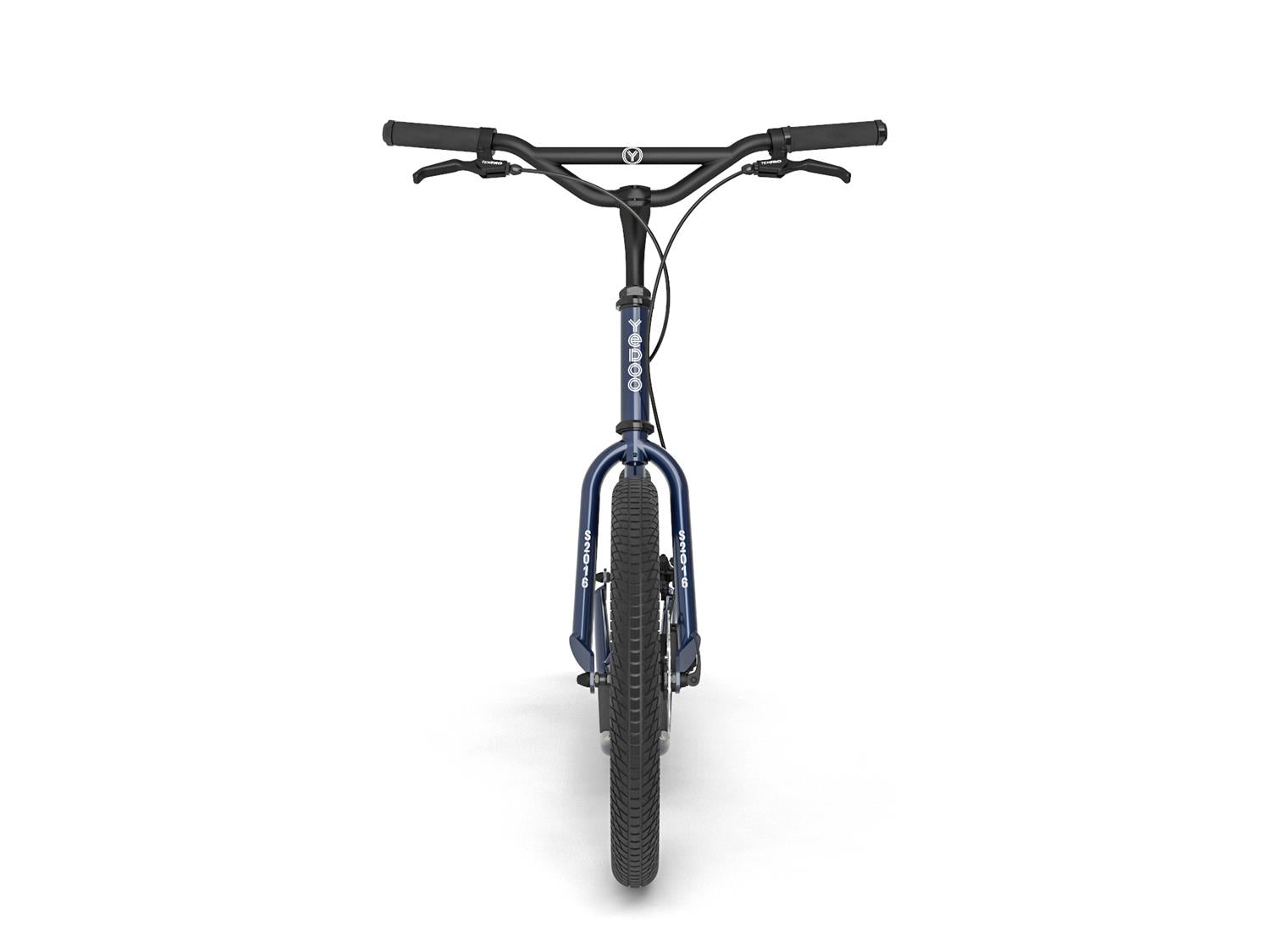

Yedoo S2016 Disc Adult Scooter

Have you ever got lost in the city jungle and did not want to find your way again? S2016 Disc has the prerequisites for these. The off-road version of the standard S2016 has stronger tyres, wider hubs and dics brakes on both wheels, which ensure certainty and safety on slippery concrete as well as during a foggy descent on wet needle-covered ground.

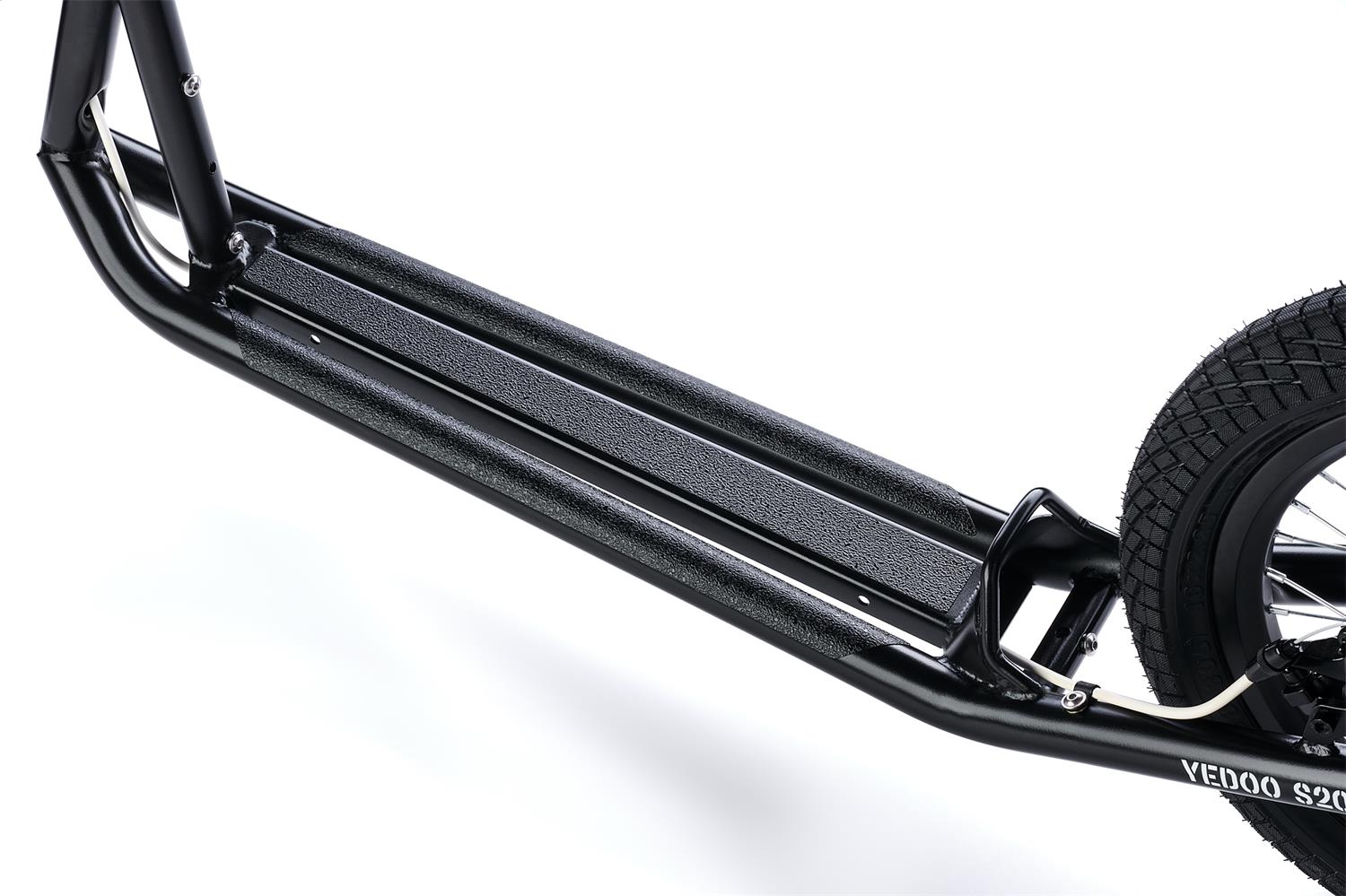

Originally Yedoo steel frame - Adjustable oversize handlebars - Ergonomic grips and Tektro brake levers - Prepared for a stand and a bottle holder - Yedoo footboard with anti-slip surface - Disc Brakes - Quick-release levers.

Technical details

• Loading limit - 150 kg / 330 lb
• Min. height of rider - 150 cm / 59 in
• Weight (with/without kickstand) - 10,4 kg / 22.9 lb
• Box size - 112 x 17,5-18 x 64 cm
• Box weight - 12,7 kg / 28 lb

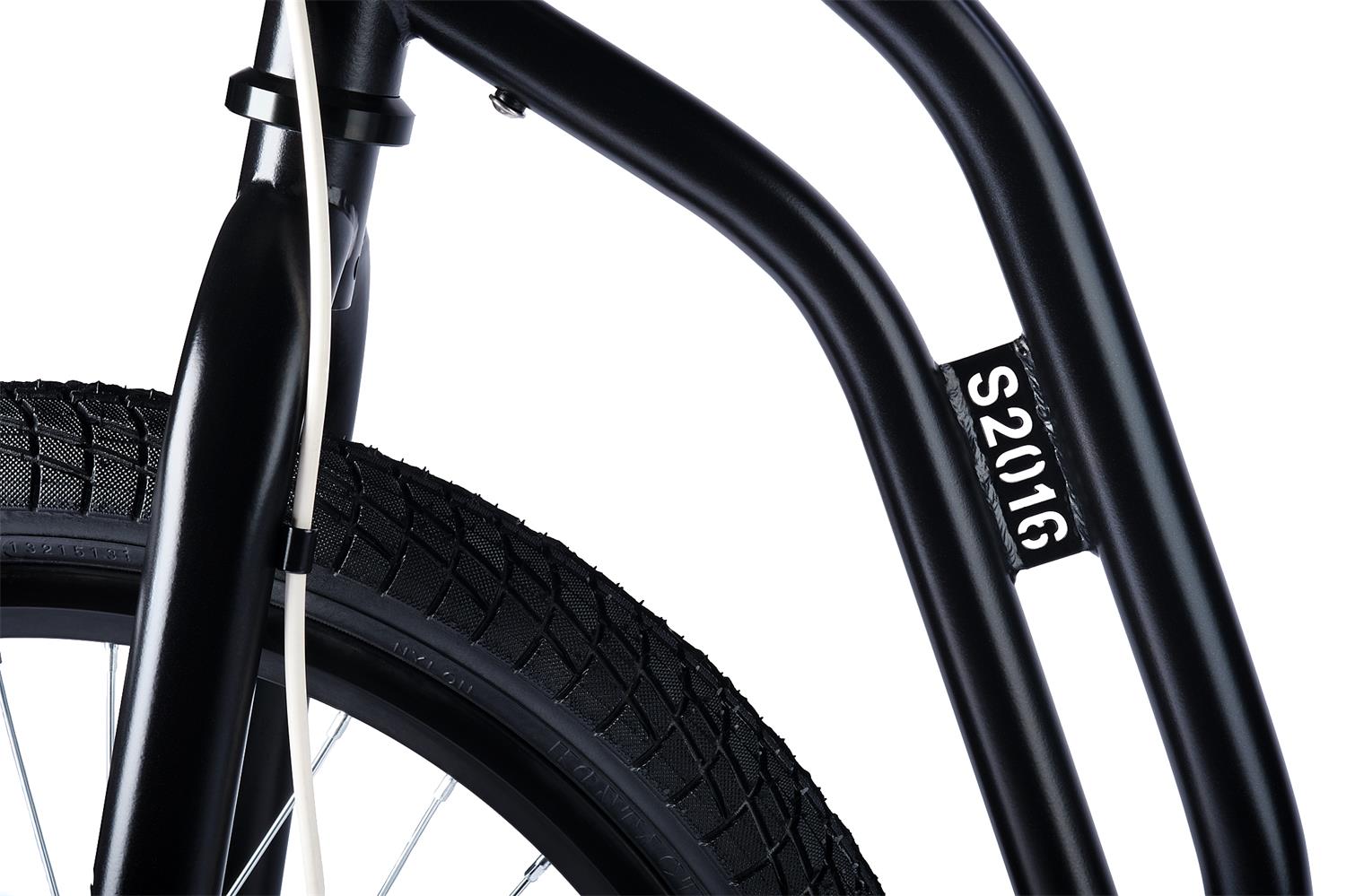

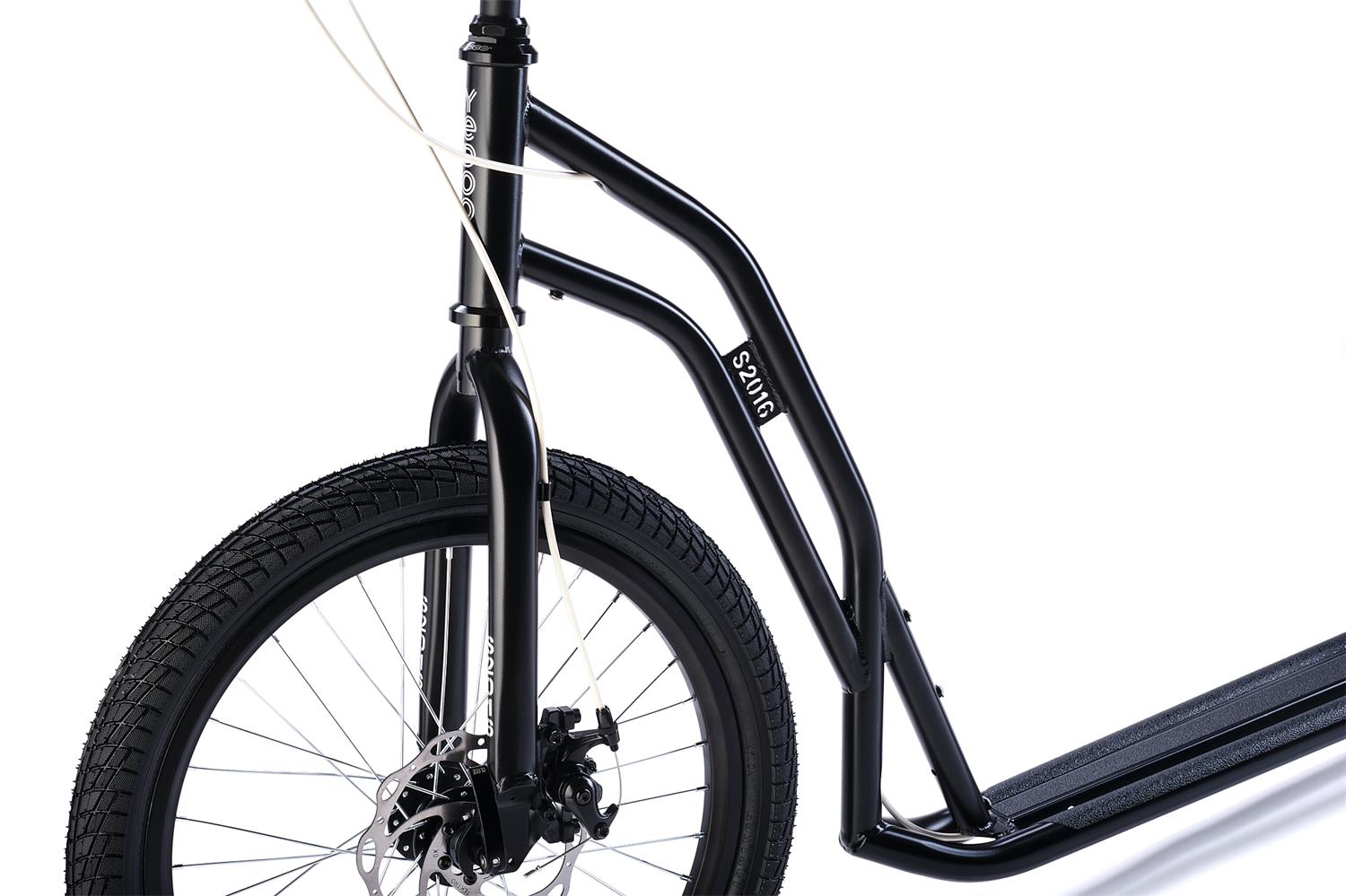

• Frame - YEDOO Hi-ten ocel
• Fork - YEDOO Hi-ten steel
• Stem - ZOOM alloy
• Handlebar - YEDOO Cross alloy
• Grips - Ergonomic (with anti-rotation lock)
• Headset - NECO alloy 1 1/8" threaded

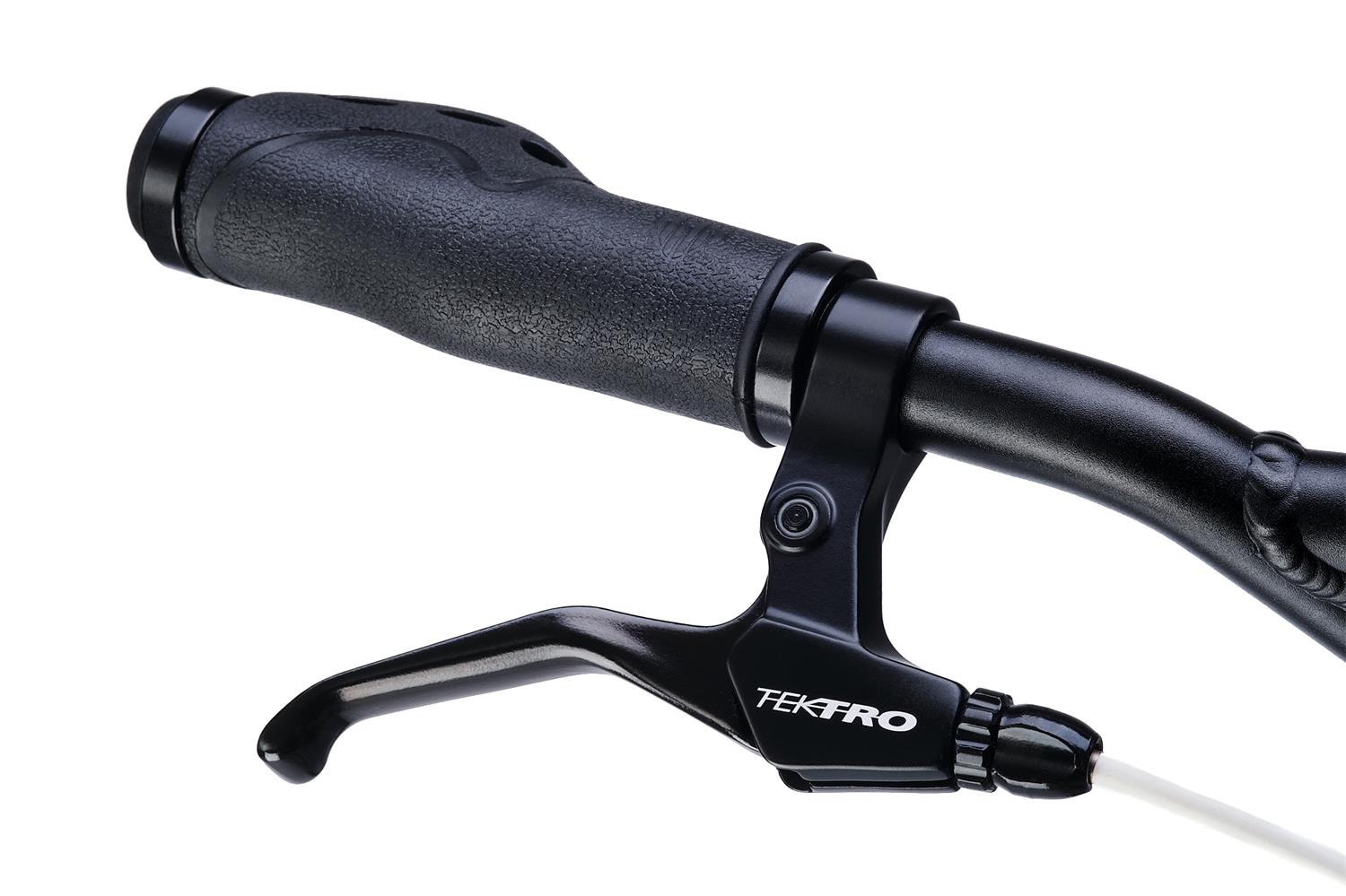

• Brake levers - TEKTRO ML 520 alloy

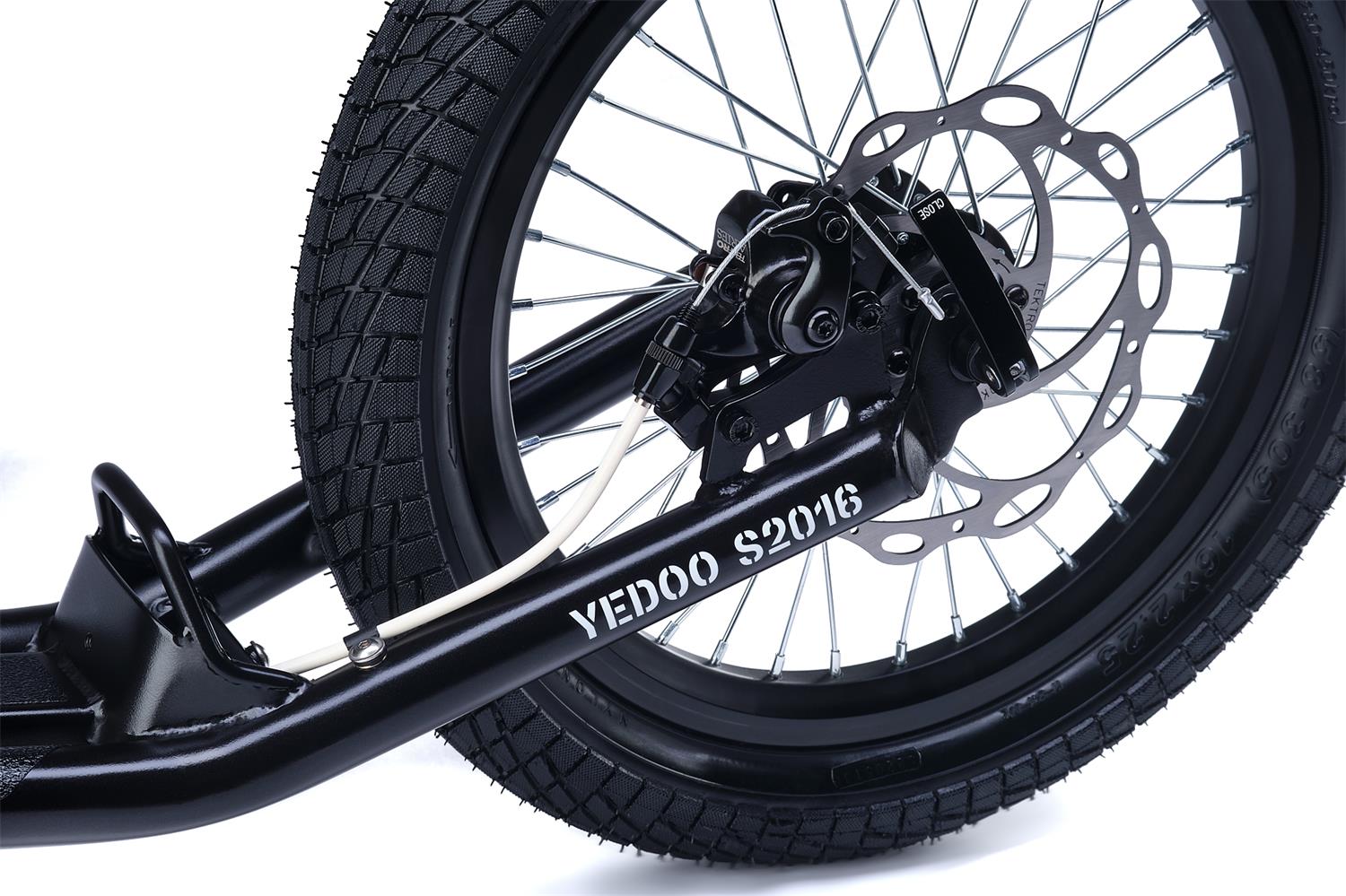

• Brakes (front/rear) - 2x Disc TEKTRO MD-M300 ARIES
• Wheels - 20" / 16"
• Rims - HJC alloy double wall
• Hubs - NOVATEC disc
• Hub width (front/rear) - 100 / 100 mm // 3.9 / 3.9 in
• Preparation for using flat screws (front/ rear) - No / No
• Bearings - Industrial
• Quick-release levers (front/rear) - Yes / Yes
• Tyres (front/rear) - KENDA 20x2,25 / 16x2,25
• Max. inflation (front/rear) - 4,6 bar / 4,6 bar

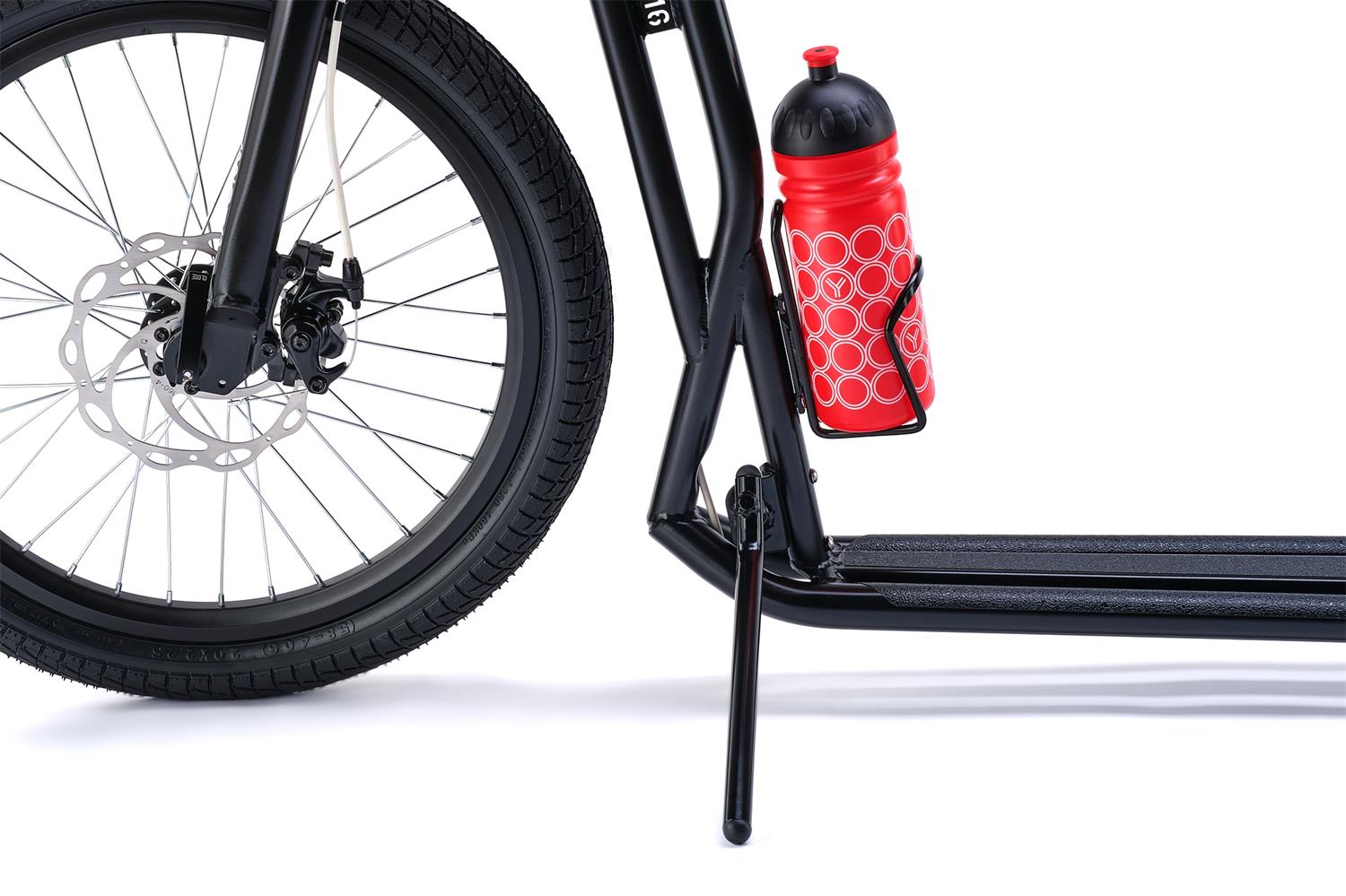

• Preparation for bottle holder - 1x
• Kickstand - Optional
• Reflective elements - No

Dimensions

• [1] Length - 151 cm / 59.4 in
• [2] Footboard - 40 cm / 15.7 in
• [3] Handlebar height - 94 - 100 cm / 37 - 39.4 in)
• [4] Width of handlebars - 64 cm / 25.2 in
• [5] Ride height (higher/lower position)* - 5,5 cm // 2.2 in
• [6] Distance between footboard and ground (higher/lower position)* - 8,3 cm // 3.3 in
• [7] Room for rider - 63 cm / 24.8 in

*Tolerance +-0.2 cm

• Documents, standards and certificates

• Manual

  Manual_Yedoo_Adult_scooters_2020_2016_1616_web.pdf

• Standard - ÄŒSN EN 14619

We don’t just brag that our products have performance and quality built to last – we’ve proved it by extending the full warranty to 3 YEARS! More

Yedoo frames are protected by registered EU industrial designs. The Yedoo brand, along with the trade names of each model, are trademark protected.

Change of technical parameters and components reserved.

Warnings and Safety Information:
For riding on roads and for riding in the dark, you must retrofit the scooter with safety features (lights, reflectors, etc.) in accordance with the regulations in force in your country. Follow the rules of the road, the principles of safe driving and wear personal protective equipment (helmet, cycling gloves, knee and elbow protectors, sturdy shoes, etc.). More information can be found in the Yedoo Manual (see download above).

Manufacturer:
INTREA-PIKO, spol. s.r.o. | Radlická 80 | 150 00 Prague 5 | info@yedoo.cz
