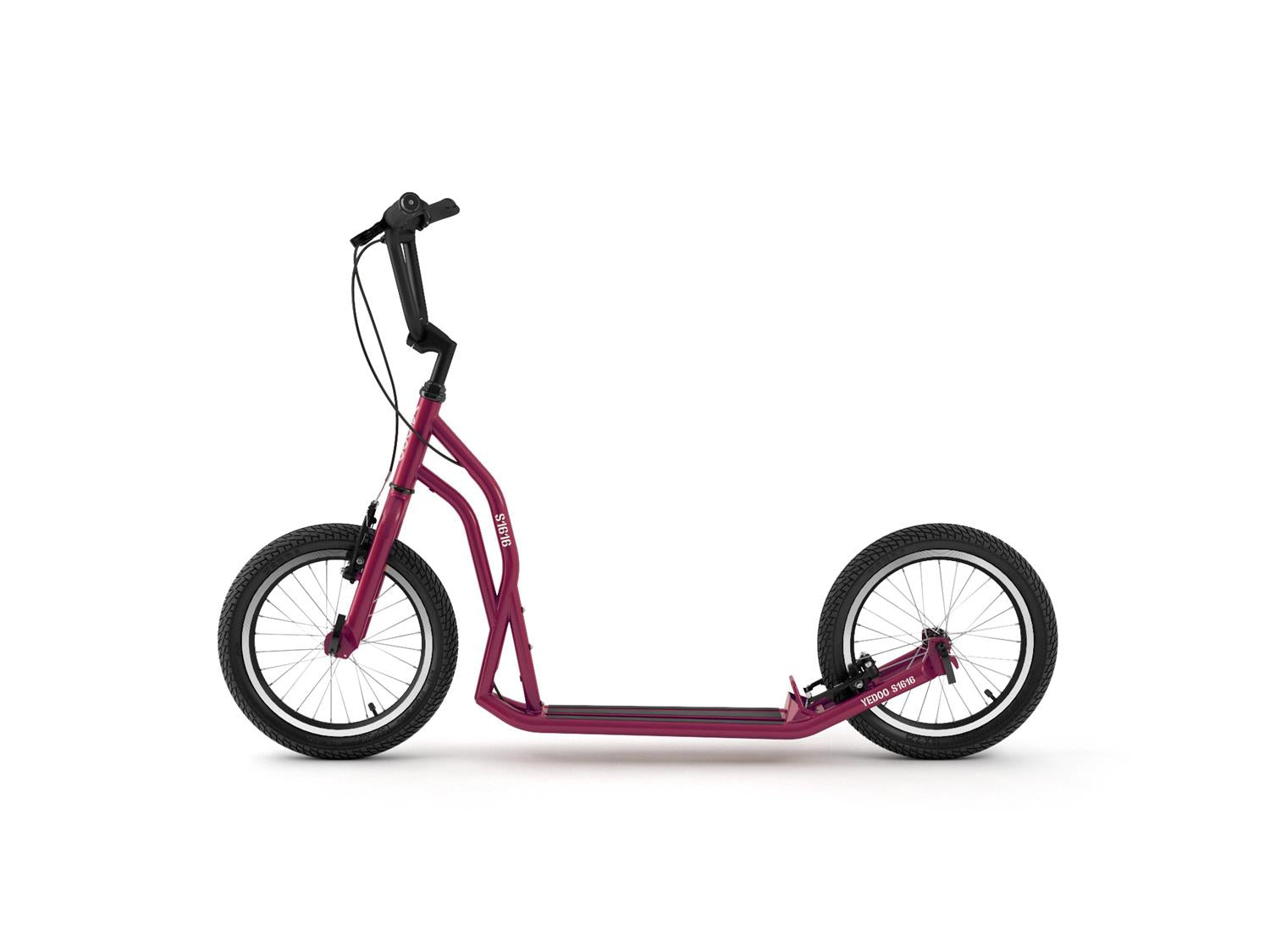

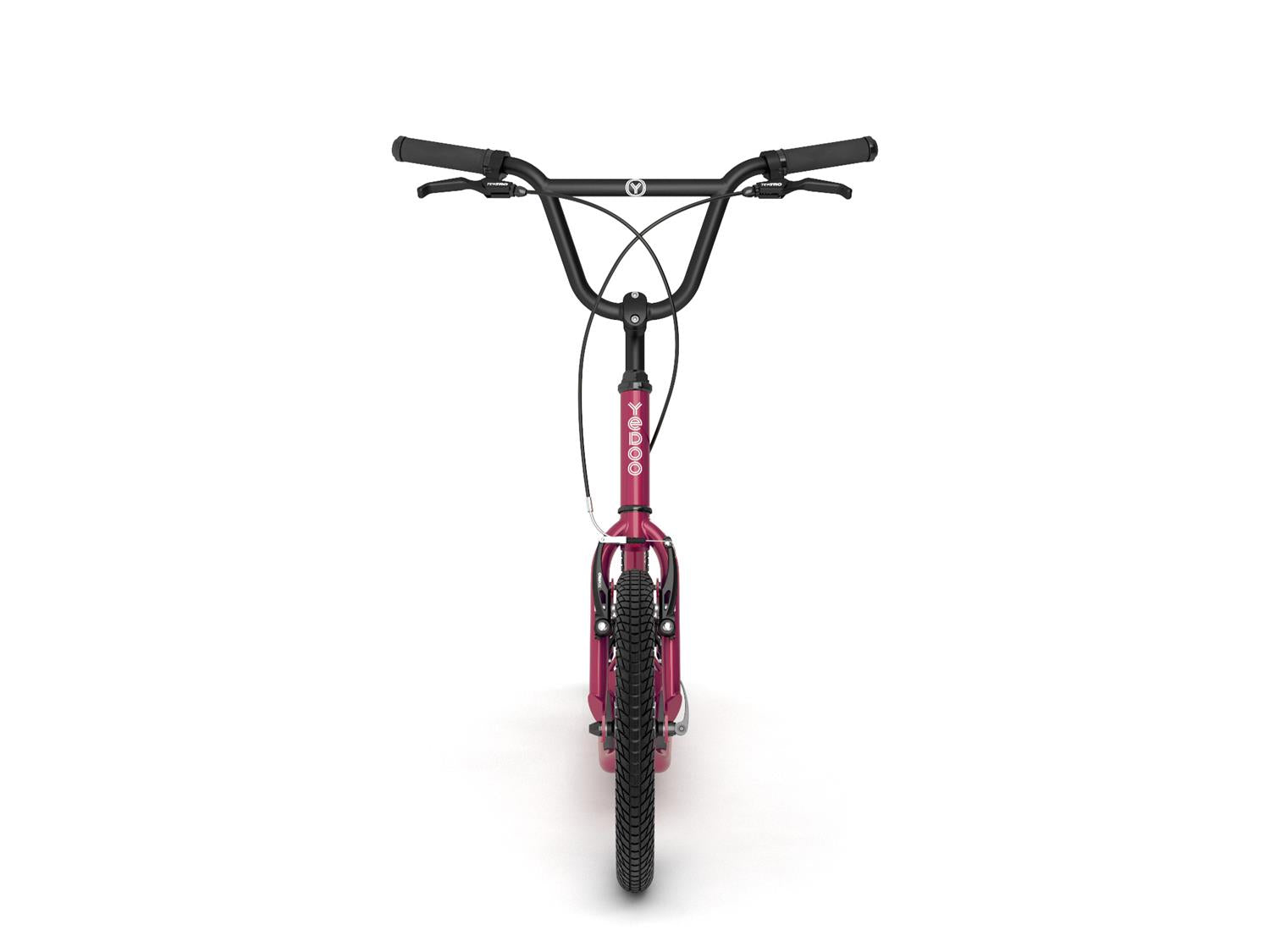

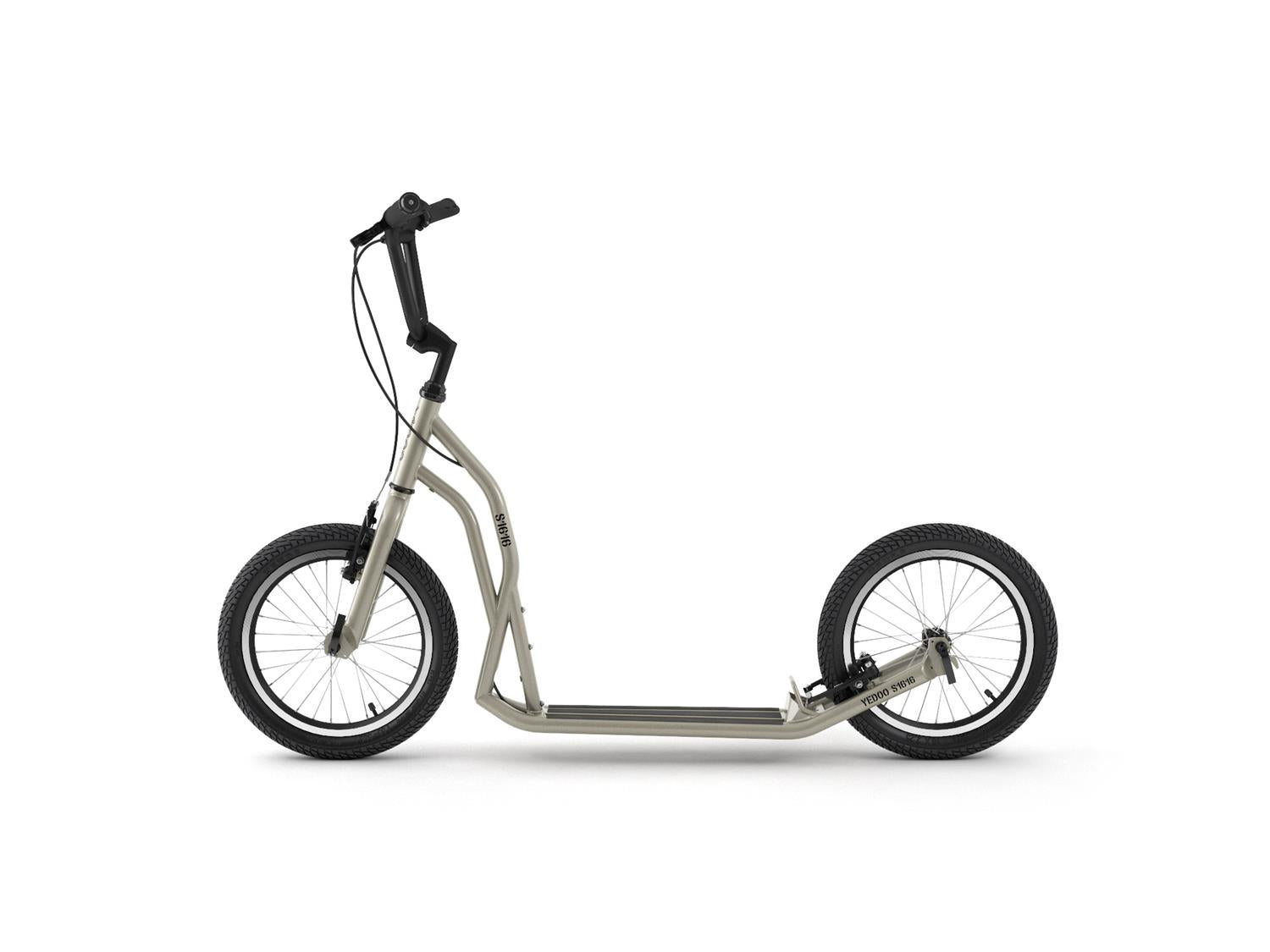

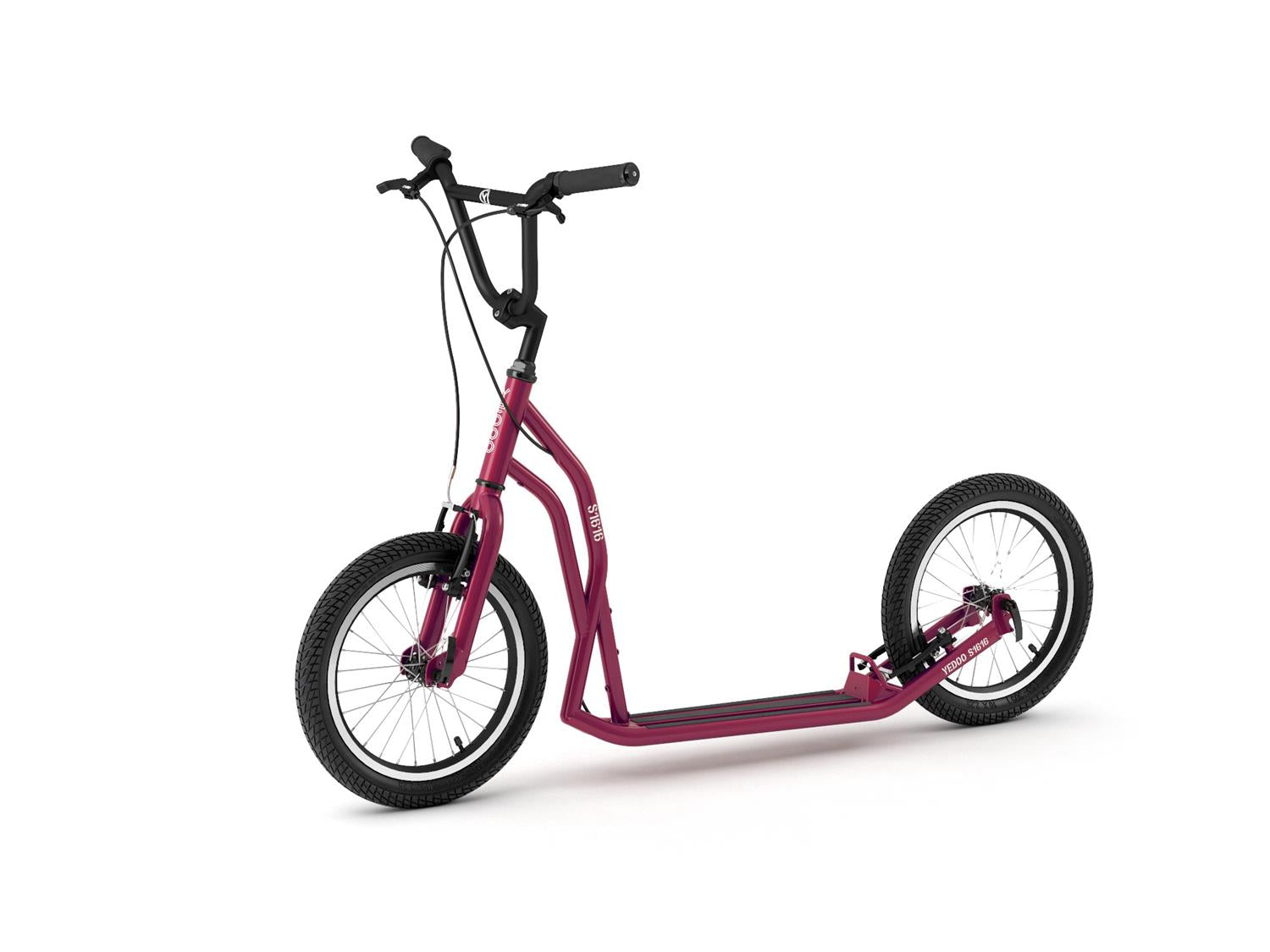

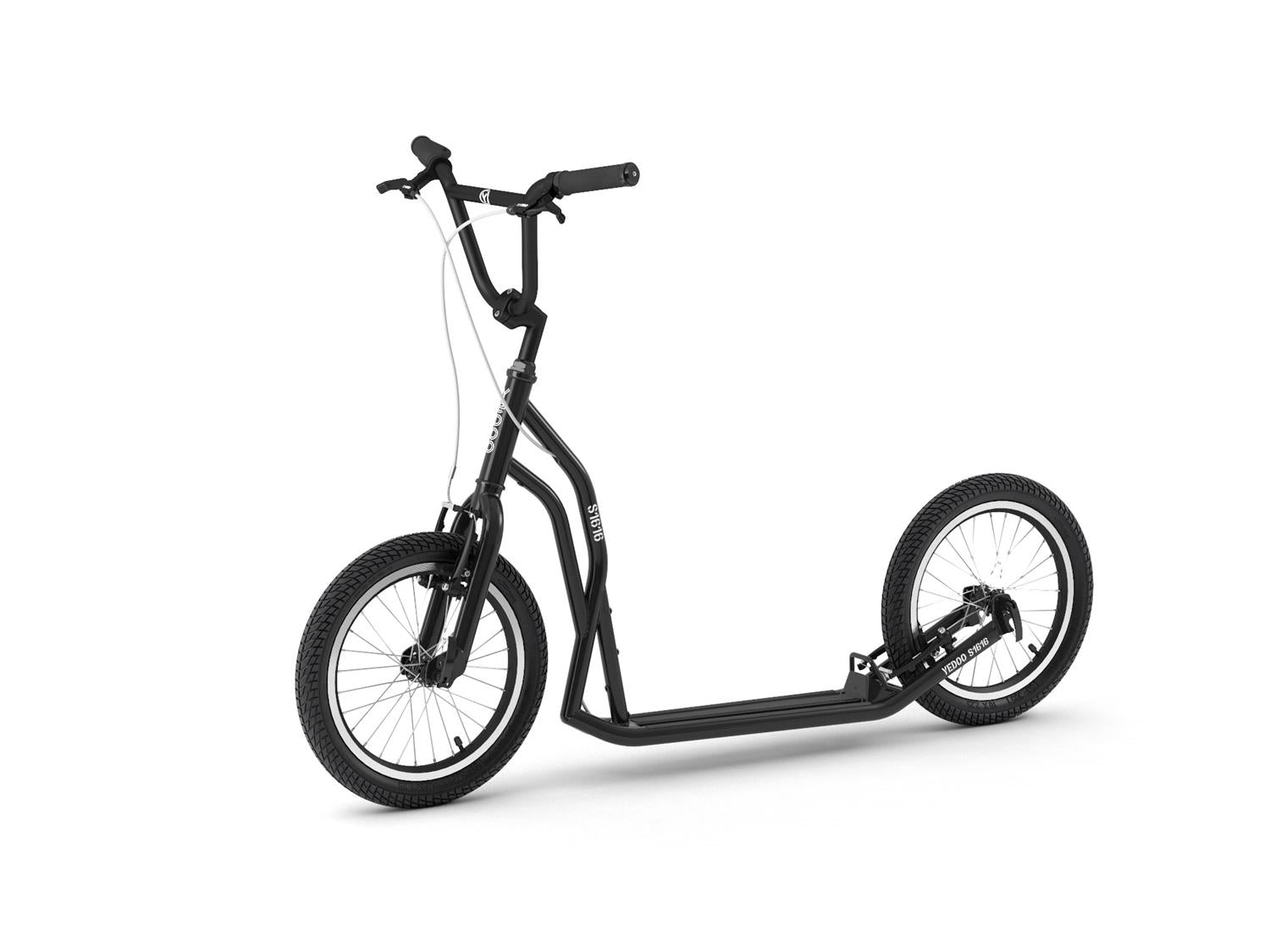

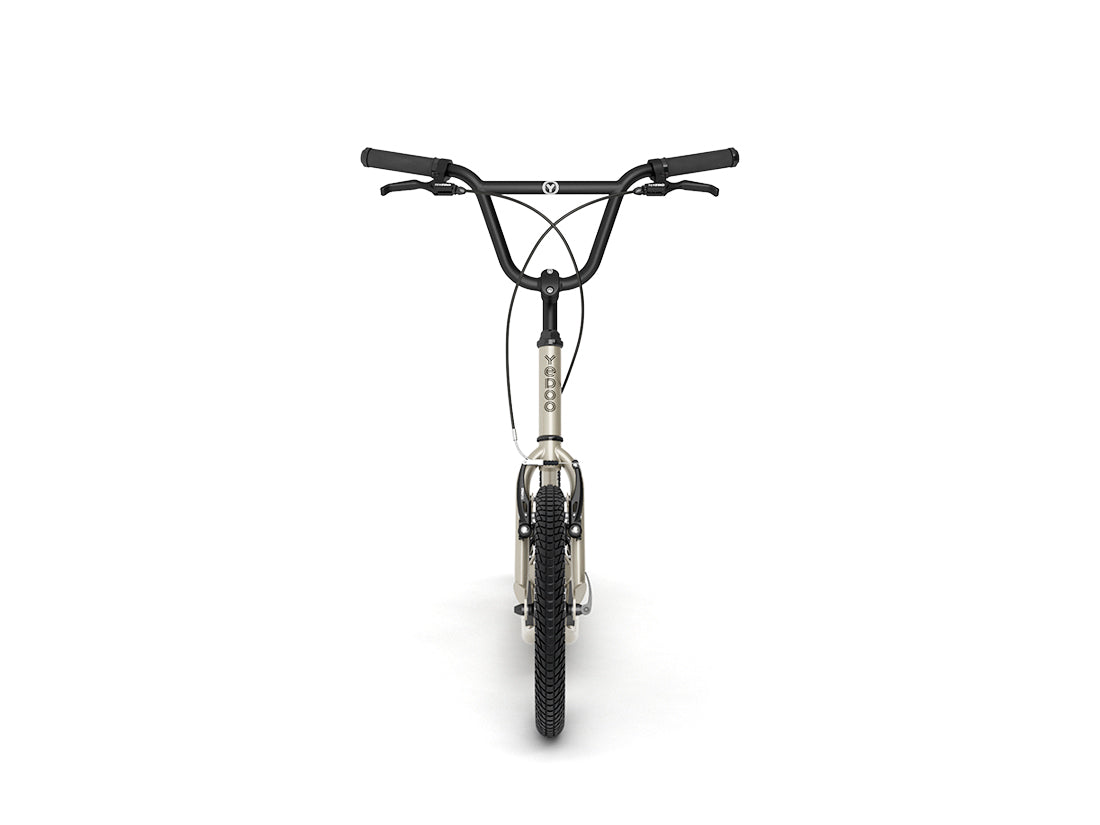

Yedoo S1616 Adult Scooter

A jewel that will pull you outdoors regardless of the weather. It fits into every opening in traffic and provides even smaller riders with due comfort and stability. Resistant but irresistible.

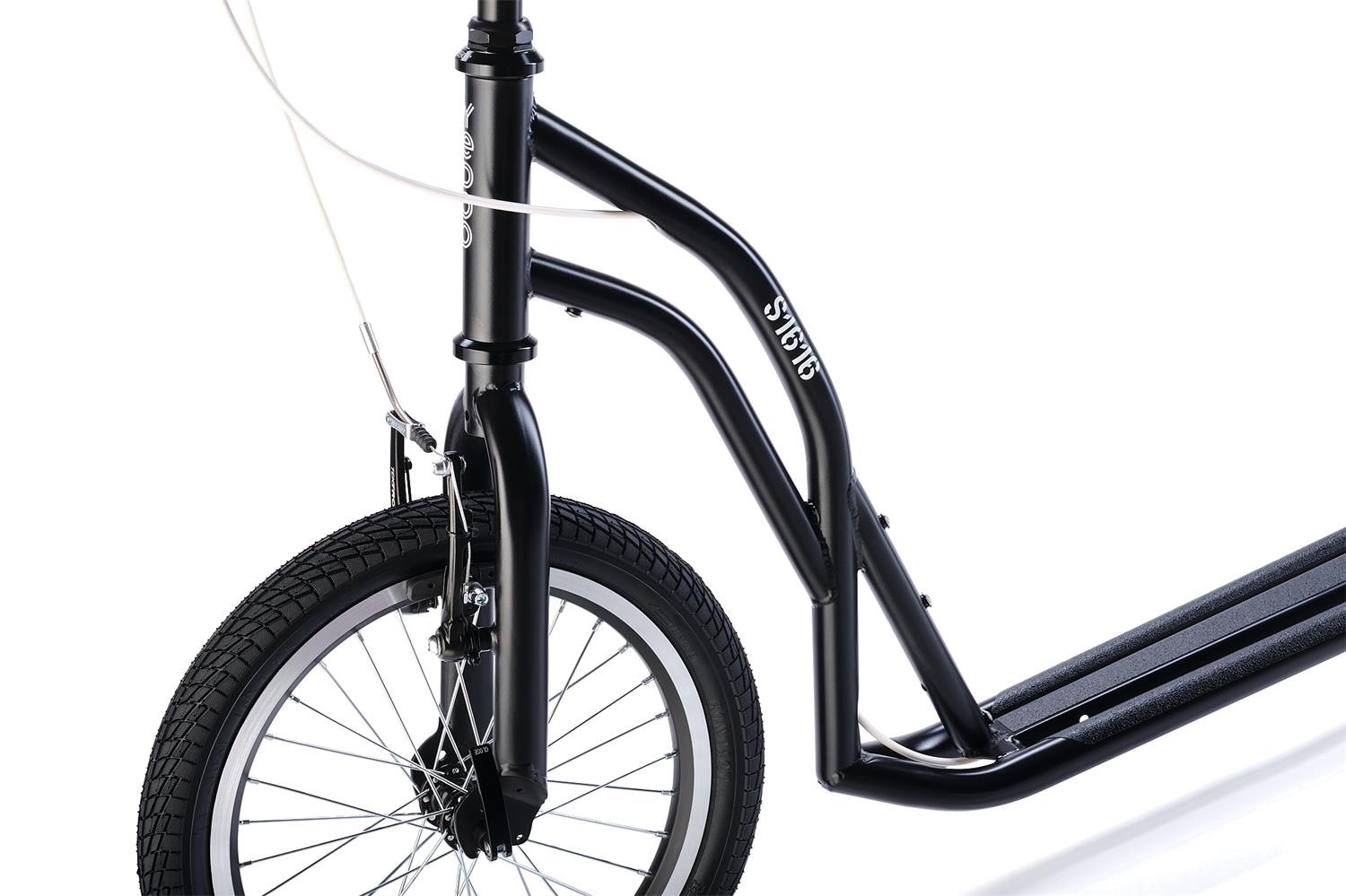

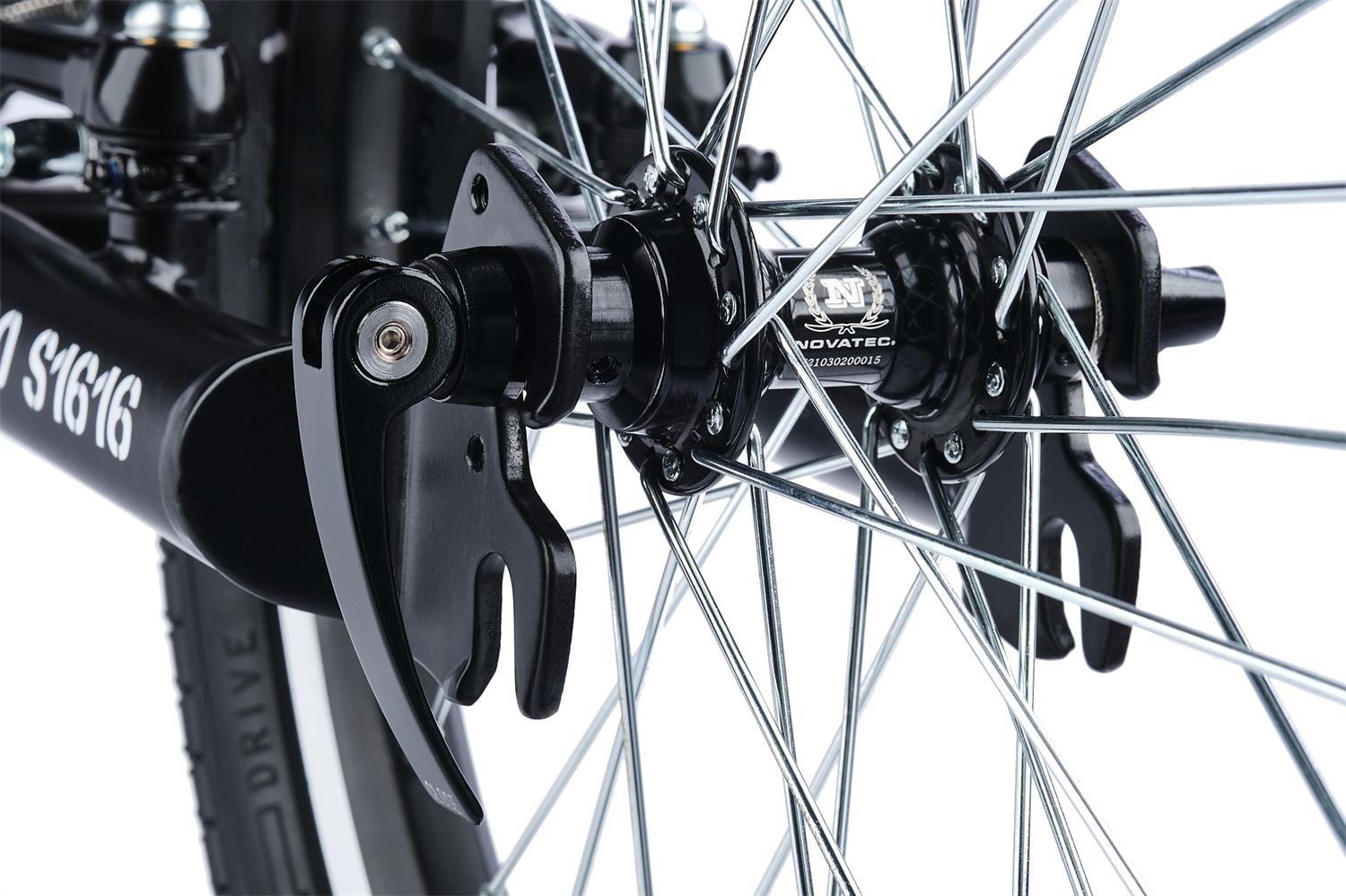

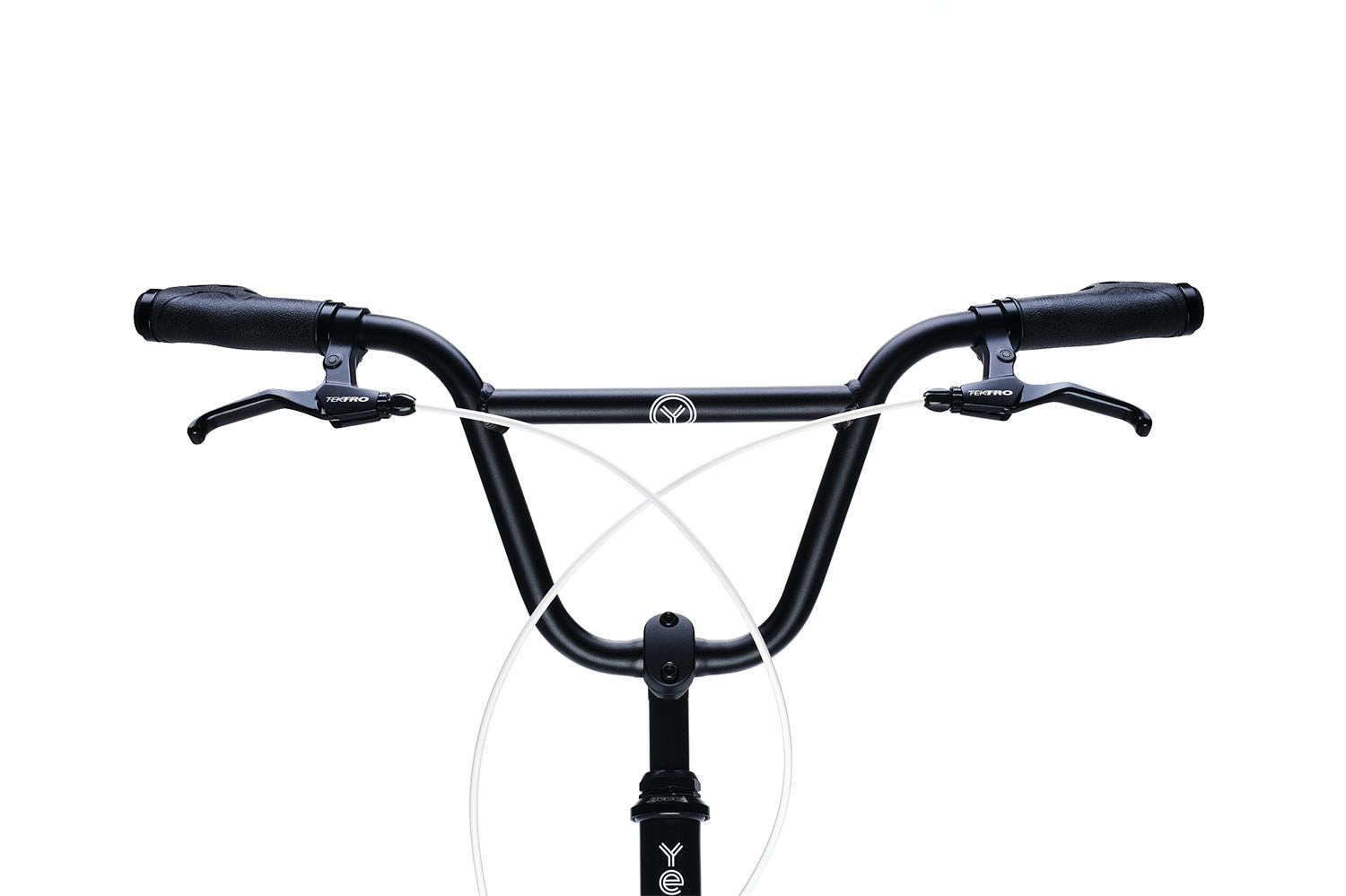

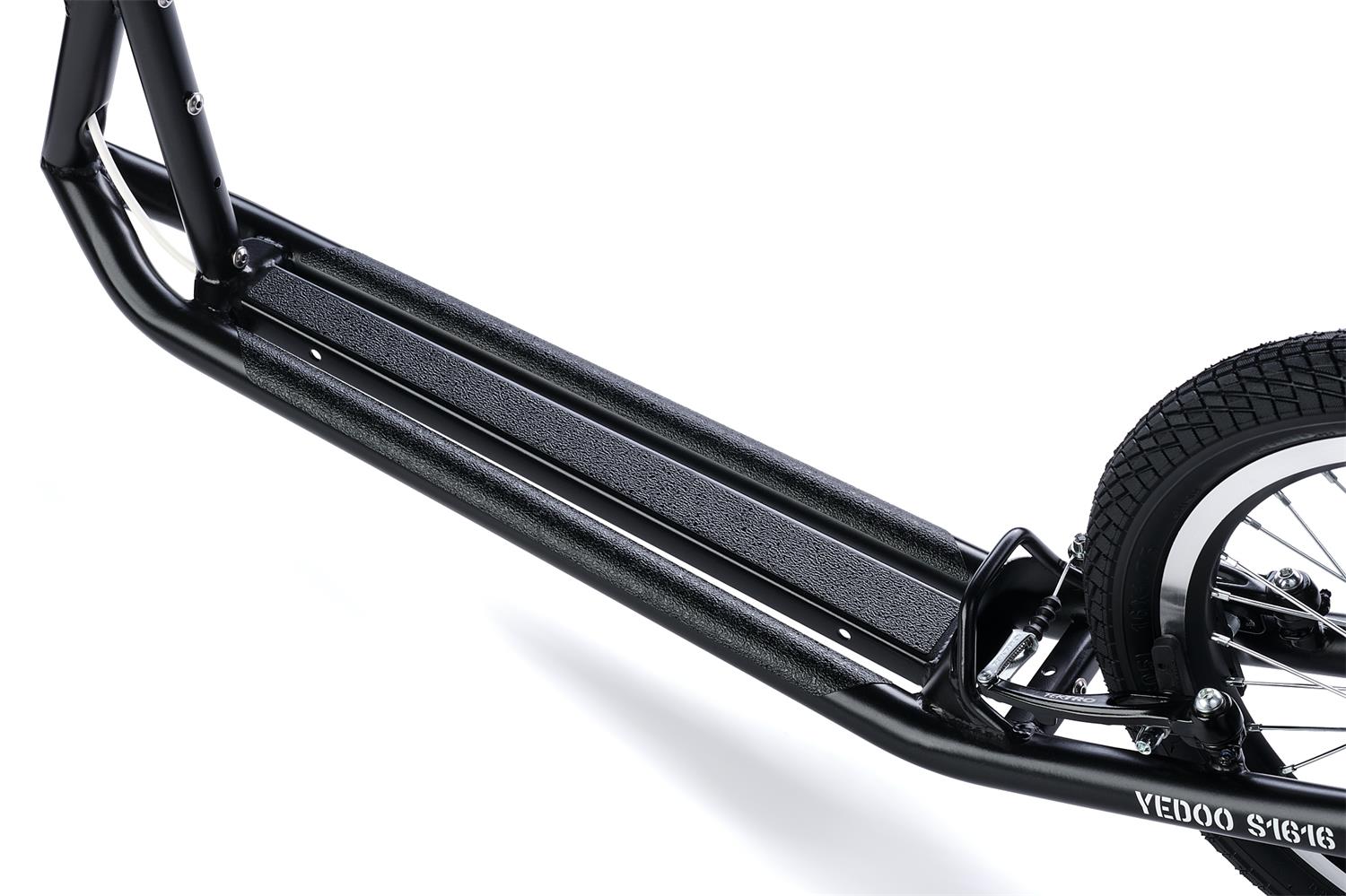

Originally Yedoo steel frame - Adjustable handlebars - Ergonomic grips and Tektro brake levers - Prepared for a stand and a bottle holder - ootboard with anti-slip surface - Dual position rear fork and quick-release levers

Technical details

• Loading limit - 150 kg / 330 lb
• Min. height of rider - 140 cm / 55 in
• Weight (with/without kickstand) - 8,4 kg / 18.5 lb
• Box size - 101 x 15,5 x 55 cm (39.8 - 6.1 x 21.7 in)
• Box weight - 10,5 kg / 23.1 lb
• Frame - YEDOO Hi-ten steel
• Fork - YEDOO Hi-ten steel
• Stem - ZOOM alloy/steel
• Handlebar - YEDOO BMX alloy

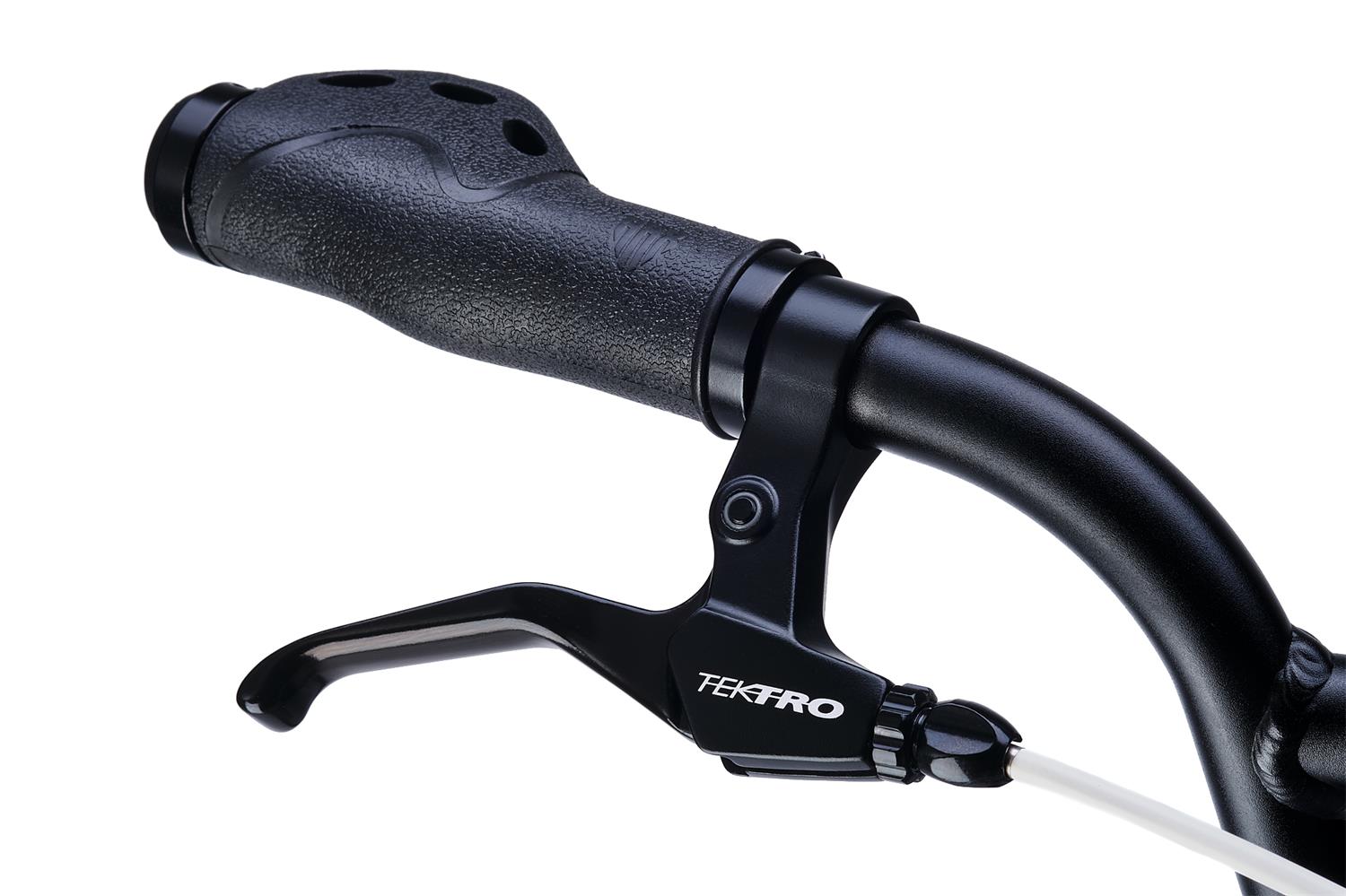

• Grips - Ergonomic (with anti-rotation lock)
• Headset - NECO alloy 1 1/8" threaded
• Brake levers - TEKTRO ML 520 alloy
• Brakes (front/rear) - "V" TEKTRO alloy /"V" TEKTRO alloy
• Wheels - 16" / 16"
• Rims - HJC alloy double wall + CNC milled braking surface
• Hubs - NOVATEC alloy
• Hub width (front/rear) - 74 / 74 mm // 2.9 / 2.9 in
• Preparation for using flat screws (front/ rear) - Yes / Yes
• Bearings - Industrial
• Quick-release levers (front/rear) - Yes / Yes
• Tyres (front/rear) - KENDA
• Max. inflation (front/rear) - 4,6 bar / 4,6 bar

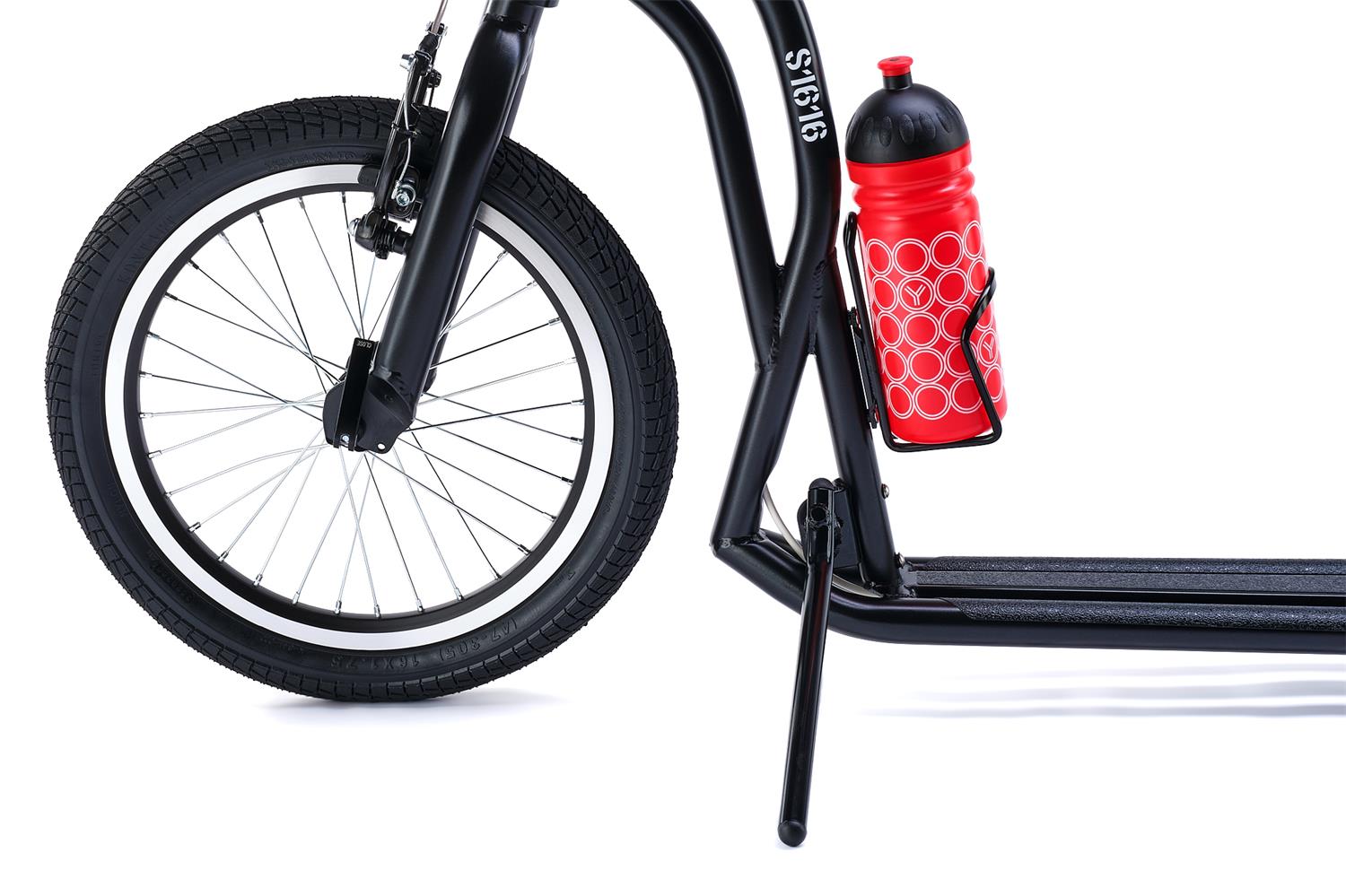

• Preparation for bottle holder - 1x
• Kickstand - Optional
• Reflective elements - No

Dimensions

• [1] Length - 138 cm / 54.3 in

• [2] Footboard - 40 cm / 15.7 in

• [3] Handlebar height - 90 - 100 cm / 35.4 - 39.4 in

• [4] Width of handlebars - 64 cm / 25.2 in

• [5] Ride height (higher/lower position)* - 4,0 / 6,0 cm // 1.6 / 2.4 in

• [6] Distance between footboard and ground (higher/lower position)* - 6,8 / 8,8 cm // 2.7 - 3.5 in

• [7] Room for rider - 60 cm / 23.6 in

*Tolerance +-0.2 cm

Documents, standards and certificates

• Manual

  Manual_Yedoo_Adult_scooters_2020_2016_1616_web.pdf

• ÄŒSN EN 14619

• Testing authority - SZÚ, s. p.

We don’t just brag that our products have performance and quality built to last – we’ve proved it by extending the full warranty to 3 YEARS! More

Yedoo frames are protected by registered EU industrial designs. The Yedoo brand, along with the trade names of each model, are trademark protected.

Change of technical parameters and components reserved.

Warnings and Safety Information:
For riding on roads and for riding in the dark, you must retrofit the scooter with safety features (lights, reflectors, etc.) in accordance with the regulations in force in your country. Follow the rules of the road, the principles of safe driving and wear personal protective equipment (helmet, cycling gloves, knee and elbow protectors, sturdy shoes, etc.). More information can be found in the Yedoo Manual (see download above).
