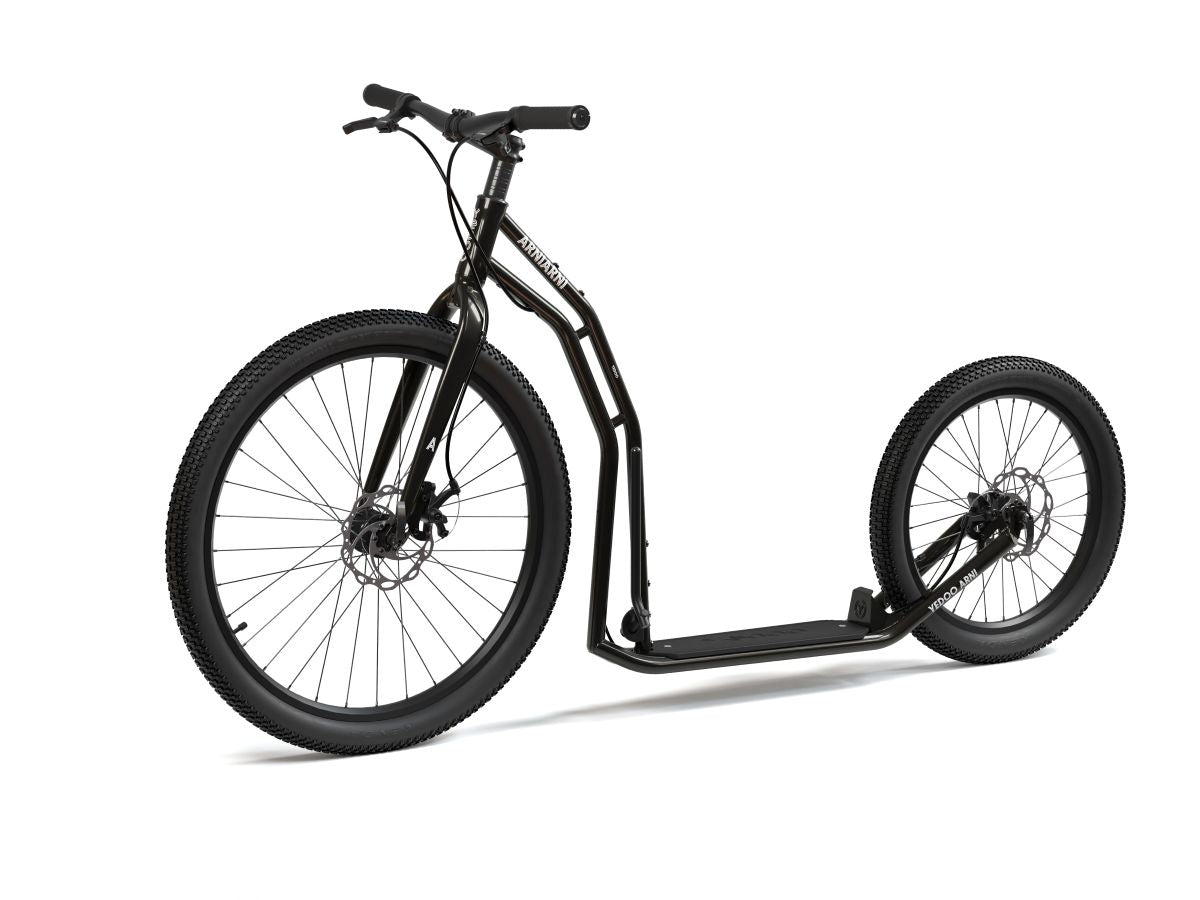

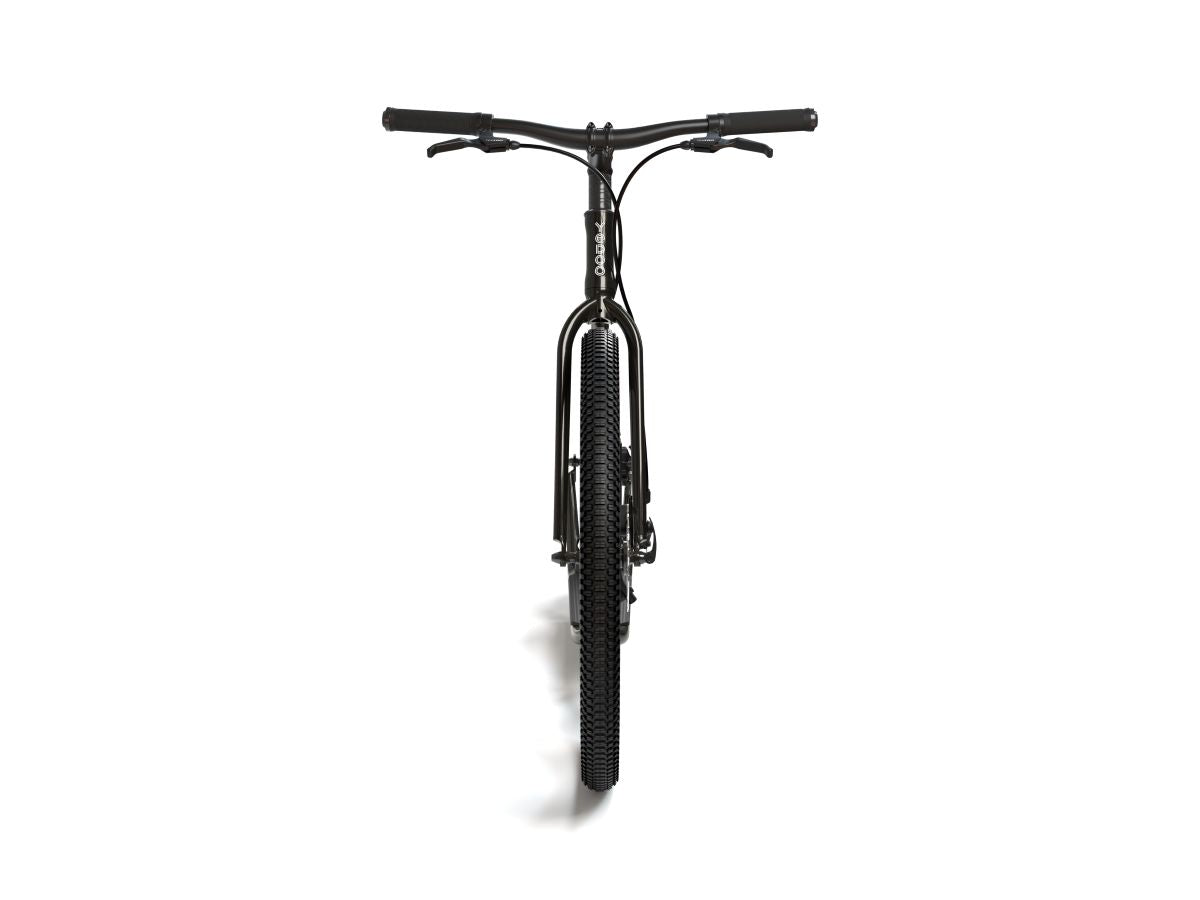

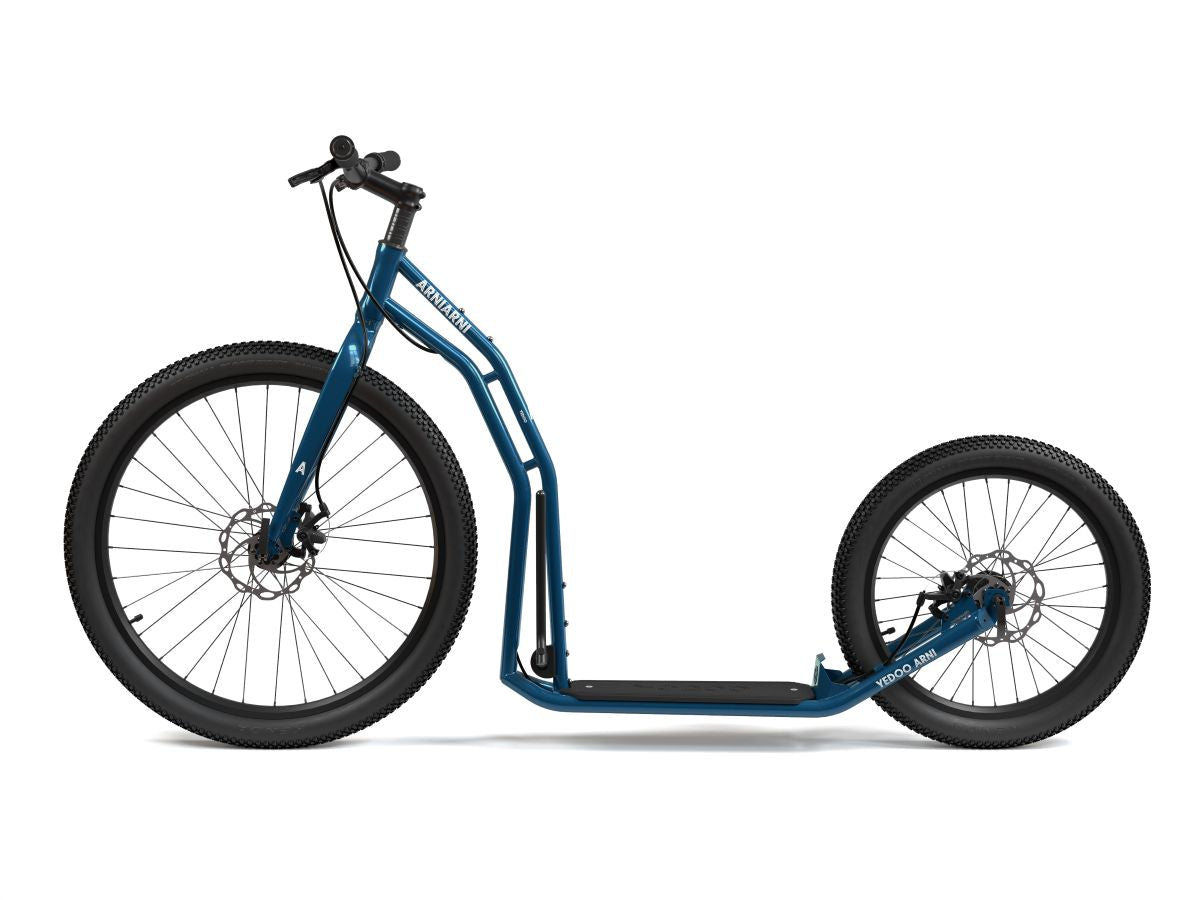

Yedoo Arni Y40 Disc Adult Scooter
It was named after a wild Asian buffalo. It is equally resilient and dares to take on anything.
Due to robust tires and proven disc brakes, it can easily conquer any terrain and the elements. Mud, sand, snow? No problem! The ideal machine for tough riders, mushers, enduro enthusiasts, and anyone who wants to live life to the fullest.

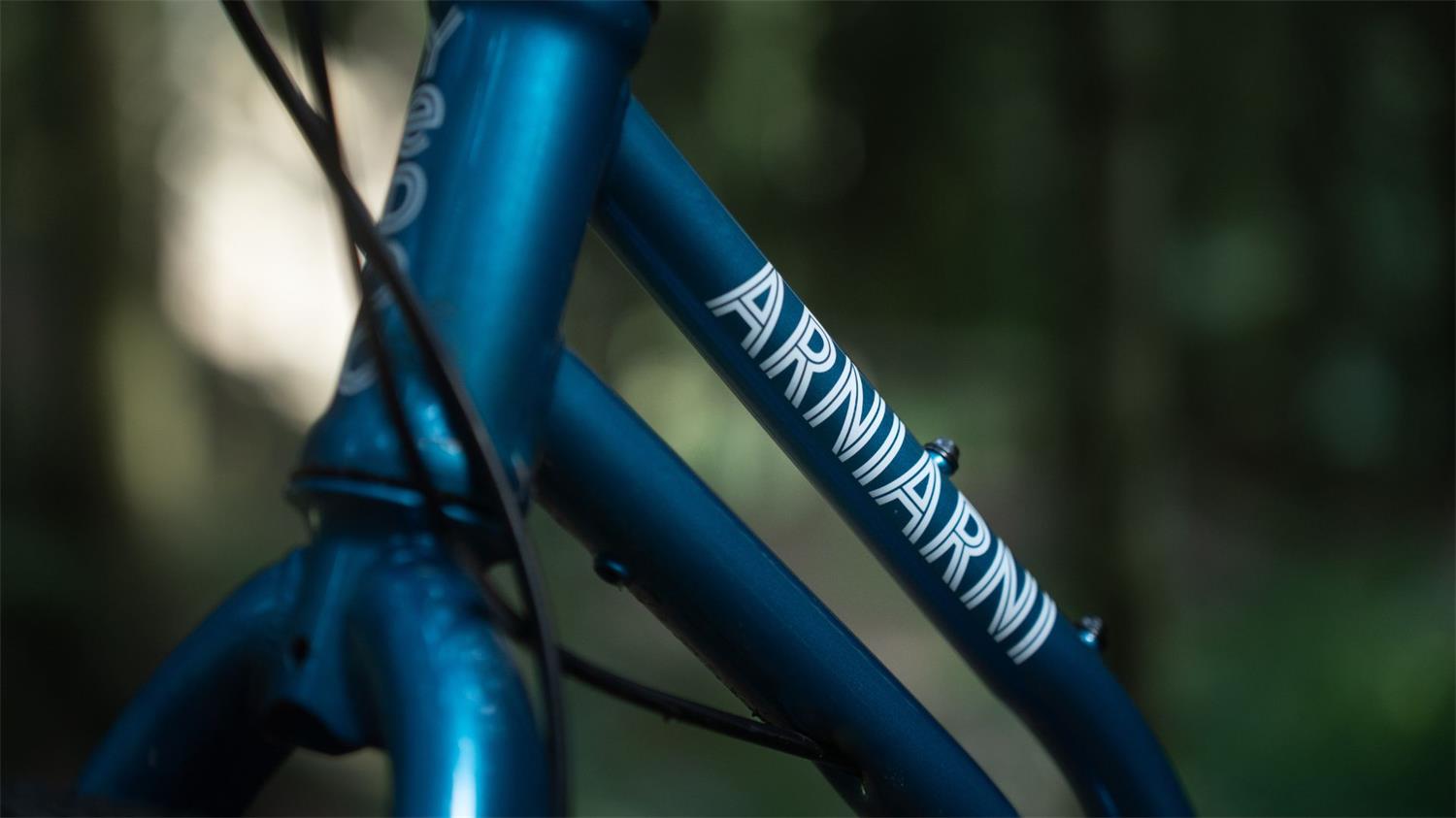

The durable steel frame - Yedoo’s original steel frame is both strong and compact. It will support you when jumping over potholes or curbs and won’t hesitate even under a load of 150 kg. While the steel frame provides the models with strength and optimal stiffness, the aluminium components (handlebars, rims, stems, hubs) help reduce the overall weight.

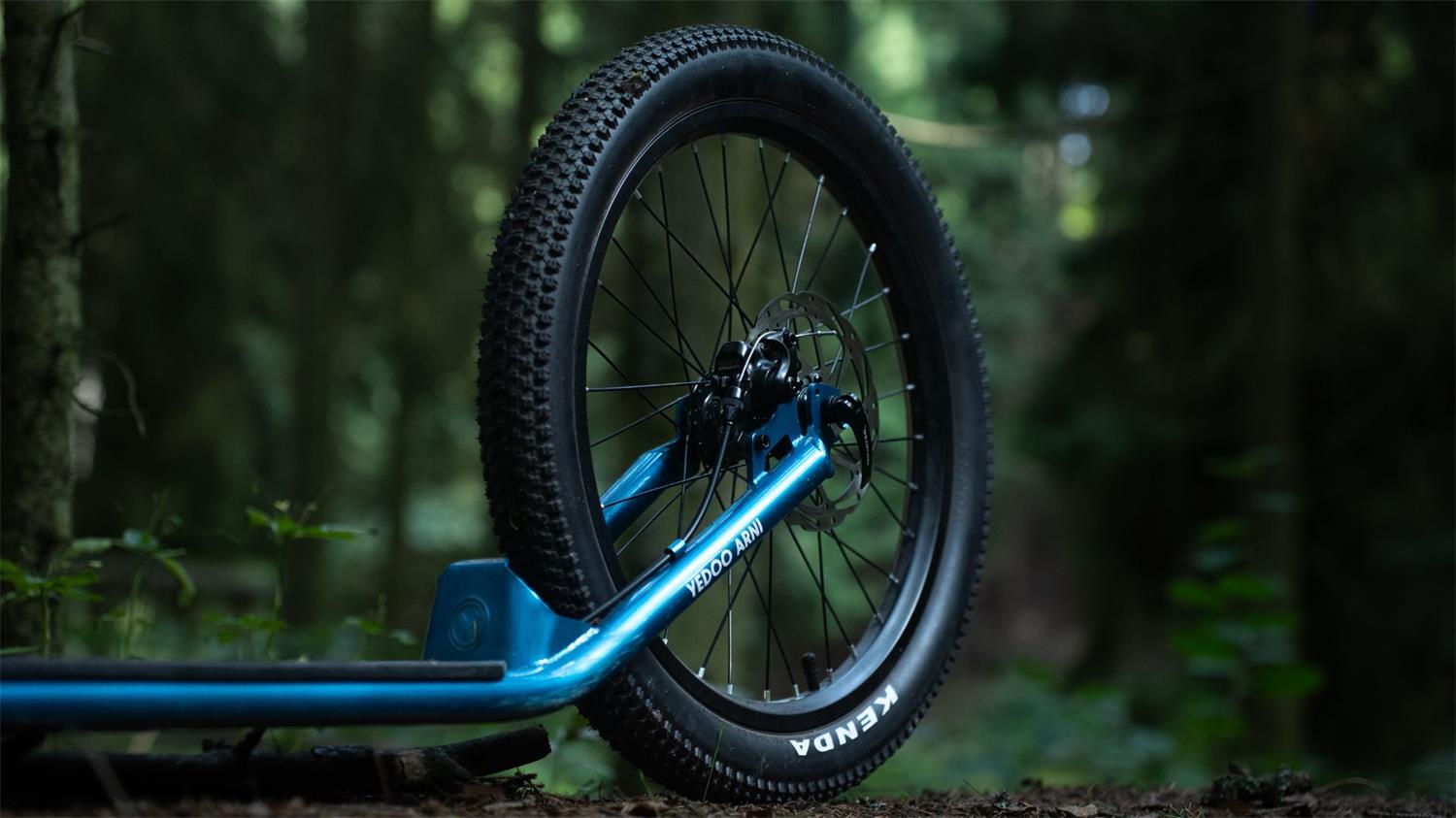

Robust tyres - The robust KENDA tyres with tread handle any terrain with ease. They make the scooter more stable and give you a surer, more confident ride — both in corners and over uneven surfaces.

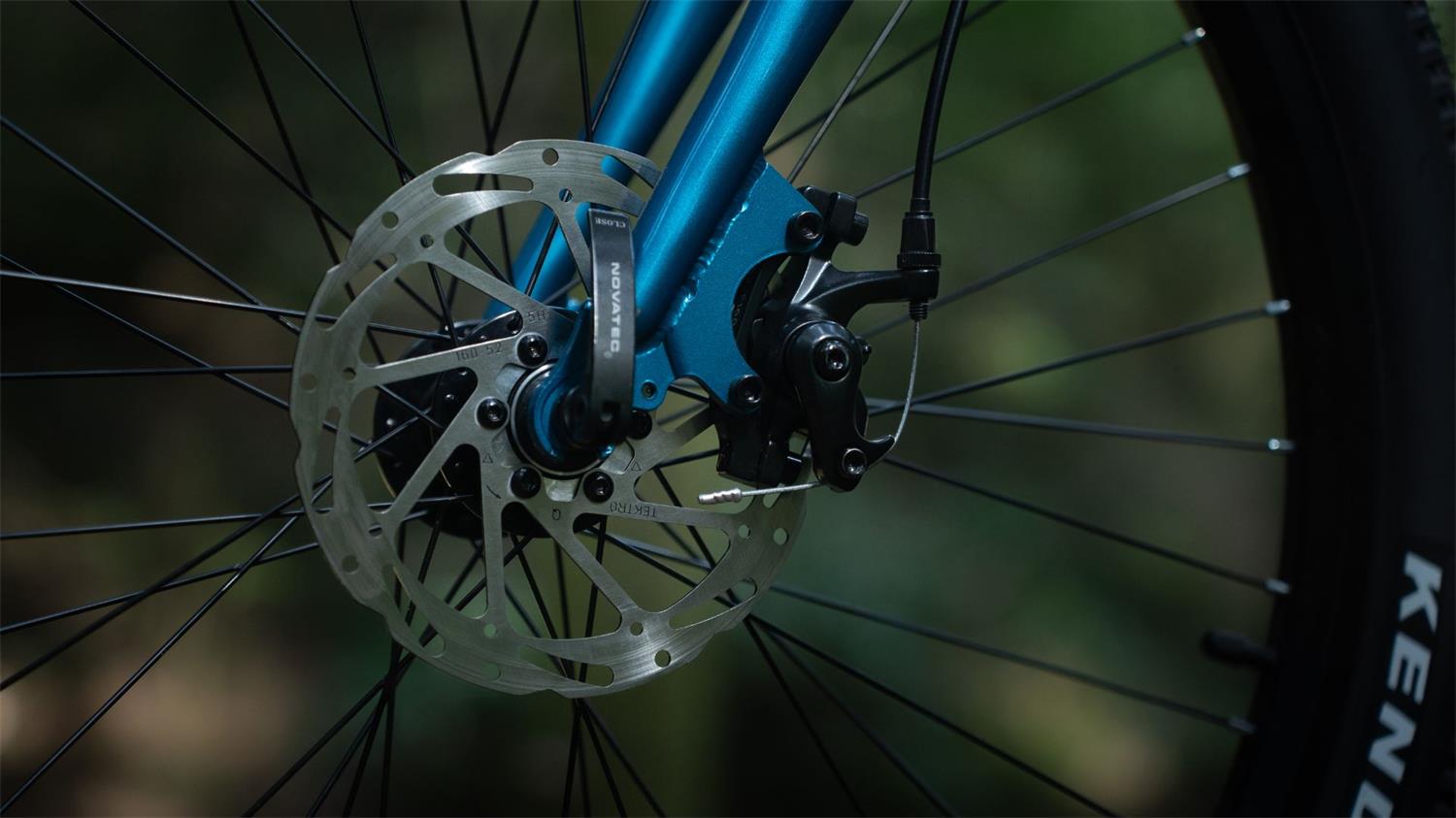

Disc brakes - They give the Arni scooter confidence and power — delivering reliable braking in all weather conditions, with durability to handle even more demanding rides. They offer higher and more consistent braking performance, no matter the terrain

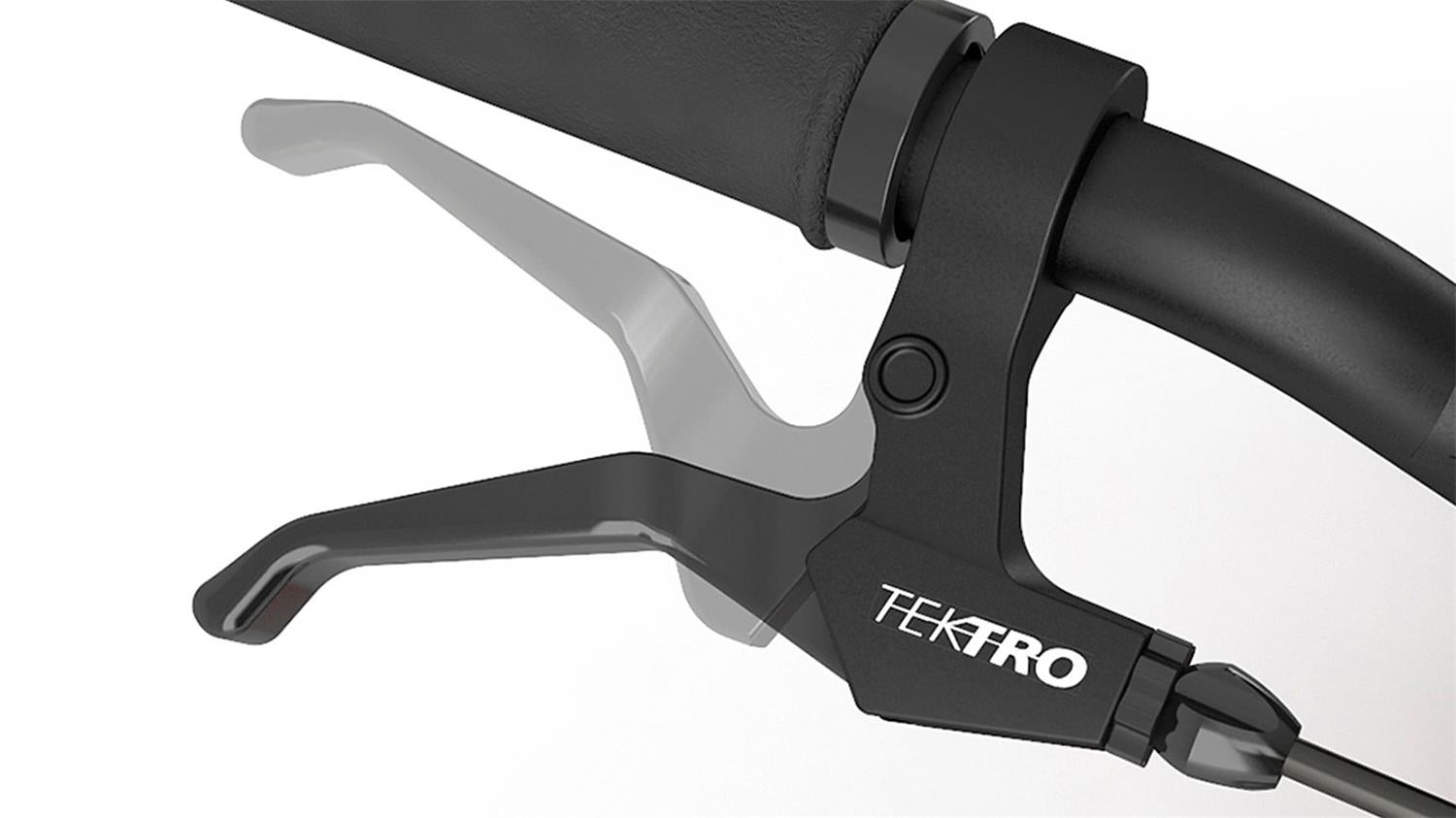

Tektro brake levers - Ergonomically shaped and pleasantly smooth to the touch.

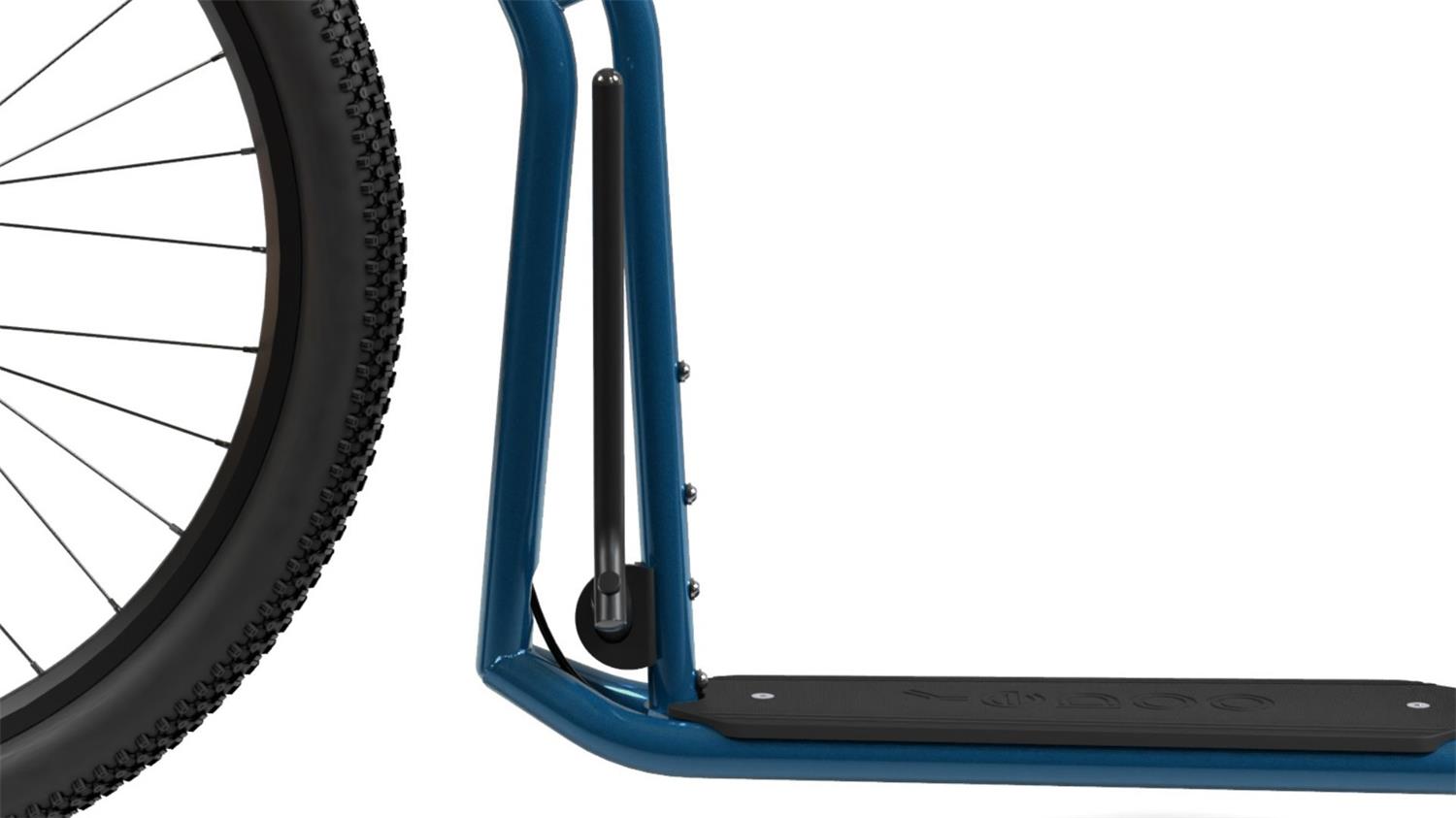

Integrated kickstand - The side kickstand is lightweight, strong, and fully integrated. It flips out easily, and when folded, it doesn’t interfere with the ride in any way. Parking the scooter works similarly to a motorcycle — simple, convenient, and very stable.
Technical details
- Loading limit - 150 kg
- Min. height of rider - 150 cm
- Weight (with/without kickstand) - 10,7 kg
- Box size - 128 x 80 x 18 cm
- Box weight - 14,1 kg
- Frame - YEDOO Hi-ten steel
- Fork - YEDOO Hi-ten steel
- Stem - YEDOO ALLOY 3D oversize
- Handlebar - Alloy oversize
- Grips - XHH anti-slip rubber
- Headset - Alloy 1 1/8" semi-integrated AHEAD
- Brake levers - TEKTRO ML 520 alloy
- Brakes (front/rear) - 2x Disc TEKTRO MD-M300 ARIES
- Wheels - 26" / 20"
- Rims - Alloy double wall
- Hubs - NOVATEC alloy
- Hub width (front/rear) - 100 / 100 mm
- Preparation for using flat screws (front/ rear) - No / No
- Bearings - Industrial
- Quick-release levers (front/rear) - Yes / Yes
- Tyres (front/rear) 0 KENDA Small Block Eight (60TPI, kevlar guard)
- Max. inflation (front/rear) - 4,6 bar / 4,6 bar
- Preparation for bottle holder - 2x
- Kickstand - Yedoo side steel
- Reflective elements - No
Dimensions
[1] Length - 176 cm / 69.2 in
[2] Footboard - 40 cm / 15.7 in
[3] Handlebar height - 92,5 - 99 cm / 36.4 - 38.9 in
[4] Width of handlebars - 68 cm / 26.7 in
[5] Ride height (higher/lower position)* -6,7 cm / 2.6 in
[6] Distance between footboard and ground (higher/lower position)* - 10 cm // 3.9 in
[7] Room for rider - 72 cm / 28.3 in
*Tolerance +-0.2 cm
Documents, standards and certificates
Manual
We don’t just brag that our products have performance and quality built to last – we’ve proved it by extending the full warranty to 3 YEARS!
Warnings and Safety Information:
For riding on roads and for riding in the dark, you must retrofit the scooter with safety features (lights, reflectors, etc.) in accordance with the regulations in force in your country. Follow the rules of the road, the principles of safe driving and wear personal protective equipment (helmet, cycling gloves, knee and elbow protectors, sturdy shoes, etc.). More information can be found in the Yedoo Manual (see download above).
Manufacturer:
INTREA-PIKO, spol. s.r.o. | Radlická 80 | 150 00 Prague 5 | info@yedoo.cz
Specification subject to change.
