Wethepeople Arc Frame

Regular price $829.00
By WTP

WETHEPEOPLE ARC FRAME

Designed in collaboration with new-school tech powerhouse Murray Loubser, the all-new Wethepeople ARC Frame is a true embodiment of style, precision, and innovation. Built to tackle the streets and beyond, this frame represents a seamless blend of strength and agility, just like Murray's unique riding style. Blending the geometry and features of Murray’s favourite Wethepeople frames, the ARC Frame uses a shorter wheelbase and slacker seat tube angle to create a bike that is as nimble as it is tough. With meticulous attention to detail, the ARC Frame incorporates reinforced hydroformed tubing, thicker dropouts, and subtle CNC artwork, ensuring durability without sacrificing the sleek, streamlined appearance. A true representation of the progression of street riding.

SPECIFICATIONS

Tubing Butted, Japenese Seamless 4130 Chromoly Tubing
Bottom Bracket 74mm Mid Size
Head Tube 127mm, Offset
Drop Outs

7.5mm investment cast with integrated chain tensioners, heat-treated 4130 crmo

Brakes Brakeless Frame
Weight 2.54kg (20.75")


FEATURES





  • Murray Loubser signature frame
  • responsive and technical street frame
  • hydroformed top tube and down tube for superior strength and stiffness
  • short 12.75” chain stay and steeper 76.1 degree headtube for reduced wheelbase

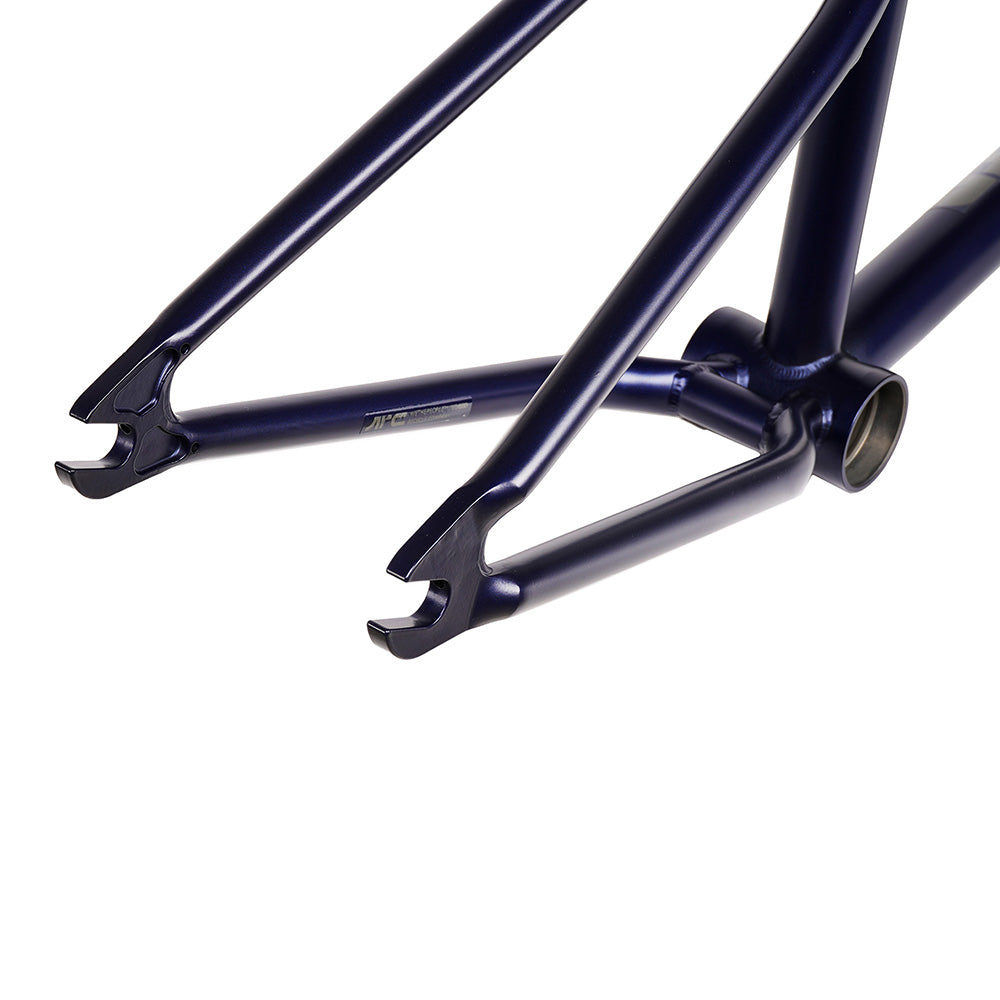

  • smaller dropout shape for no overhang with pegs for smoother grinds
  • slacker 70 degree seat tube angle creates shorter reach
  • larger 1.8mm welding at head tube
  •  extra thick double butted top tube
  • box section seat and chain stay braces for increased stiffness

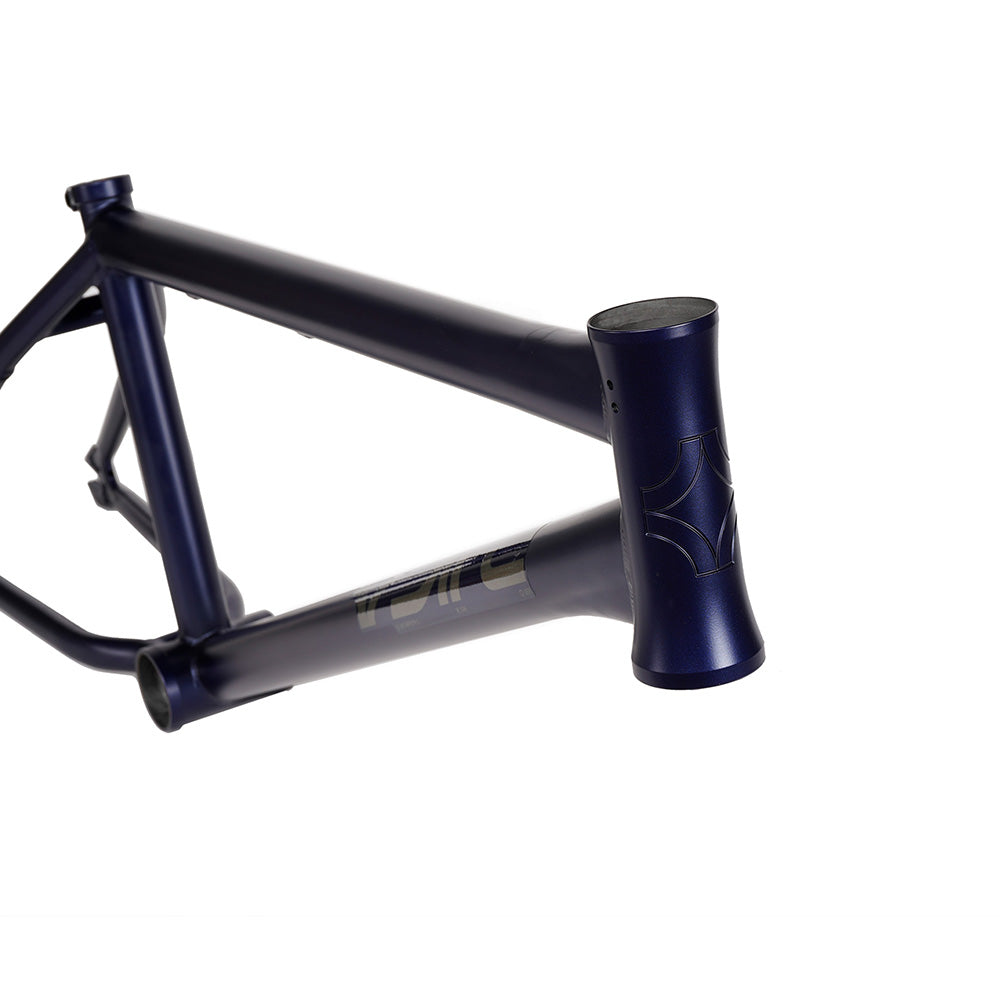

  • CNC detailing on head tube and seat stay bridge
  • ovalized chain stays for increased tire & sprocket clearance
  • wider rear triangle allows clearance for a 2.5" tire
  • investment cast seat clamp





Stock Item
