Surly Sorceress Frame

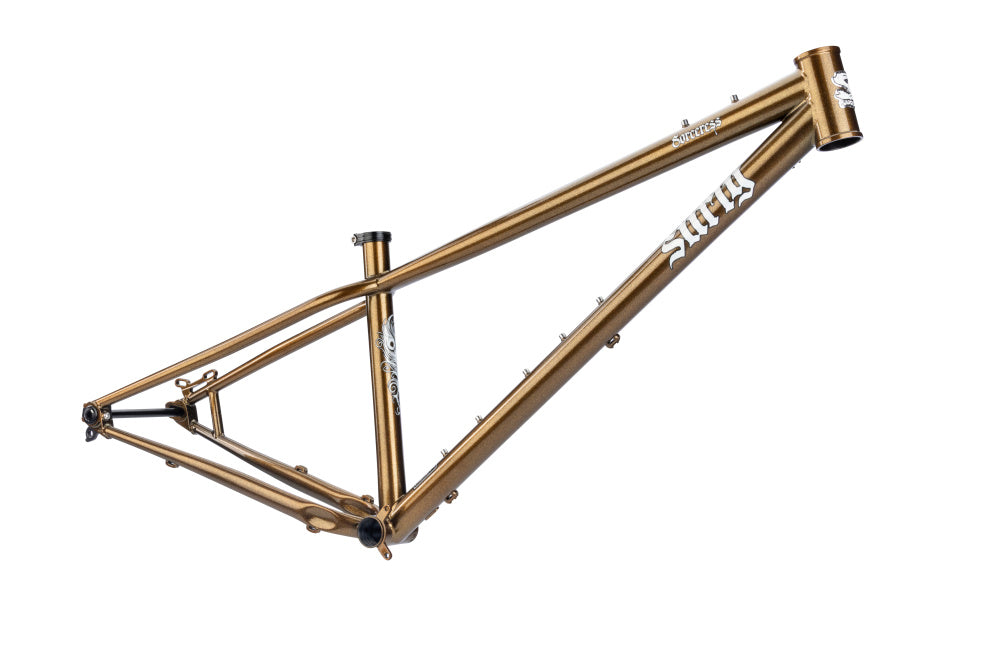

Surly Sorceress frame

KEY FEATURES

• Hard-charging modern trail geometry steel frame designed around 140mm forks
• UDH and single speed-capable dropout system
• Bottle cage mounts on all sizes: one three-pack (XS-SM) and one standard + one three-pack (MD-XL)
• Designed with optimal standover clearance for riders as small as 4’9” or 146cm

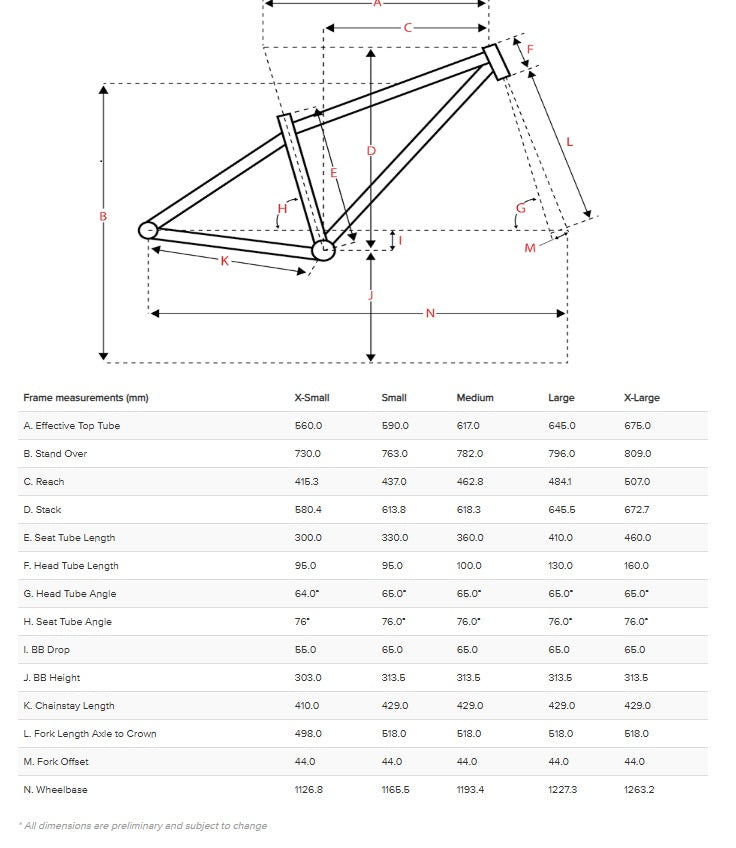

Frame Specifications

Frame                  4131 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated

Rear Dropout       Surly DUH Dropout System (UDH, SRAM Full Mount, and single speed)

Color                    Hot Honey Bling

Suspension Fork Length (Travel) 130-150mm travel, 44-47mm offset

Design Wheel/Tire Size (Tire Clearance) 29" x 2.6", 27.5" x 2.6" (XS)

Rear Hub Spec      12 x 148mm (Surly single speed axle included)

Rear Brake Disc     51mm I.S. (203mm max rotor)

Head Tube             44mm

Steerer Tube         1.125–1.5" tapered

Headsets (S.H.I.S.) ZS44/28.6, EC44/40

Seatpost                 30.9mm

Seat Collar             33.1mm

Dropper Compatible Yes, internally routed

Bottom Bracket       73mm threaded (1.37" x 24 TPI)

Crankset (Max Ring) 1x (55CL): 32T
