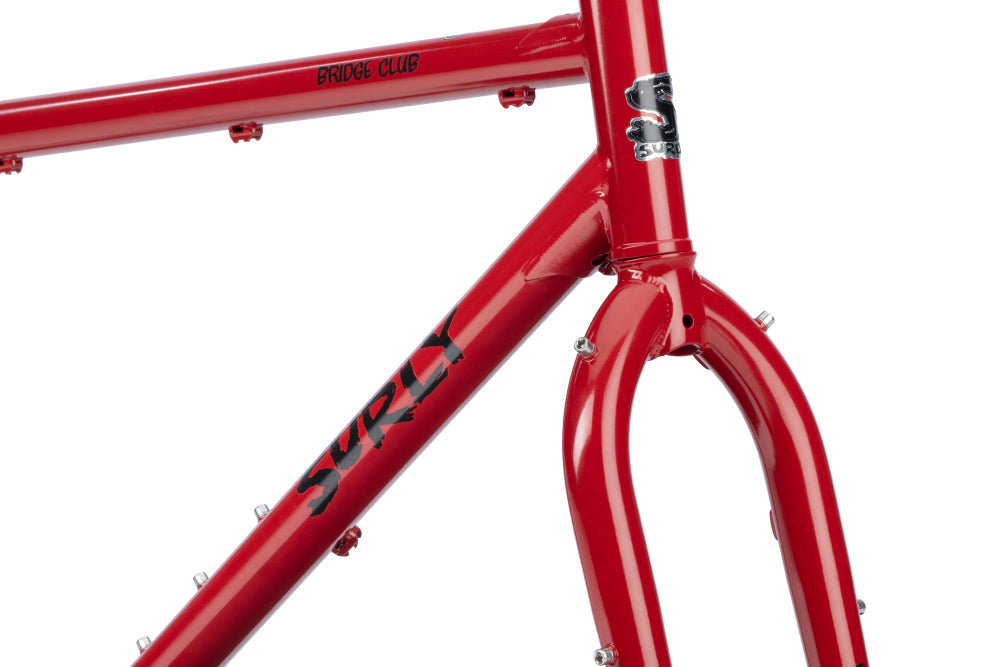

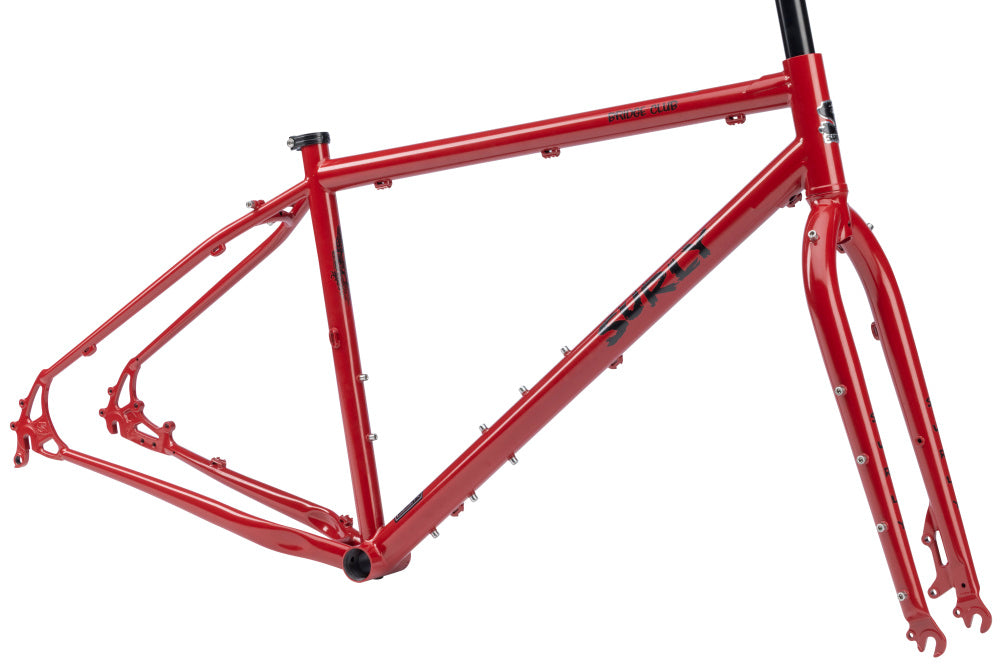

Surly Bridge Club frameset Lingering Cranberry

Bridge Club is an All Road Touring Bike for Any Destination

Bridge Club is for those multi-surface outings — planned or unplanned. We've all run out the clock on a dirt tour and had to add in some paved shortcuts. Conversely, when you’re feeling a little zesty on your next road tour, Bridge Club is ready for reroutes through the woods.

Some people hear "bike touring" and immediately think of long-forgotten stretches of highway, small-town oddities, and roadside attractions. Some instantly recall desolate stretches of desert dirt roads or lush green forest trails. With Bridge Club, you can have your dessert and eat it too!

• Ultra-focused on simplicity, it only has the barnacles that matter most to the discerning bike tourist
• Run racks and panniers, framebags, or all of the above

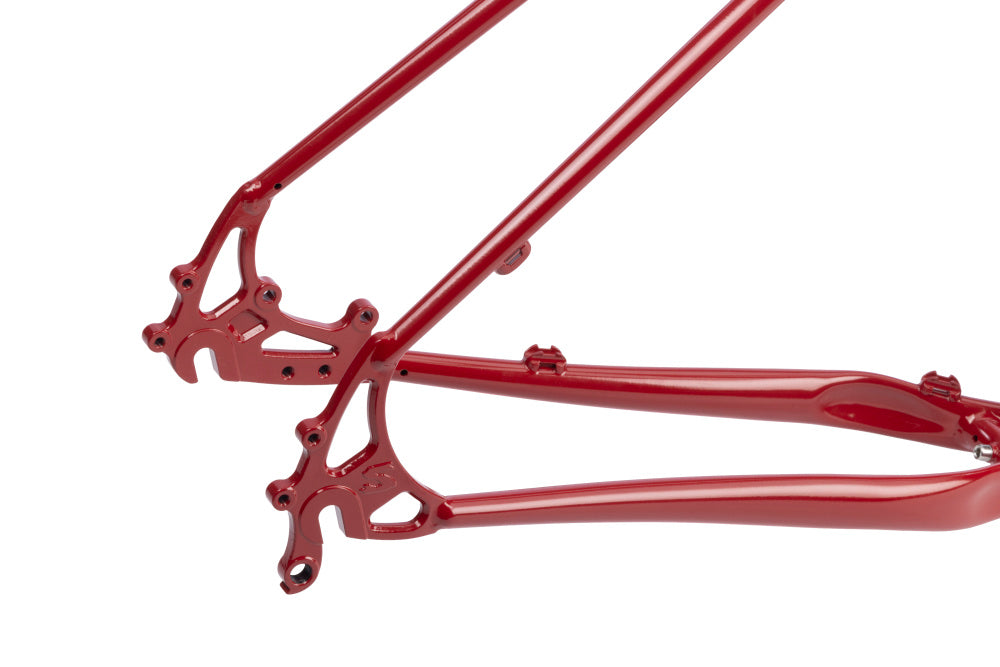

• Disc brake-specific, single position vertical rear dropout makes it less intimidating than other bikes in the category
• Clearance for 700 x 47mm tires (with or without fenders), 27.5 x 2.8” tires (27.5 x 2.6” with fenders), and 26 x 3” tires (26 x 2.8” with fenders)

Frame Specs

Design Wheel/Tire Sizes        27.5 x 2.4"

Alternate Wheel/Tire Sizes     Frame clearance: 26 x 3.0" (26 x 2.8" with fenders) / 27.5 x 2.8" (27.5 x 2.6" with fenders) / 700c x 47 with or without fenders - Fork clearance: 26 x 3.0" (26 x 2.8" with fenders) / 27.5 x 2.8" (27.5 x 2.6" with fenders) / 700c x 47 with or without fenders

Frame Construction                4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Fork Construction                   4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Rigid Fork Length                   420mm

Fork Offset                             43mm

Axle to Crown                        420mm

Rear Spacing "Gnot-Boost"   138mm

Rear Axle Size                       10 x 135mm or 10 x 141mm

Rear Brake                             Disc - 51mm I.S. (180mm max rotor)

Front Brake                             Disc - 51mm I.S. (203mm max rotor)

Headset                                  EC34

Front Dropout Spacing           10 x 100mm

Steerer Tube Ø                        28.6mm (1-1/8")

Crown Race Ø                         30mm (1-1/8")

Stem Clamp Ø                         28.6mm (1-1/8")

Seatpost Ø                              27.2mm

Dropper Post Compatible        No

Seatpost Clamp Ø                   30mm

Front Derailleur Clamp Ø         28.6mm

Front Derailleur Type               High direct mount top-pull (Ø28.6mm) 26mm offset adapter (not included) for 135mm rear hub spacing 29mm offset adapter (not included) for 141mm rear hub spacing

Bottom Bracket                        73mm threaded (1.37" x 24TPI)

Crankset (Max Ring)                1x (Mtn): 34T / 2x (Mtn): 26/40T / 3x (Mtn): 22/36/44T / 1x (Boost): 40T / 2x (Boost): 32/42T

Bottle Mounts                           2 Three-Pack (XS) / 1 Standard + 2 Three-Pack (S - XL)

Fork Mounts                            2 Three-Pack, rack mounts (upper, lower, and mid-blade threaded)

Front & rear Fender Mounts
