SpeedBox 1.6 for Bosch (Smart System Gen.5 + Rim M

SpeedBox 1.6 for Bosch Performance Line CX Gen5 motors removes the speed limiter for unrestricted riding. Designed for Smart System e-bikes with valve-mounted Rim Magnet, it offers simplified installation and activation via WALK function or button sequence. Real speed is not shown on display; accurate distance appears after countdown. Not compatible with ABS, SpeedBox App, or Gen4 motors.

SpeedBox 1.6 for Bosch – Smart System Gen.5 + Rim Magnet

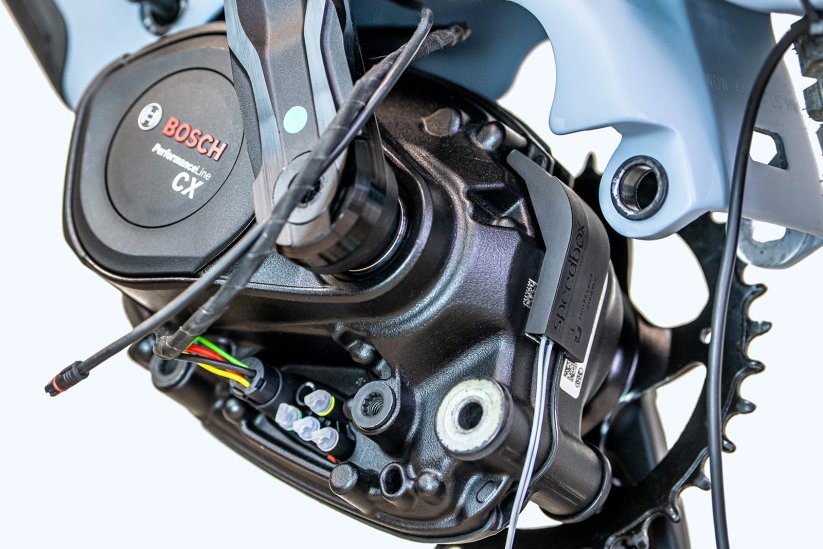

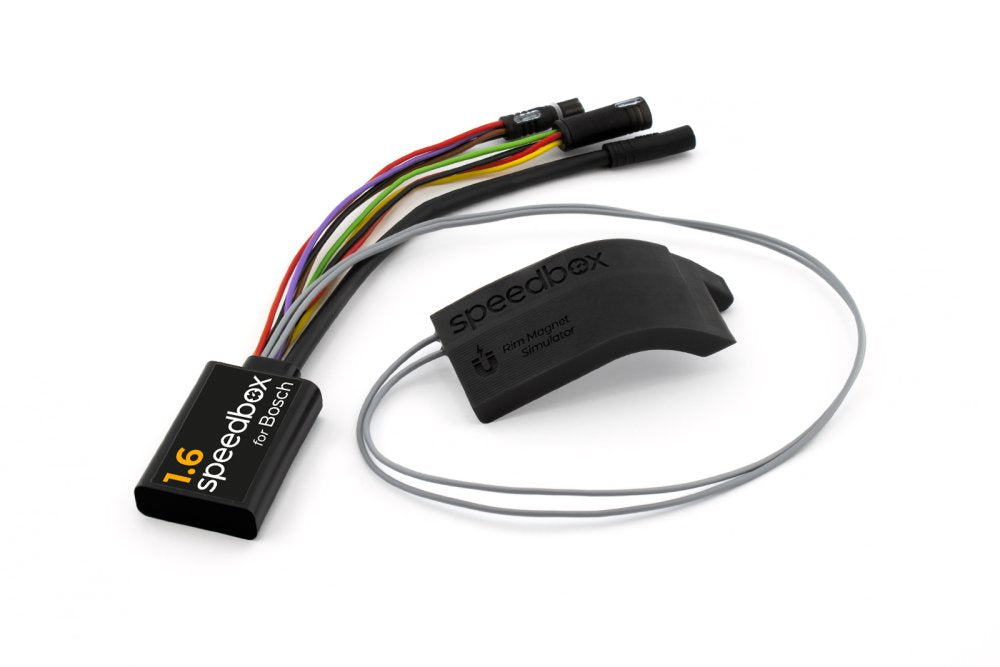

SpeedBox 1.6 is a premium tuning module designed for Bosch Performance Line CX (5th Generation) motors equipped with the Smart System and a valve‑mounted Rim Magnet. It removes the factory 25 km/h speed limiter, allowing smooth assisted speeds up to a recommended 35 km/h, while maintaining natural motor behaviour and intuitive control.

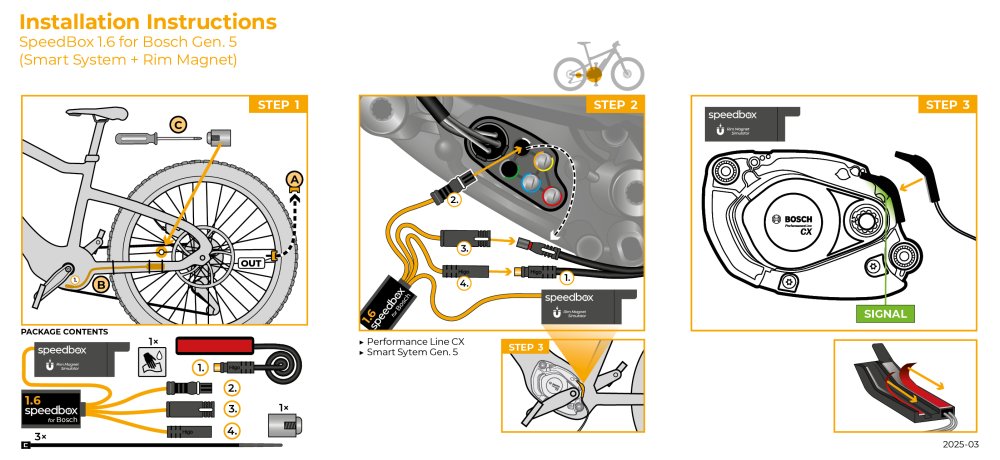

Simplified Installation

• No need to position a magnet simulator

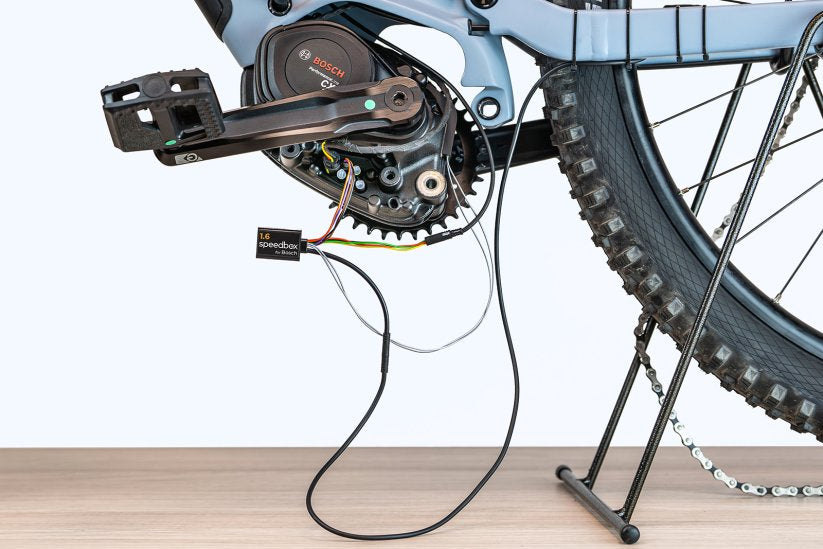

• Connects directly using original Bosch connectors


• Designed for motors mounted with 2 bolts

Activation & Control

• Activate/deactivate while stationary via WALK assist or button sequence (- + - +)


• Speed limit adjustable up to 99 km/h (recommended max: 35 km/h)


• Tuning status shown on display: 3.5 km/h = ON, 2.5 km/h = OFF

Display Behaviour

• Real-time speed: Not shown


• Correct distance: Displayed after post‑ride countdown


• Countdown must complete before powering off or removing the display

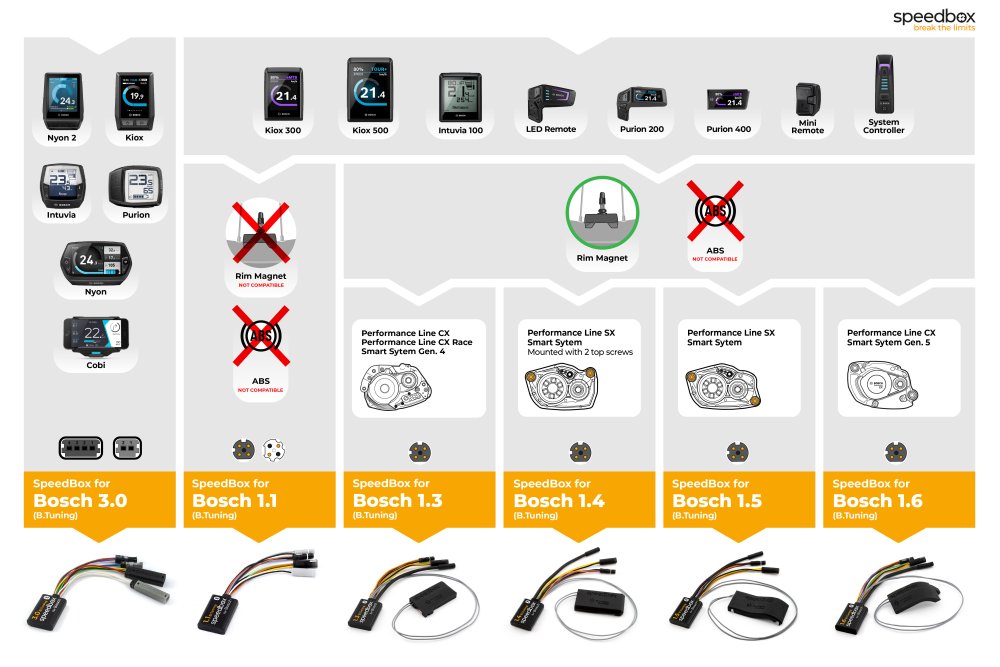

Compatibility

• Bosch Performance Line CX – 5th Generation

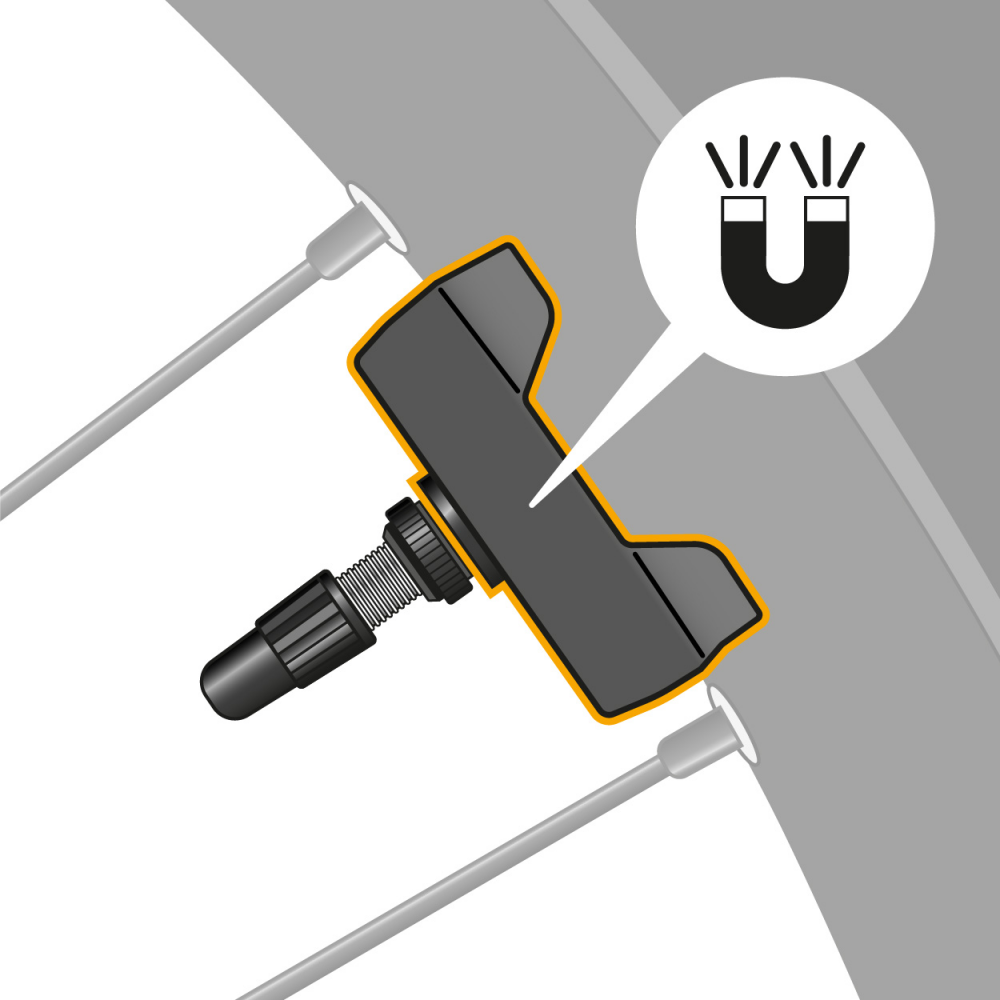

• E-bikes using Bosch Rim Magnet (valve-mounted)

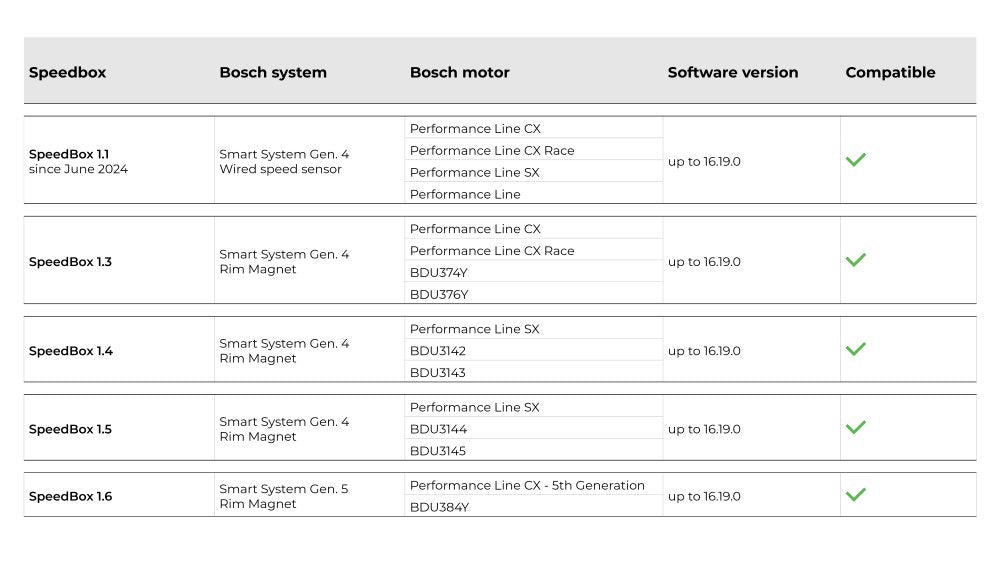

• Current Bosch Smart System software versions
  (Check supported versions before purchase)

Not Compatible With

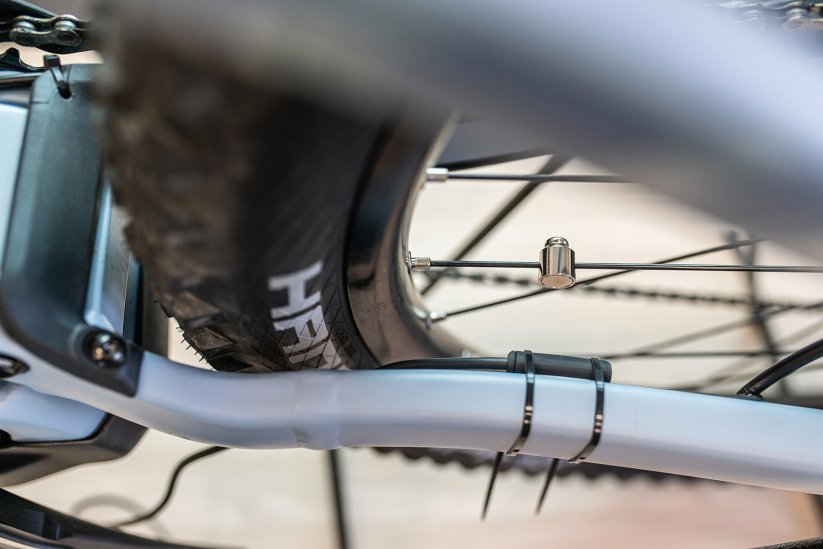

• Standard spoke-mounted magnets


• Bosch ABS system


• SpeedBox App


• Bosch Gen.4 motors


• Software versions above 17.16.0

Setting a Custom Speed Limit

Switch through modes in this order:

TURBO → eMTB → TOUR+ → ECO → TOUR+ → eMTB → TURBO

The display will show the selected limit (e.g., 3.5 km/h = 35 km/h). After 15 seconds of inactivity, the setting is saved.

Installation & Shutdown Notes

• After riding, leave the bike powered on until the display reaches 0.0 km/h


• Do not remove the display before the countdown completes


• Do not activate/deactivate tuning while riding


• Disable automatic firmware updates in the eBike Flow App

Legal & Safety Notice

SpeedBox products are intended for use on private property only. Use on public roads may violate local laws and void your e‑bike warranty. Always wear protective gear and ride responsibly.

Recommendations for Trouble-Free Operation

• Keep the bike on until the countdown completes after each ride


• During short stops, keep one foot on the pedal to prevent countdown


• During long stops, allow at least part of the countdown to run


• Do not exceed 35 km/h to avoid error codes


• Do not perform software updates
