SpeedBox 1.2 Tuning Chip for Shimano E8000 / E7000 / E6100 / E5000 + E-Tube Port

SpeedBox 1.2 Tuning Chip for Shimano E8000 / E7000 / E6100 / E5000 + E-Tube Port

SpeedBox 1.2 is a redesigned tuning chip for e-bikes with Shimano E8000, E7000, E6100 and E5000 motors, with new hardware and firmware. It removes the speed limiter; the display shows actual speed up to 23 km/h.

It can be controlled with the LIGHT button: tuning is on when the lights are off and off when the lights are on. If the red wire is left unconnected during installation, or the bike has no lights, tuning is active at all times. This version does not connect to the SpeedBox Connect app.

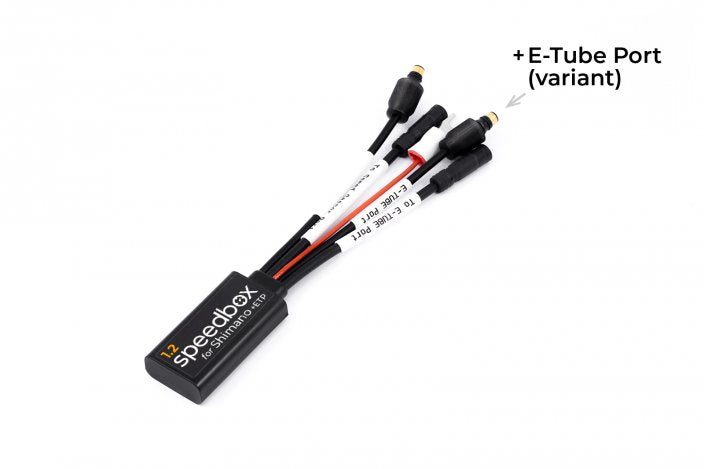

This variant adds an E-Tube port, for motors that do not have a free one.

Key Features

• Maximum speed: unlimited
• Display: shows actual values up to 23 km/h
• Activation: lights off = tuning on, lights on = tuning off
• Always-on option: leave the red wire unconnected
• Includes an extra E-Tube port, for motors without a free port
• SpeedBox Connect app: not supported

Compatibility

• Shimano E8000, E7000, E6100, E5000 motors
• E-bikes without a free E-Tube port: Di2 electronic shifting, tube-integrated Satellite System ON/OFF switch (EW-SW100, EW-SW300), all E5000 bikes
• Not compatible with the SpeedBox Connect app

Good to Know

• If your motor already has a free E-Tube port, the standard version (SB12-S) is suitable.
• For actual speed and ride data in the SpeedBox Connect app, see SB12BT-S.

Legal and Safety Notice

This tuning chip changes the e-bike's factory speed limit and assistance settings. A modified e-bike may not be legal to ride on public roads, cycle paths or other public areas; SpeedBox products are intended for use on private property, at the rider's own risk. Installation may void the e-bike manufacturer's warranty. Installation by a qualified technician is recommended. Always wear appropriate protective gear.
