SpeedBox 1.0 Tuning Chip for Brose / Specialized Motors + Connectors

SpeedBox 1.0 Tuning Chip for Brose / Specialized Motors + Connectors

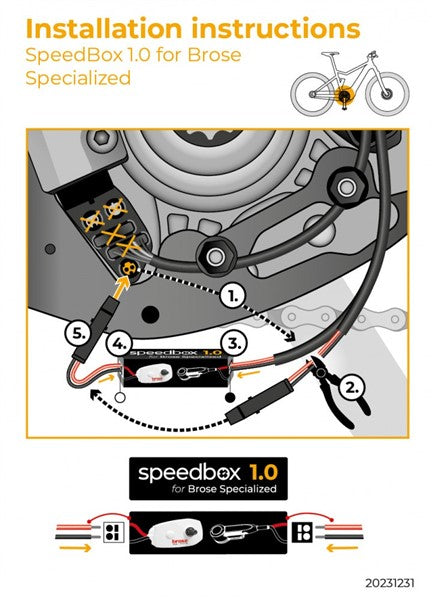

This is the connector variant of SpeedBox 1.0 for e-bikes with Brose motors, including Brose SPECIALIZED systems. It removes the factory speed limiter and is active at all times.

The e-bike display shows actual speed up to 18 km/h, then holds that value at higher speeds. This version does not connect to the SpeedBox Connect app.

Key Features

• Variant: supplied with connectors
• Maximum speed: unlimited
• Activation: always active
• Display: shows real values up to 18 km/h
• SpeedBox Connect app: not supported

Compatibility

• Brose SPECIALIZED
• Brose S-MAG
• Brose S
• Brose T
• Brose C
• Brose T-ALU
• Not compatible with Brose S Mag FIT motors
• Not compatible with Specialized SL motors (use SB1-BRO-S)
• Not compatible with the SpeedBox Connect app

Good to Know

• Before updating the e-bike's software, uninstall SpeedBox, complete the update, then reinstall it. Updating firmware with the chip fitted can make the chip inoperable.
• On a new bike, ride at least 10 km before the chip is activated.
• Not for Specialized SL motors, which need the universal cut-wires version (SB1-BRO-S).

Legal and Safety Notice

This tuning chip changes the e-bike's factory speed limit and assistance settings. A modified e-bike may not be legal to ride on public roads, cycle paths or other public areas; SpeedBox products are intended for use on private property, at the rider's own risk. Installation may void the e-bike manufacturer's warranty. Installation by a qualified technician is recommended. Always wear appropriate protective gear.
