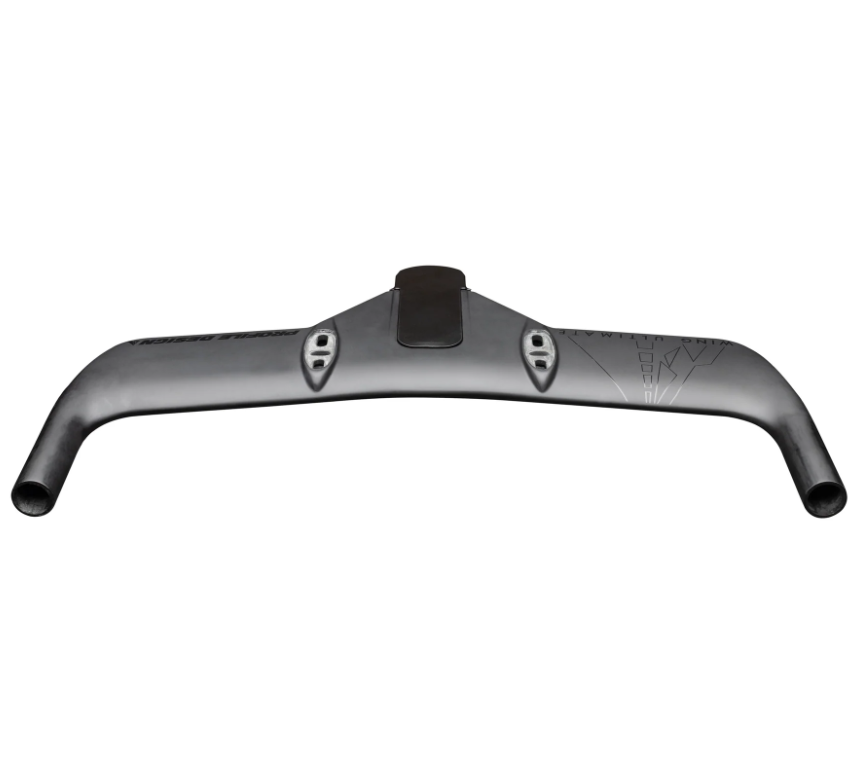

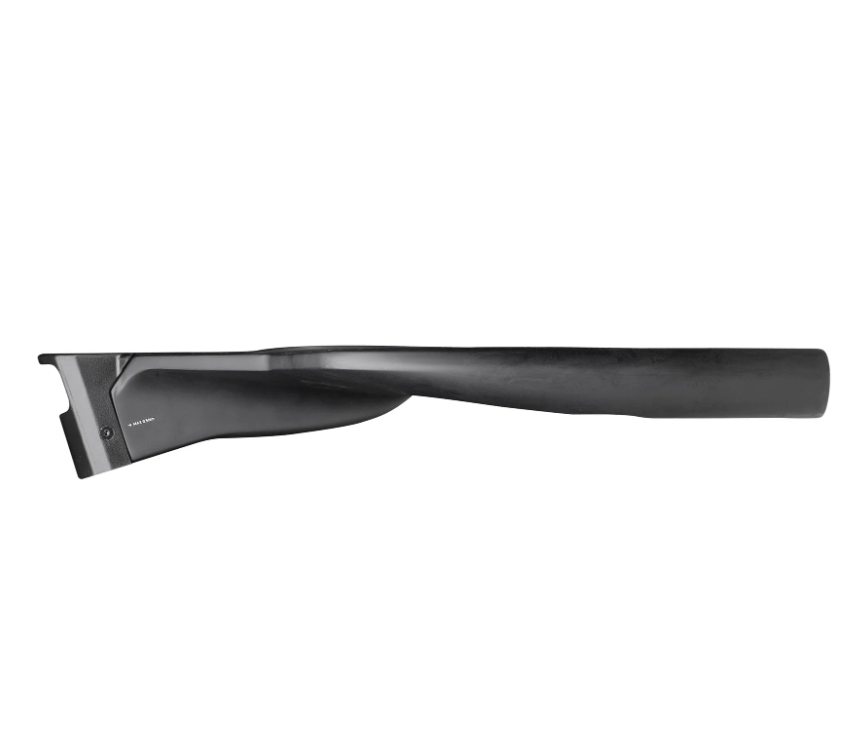

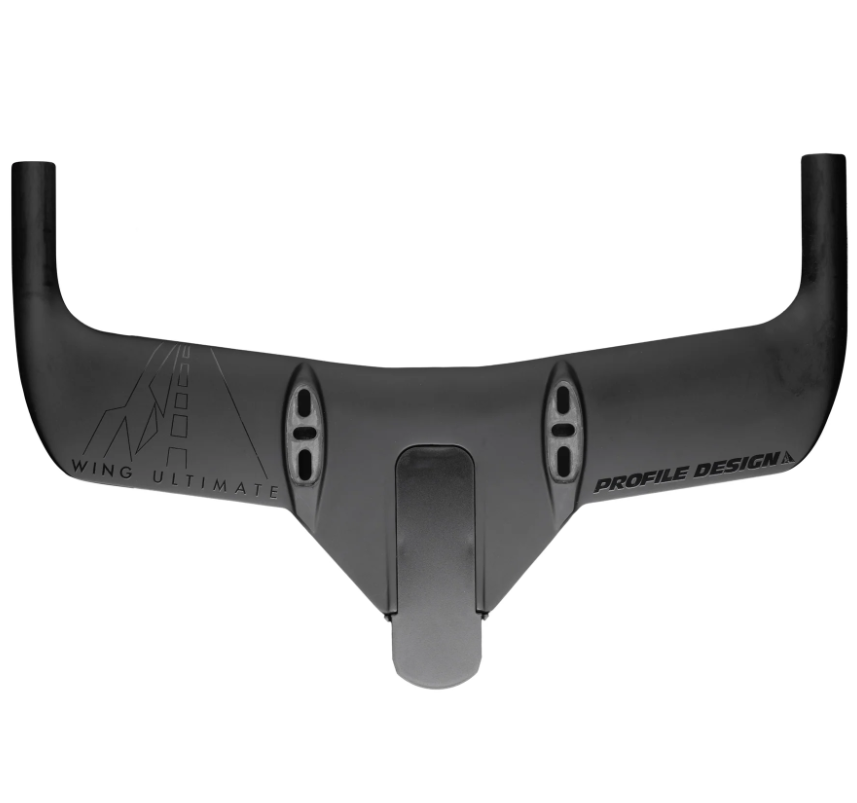

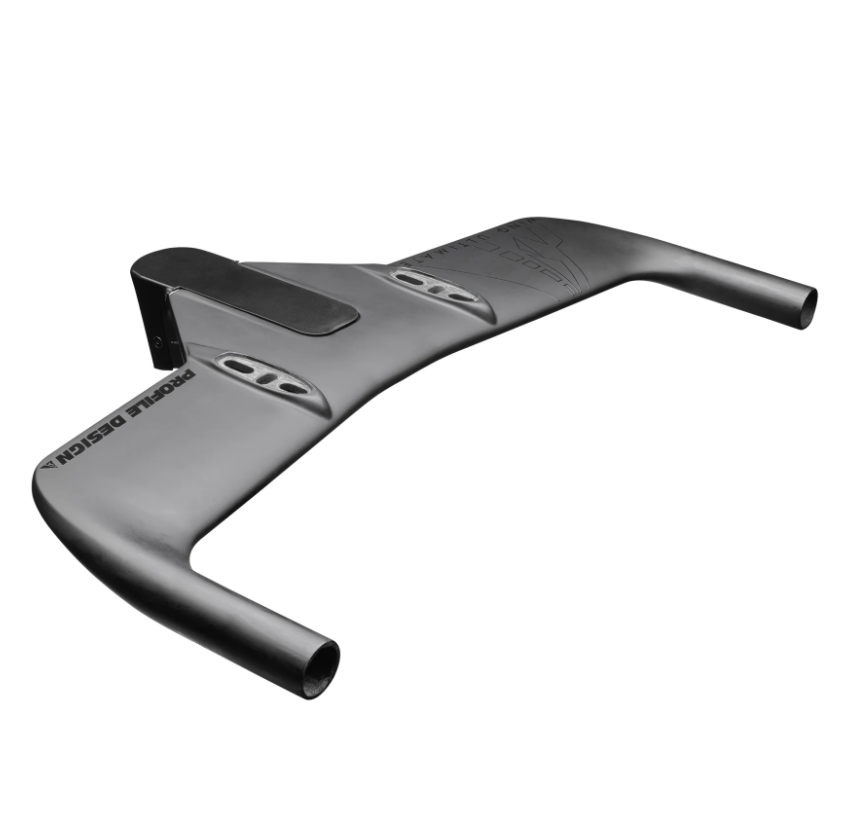

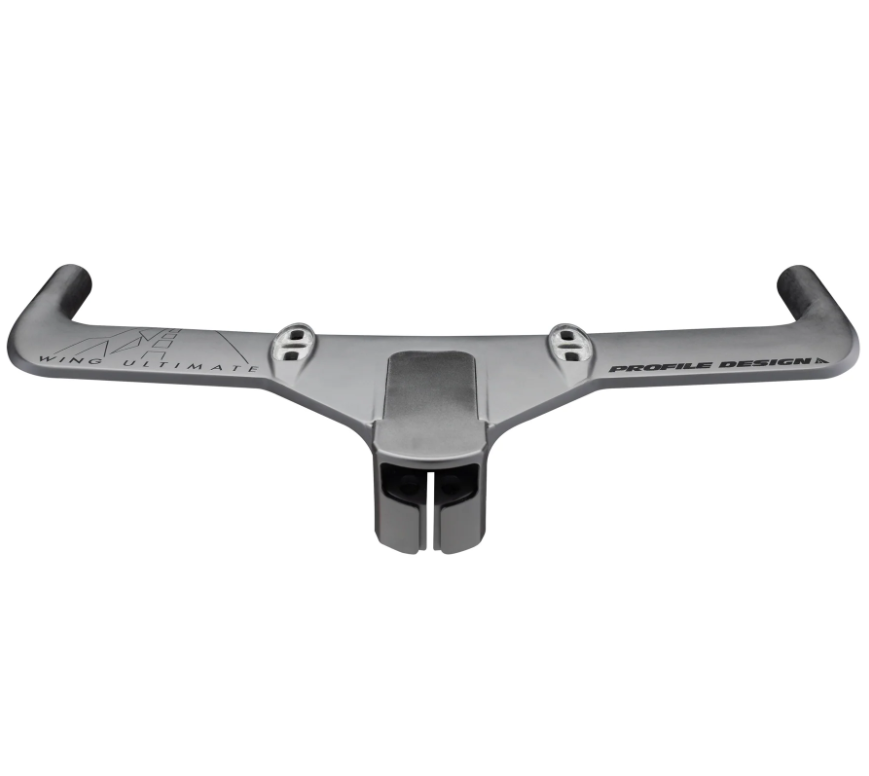

The Wing Ultimate S has been designed to maximize aerodynamics within the updated UCI rules, offering a measurable improvement compared to a 3:1 design. It also drops a significant amount of weight compared to the Aeria Ultimate.
*Note: Sold as just a Basebar
Key Features
Full Carbon integrated bar and stem.
Compatible with the A3 riser system.
Compatible with top tube or headset cable routing.
Performance
The Wing Ultimate S offers a combination of aerodynamic integration and supreme fit range. With the change in spec comfort for most users will be increased alongside the performance advantage of lower weight.
Fit Data
Armrest offset: -92.5mm to -10mm in 7.5mm steps
Armrest Width: 124mm to 254mm in 18.5mm steps
Armrest Stack: The minimum is 64mm to 84mm
Accessory Options
Designed to be paired with Profile Design Extensions - Carbon or Aluminum Versions or ASC Pro extensions
Profile Design Extensions
Brackets and Risers
A3A Riser Kits
A3C Riser Kits
A3 Reach Extenders
A3 Tilt Booster
Who is it for
This bar is perfect for riders who wish to achieve lower positions than are possible with standard aerobar designs. Unlike other low stack bars it allows fine-tuning of the stack height so the rider is not limited to only one arm pad height. With the Race armrests fitted it is tailored towards riders who intend to be low and narrow to punch the smallest possible hole through the wind.
Tech Specs
Effective stem length: 89.6mm
Effective bar reach: 142.4mm
Basebar Width: 420mm (Center-to-Center)
Stack of Bracket Mount: 44.3
Stack of Grips: 0.5mm
Internal Cable Routing: Yes
Di2 Compatible: Yes
Extension Clamp Diameter: 22.2mm
Bracket Tilt Adjustment: 0-15° (Aeria Ultimate Bracket - Sold separately) or reach 18-30° with A3 Tilt (A3 Tilt - Sold separately)
