Pedro's Pro BB Socket Cup - Pro BB Socket System (Cup Only, No Inserts)

Pedro's Pro BB Socket Cup - Pro BB Socket System (Cup Only, No Inserts)

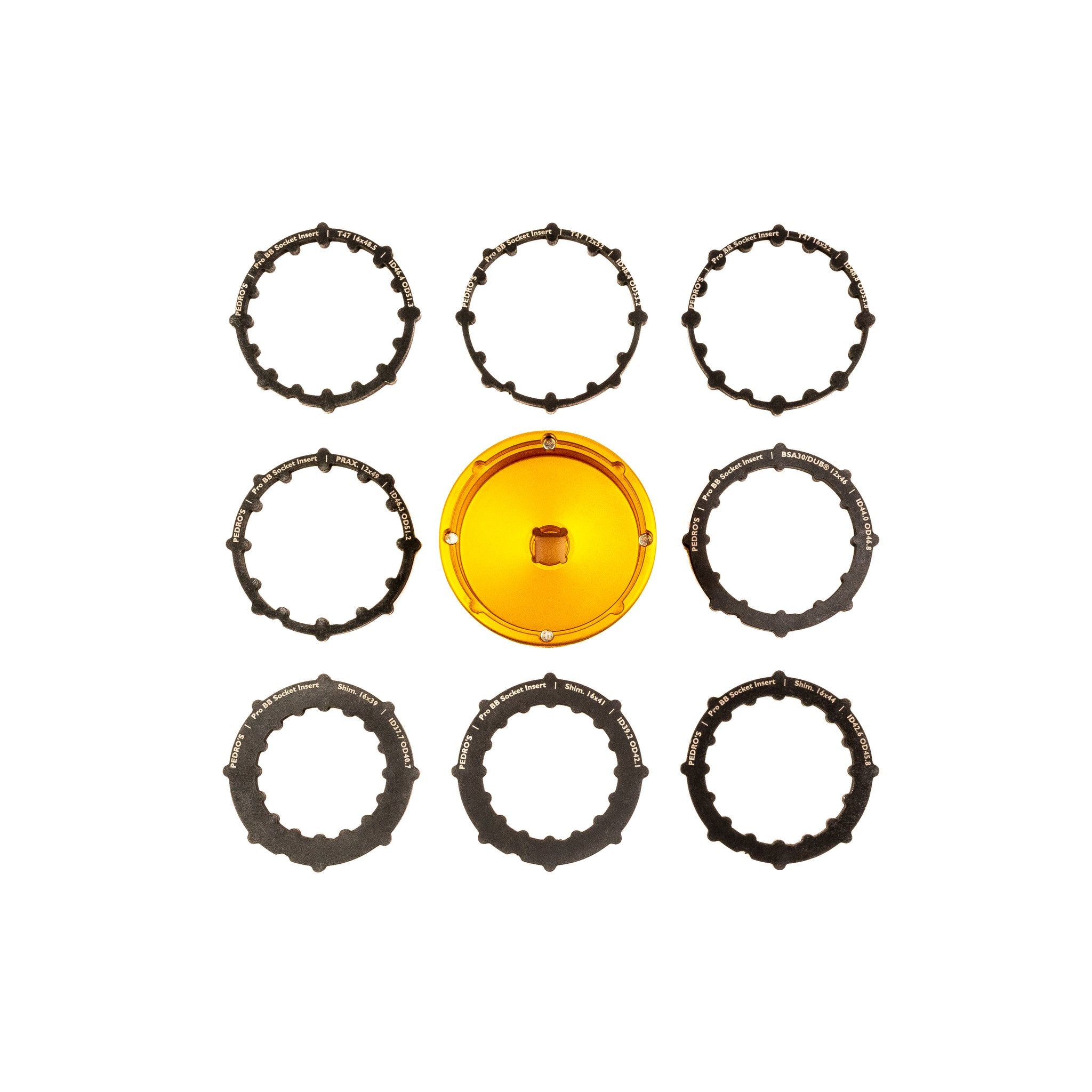

The Pro BB Socket System is Pedro's answer to the growing number of threaded bottom bracket standards. Instead of a separate socket for each, you buy one Pro BB Socket Cup and add the tool steel inserts you need; new inserts can be added as new standards appear.

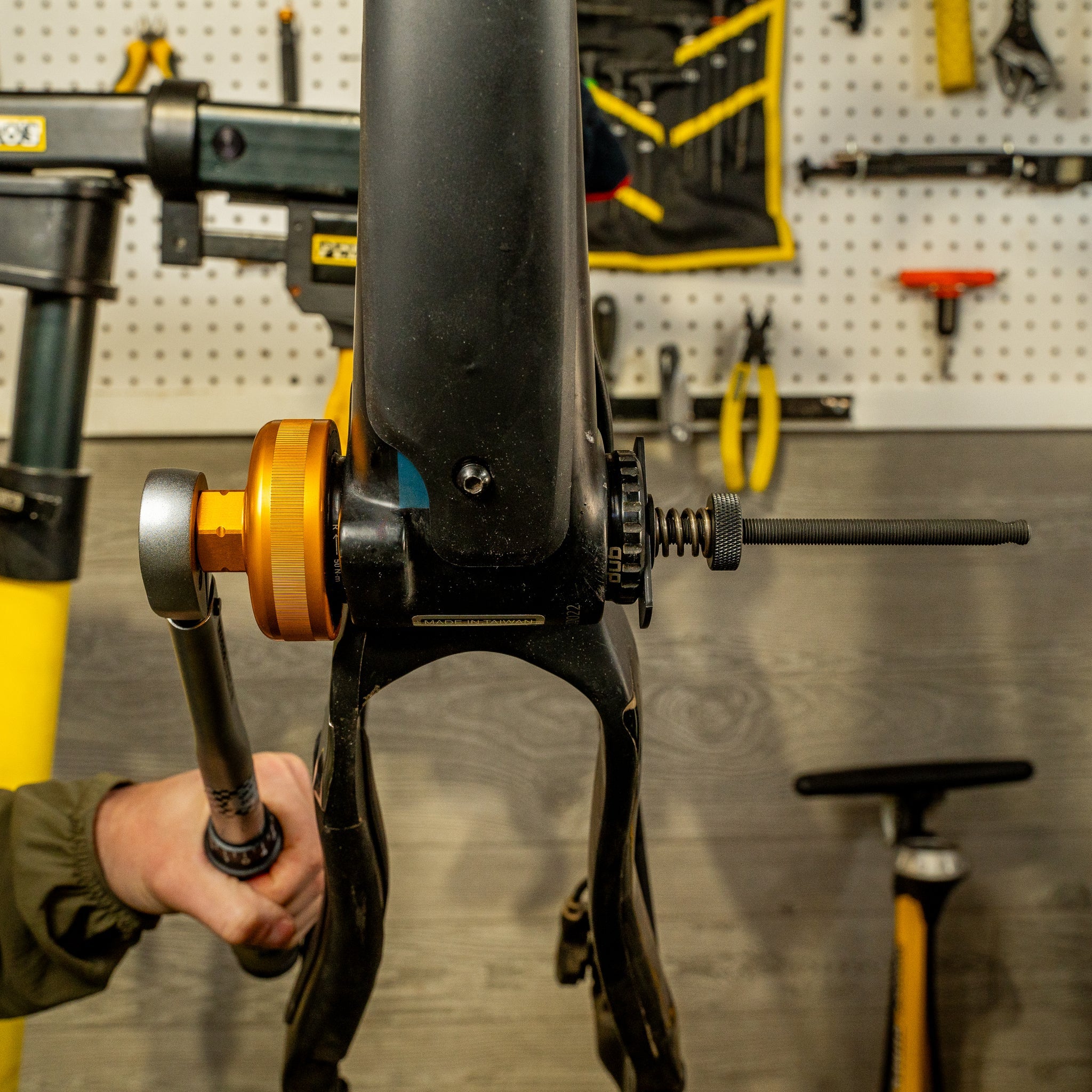

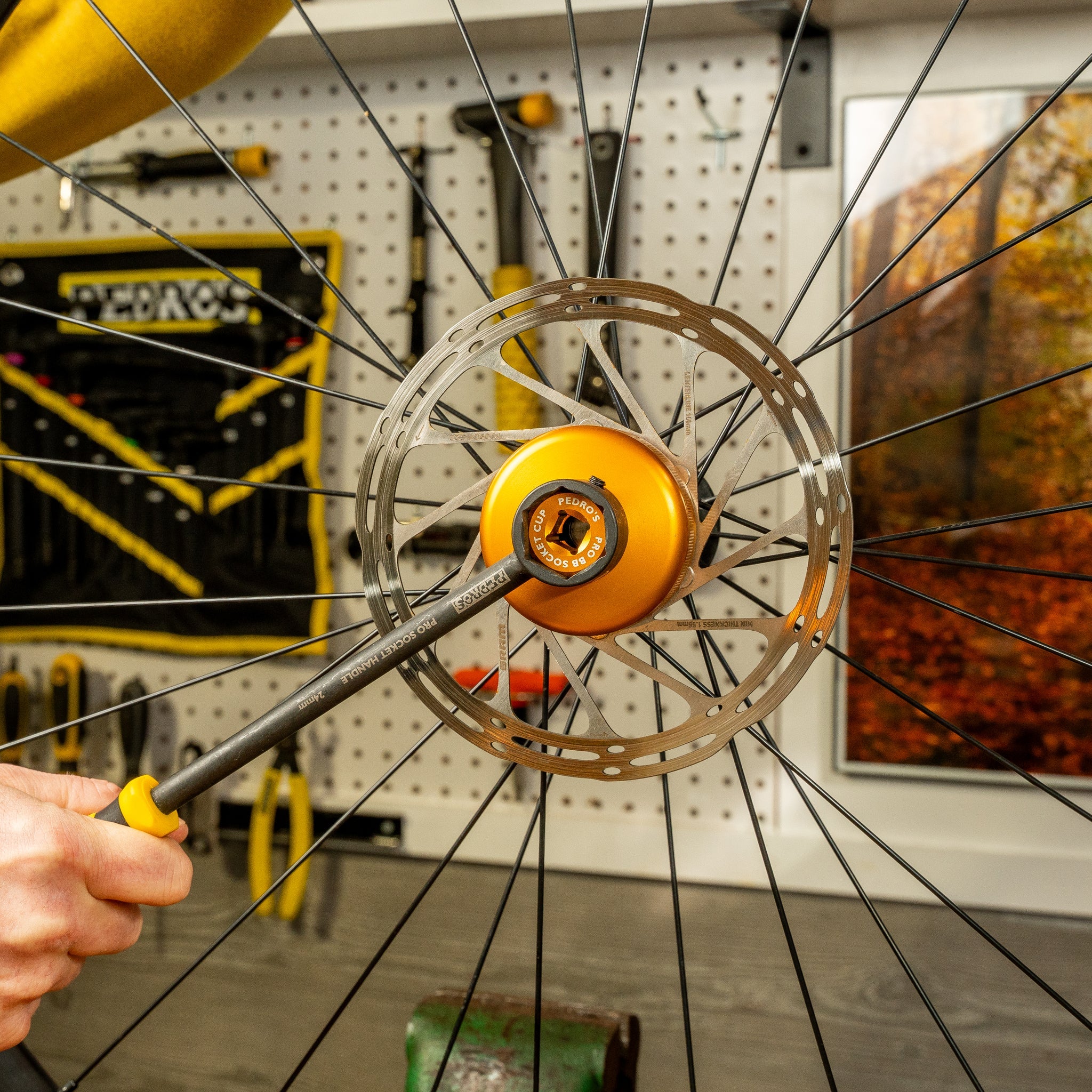

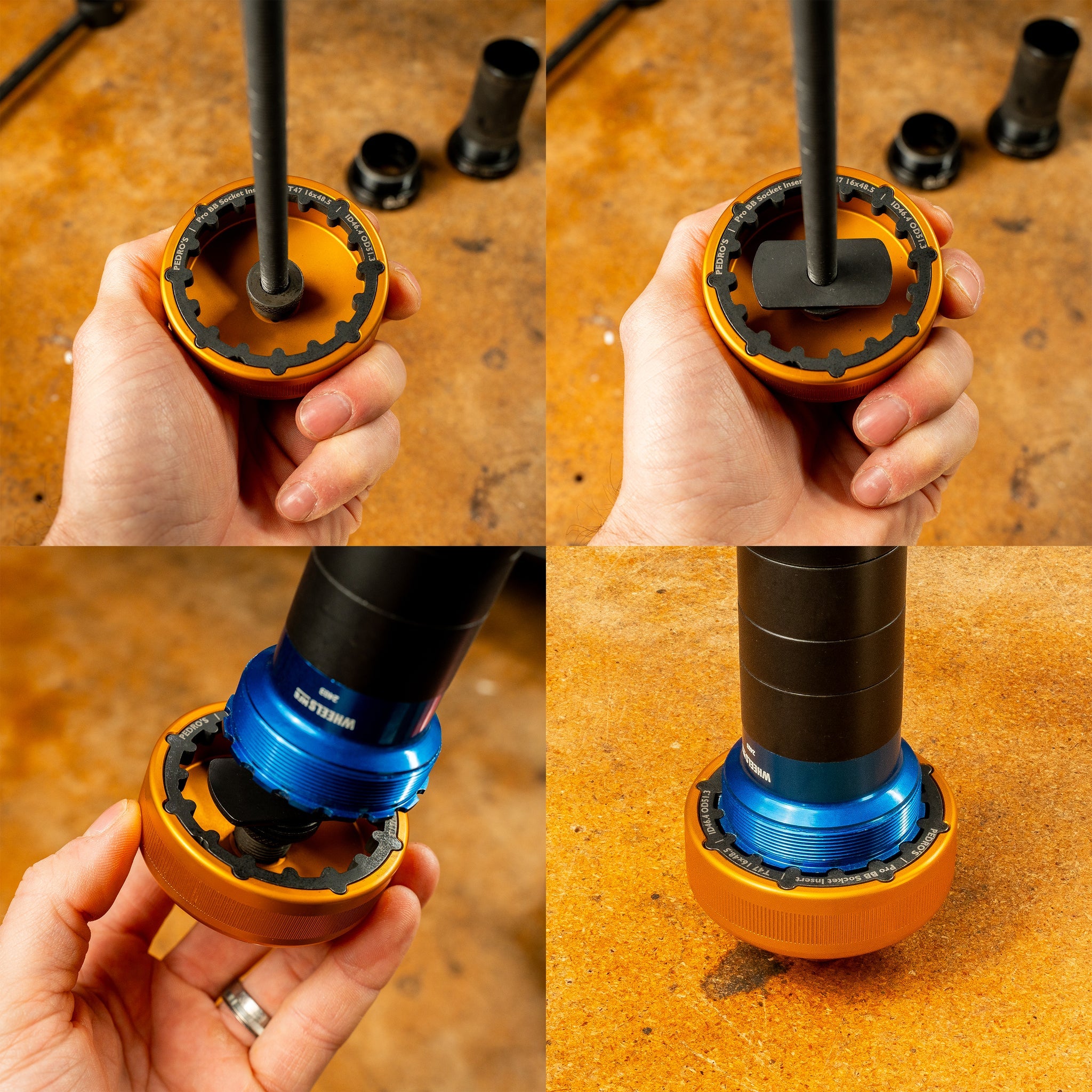

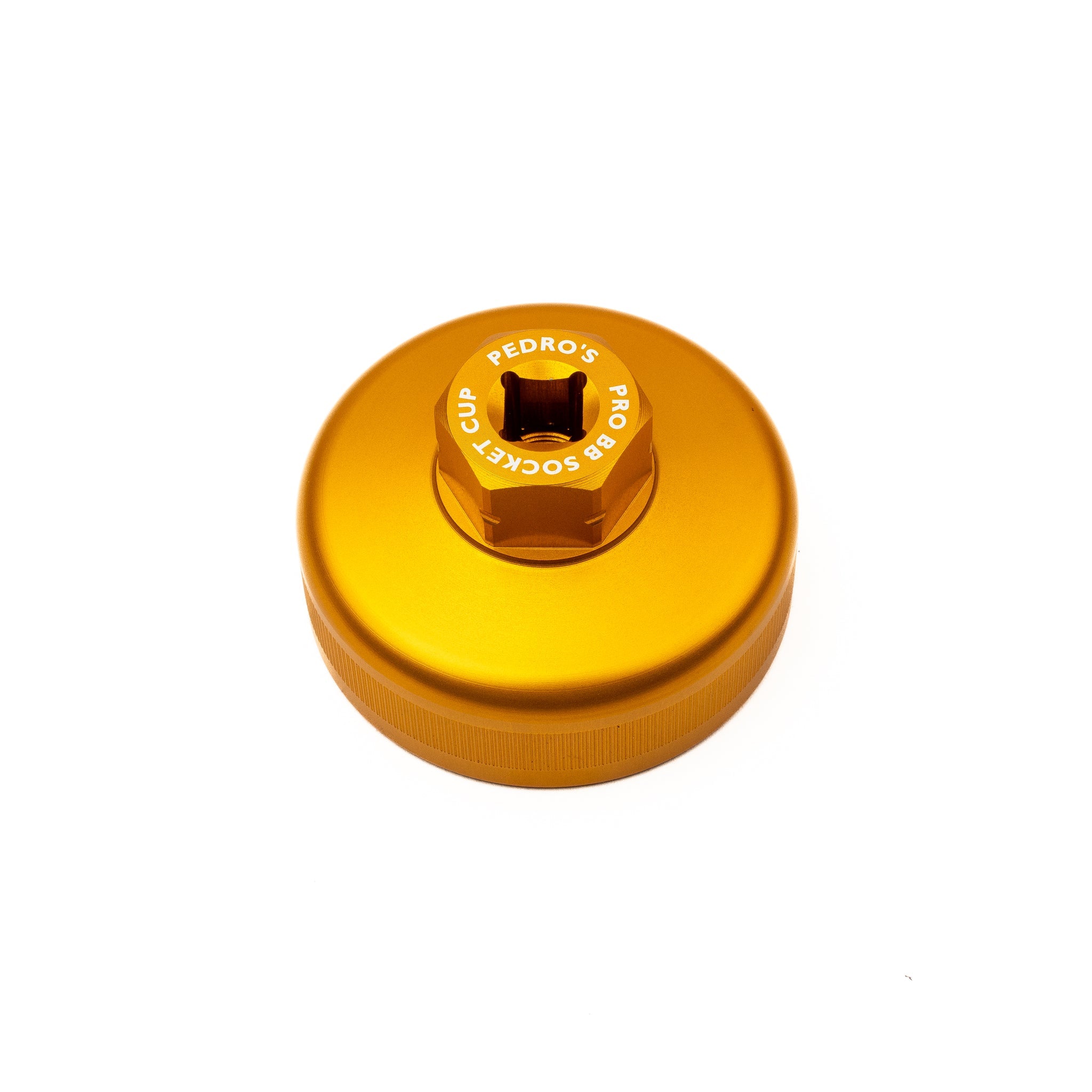

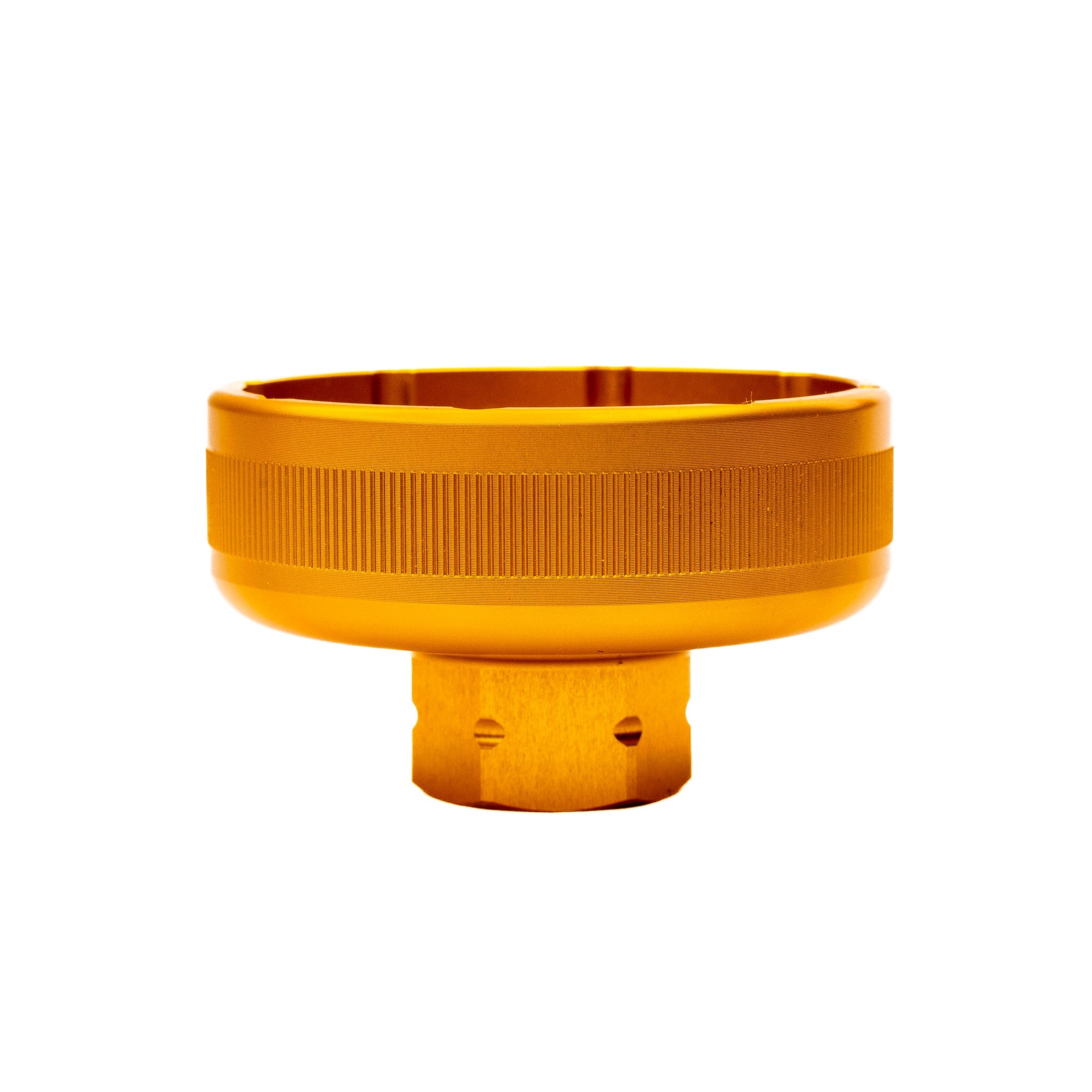

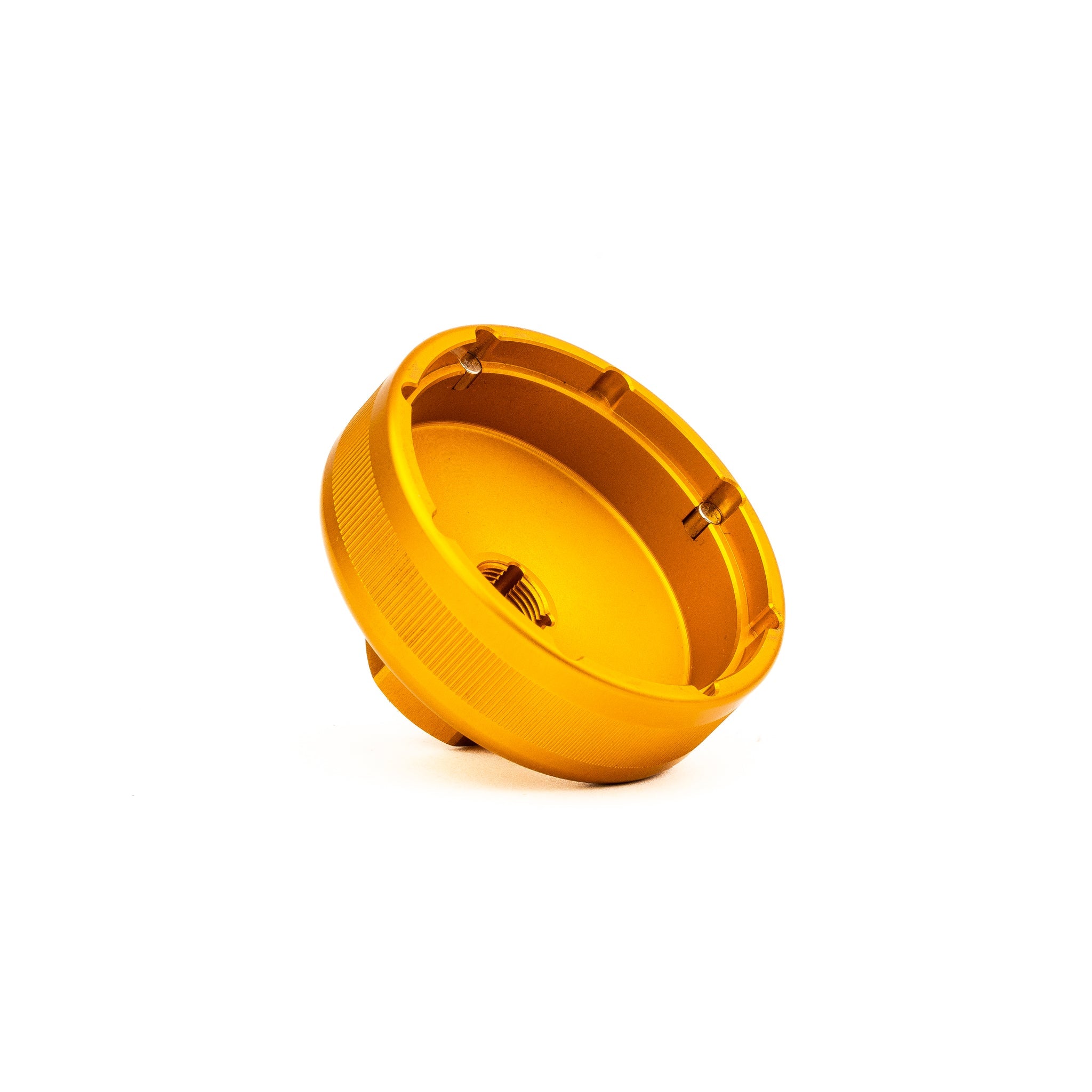

The cup is fully machined from 7075-T6 aluminium for a precise fit, and inserts click in and are held magnetically. It can be driven by a 3/8in torque wrench, a 24mm socket handle or pedal wrench, and the internal M12 thread lets the Pro BB Socket Holder sandwich the tool against the bottom bracket so it cannot slip off or press further on.

Key Features

• Fully machined 7075-T6 aluminium cup

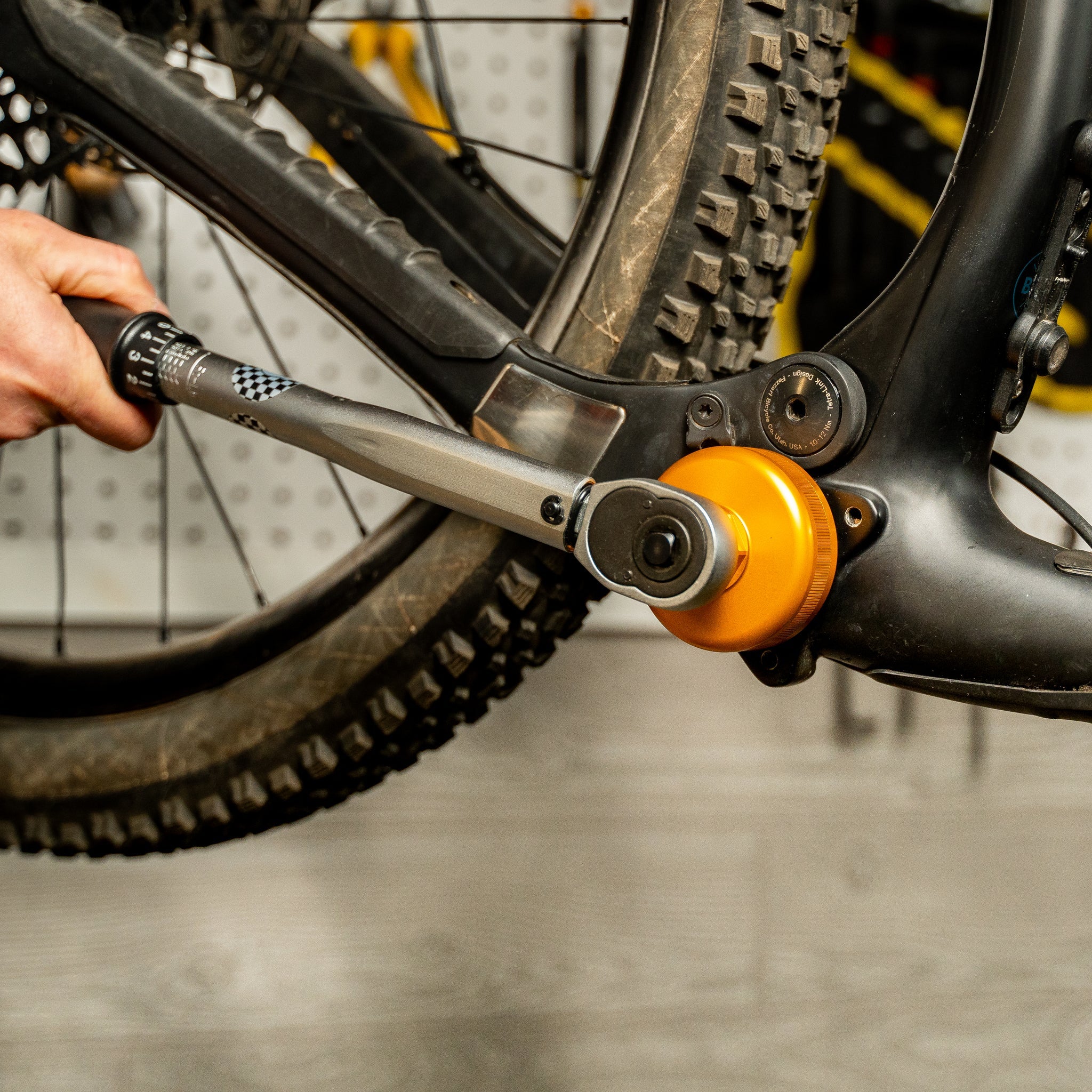

• 3/8in square drive for torque wrenches
• 24mm external drive for the Pro Socket Handle and pedal wrenches
• Internal M12 thread for the Pro BB Socket Holder

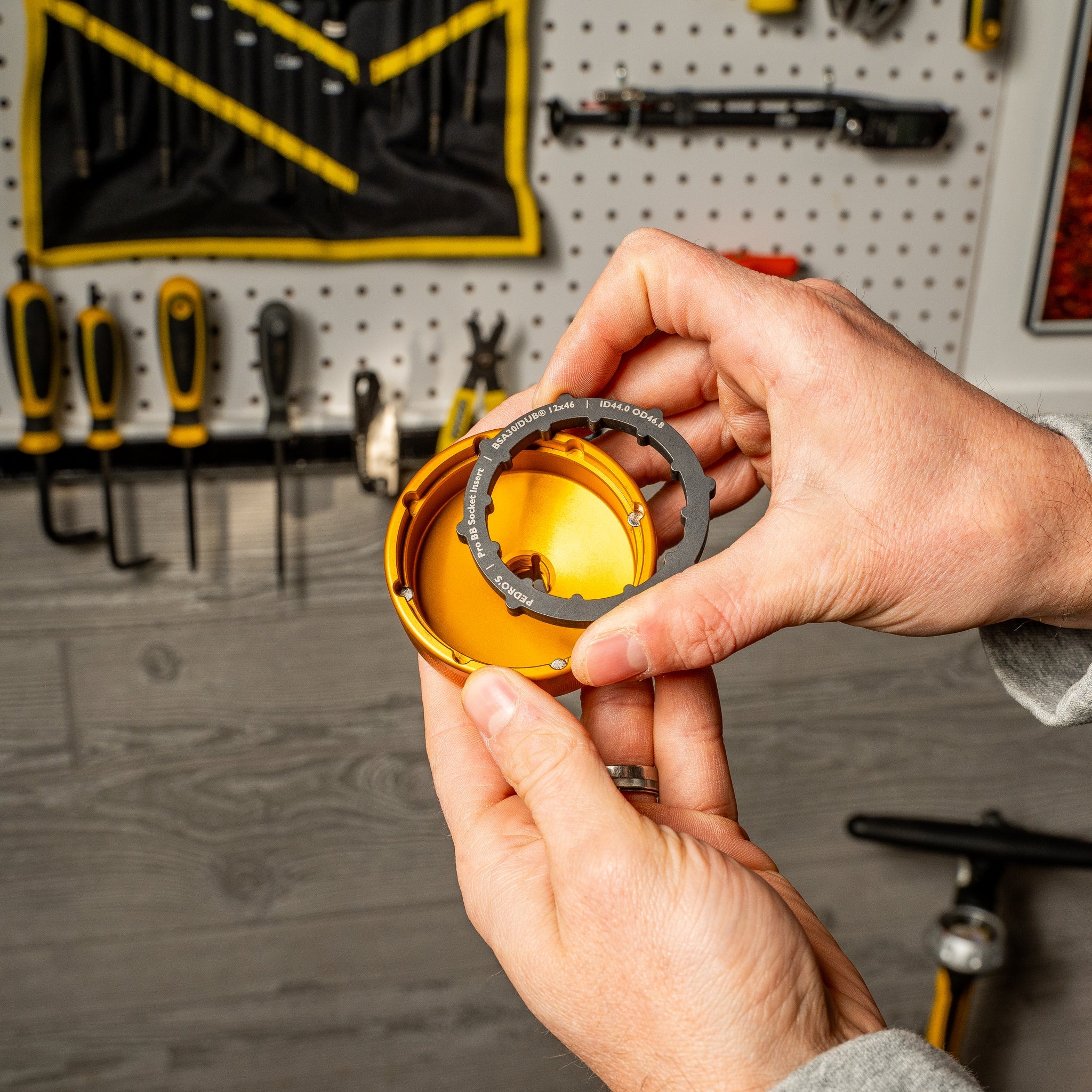

• Magnetic plug-and-play insert connection
• Covered by Pedro's lifetime tool warranty

Compatibility

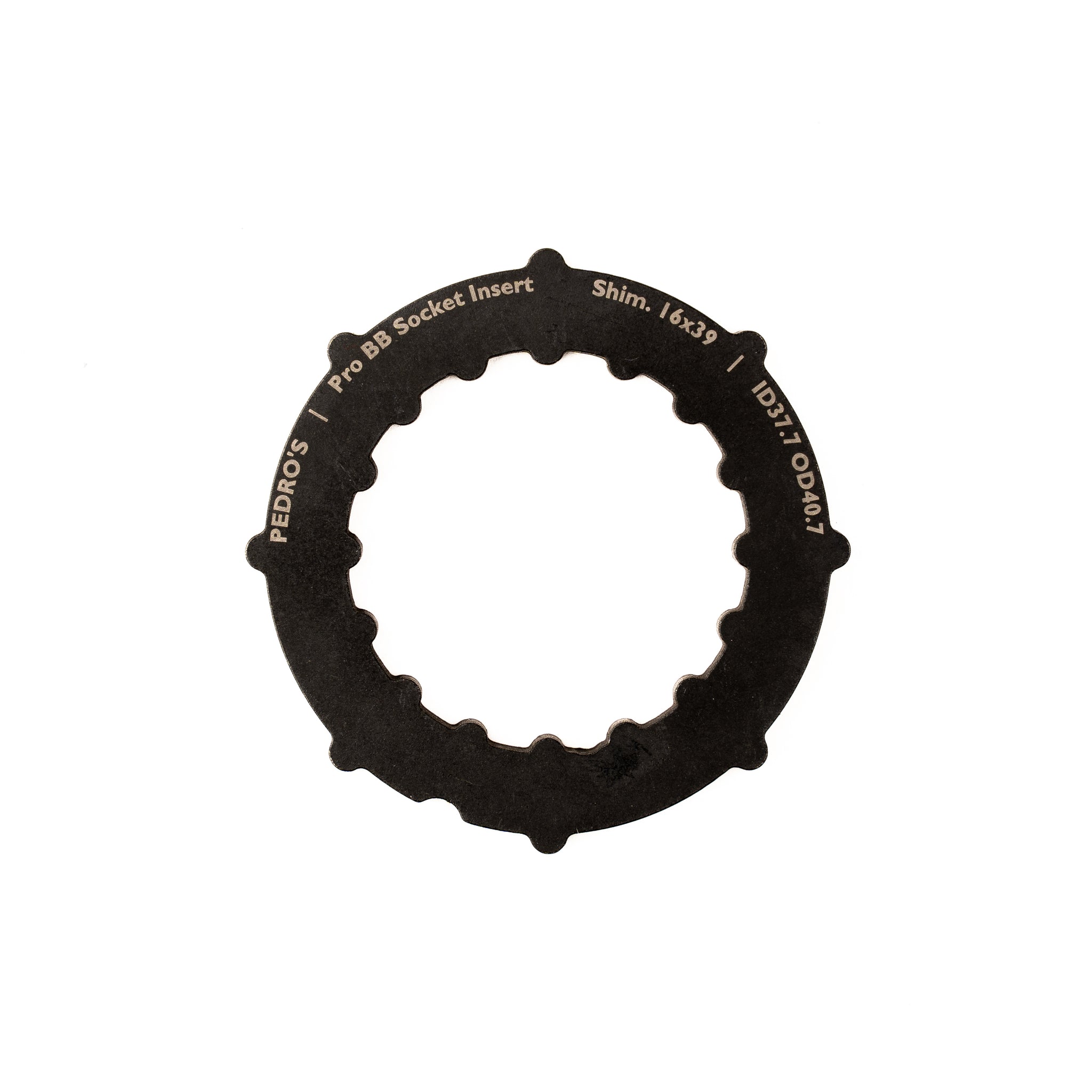

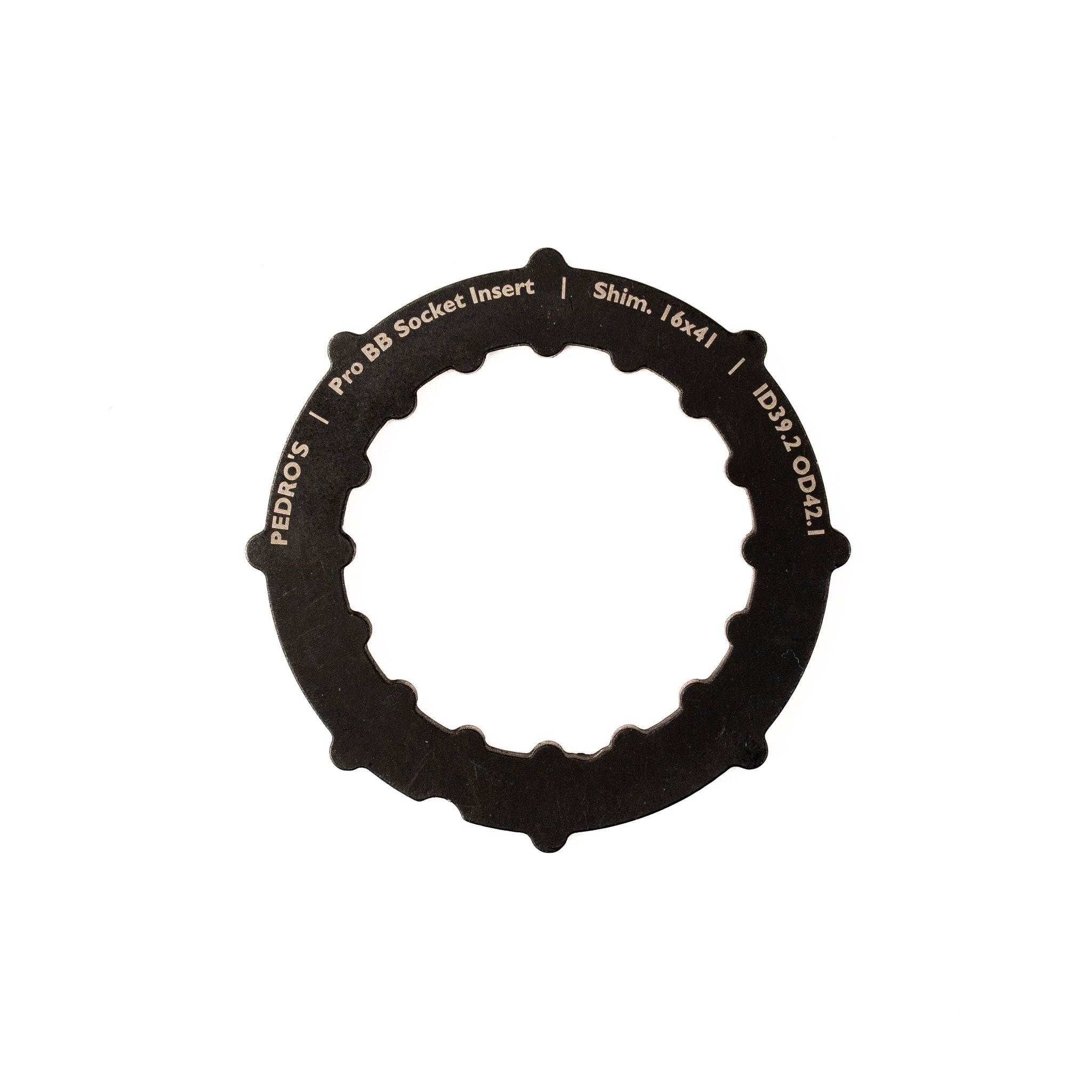

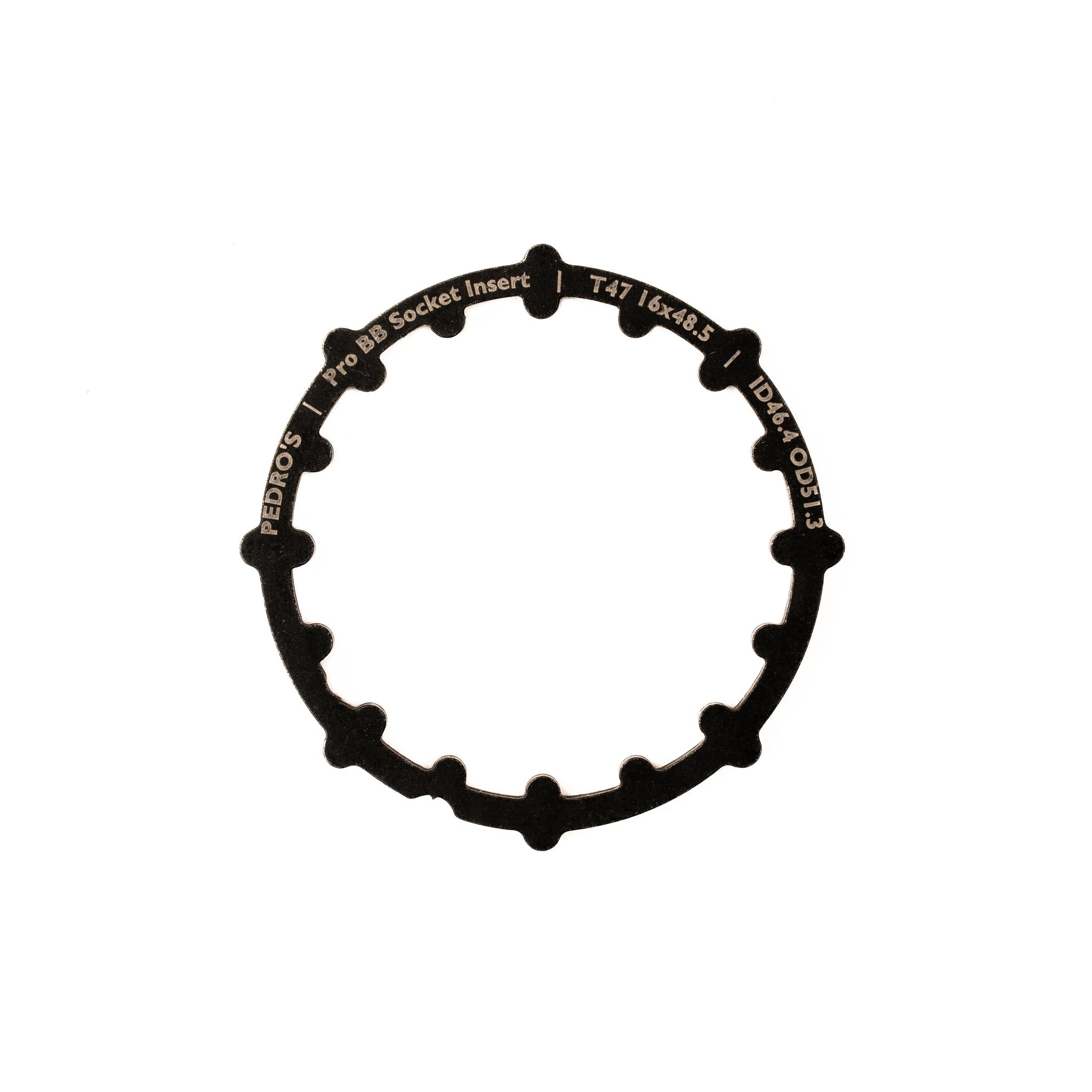

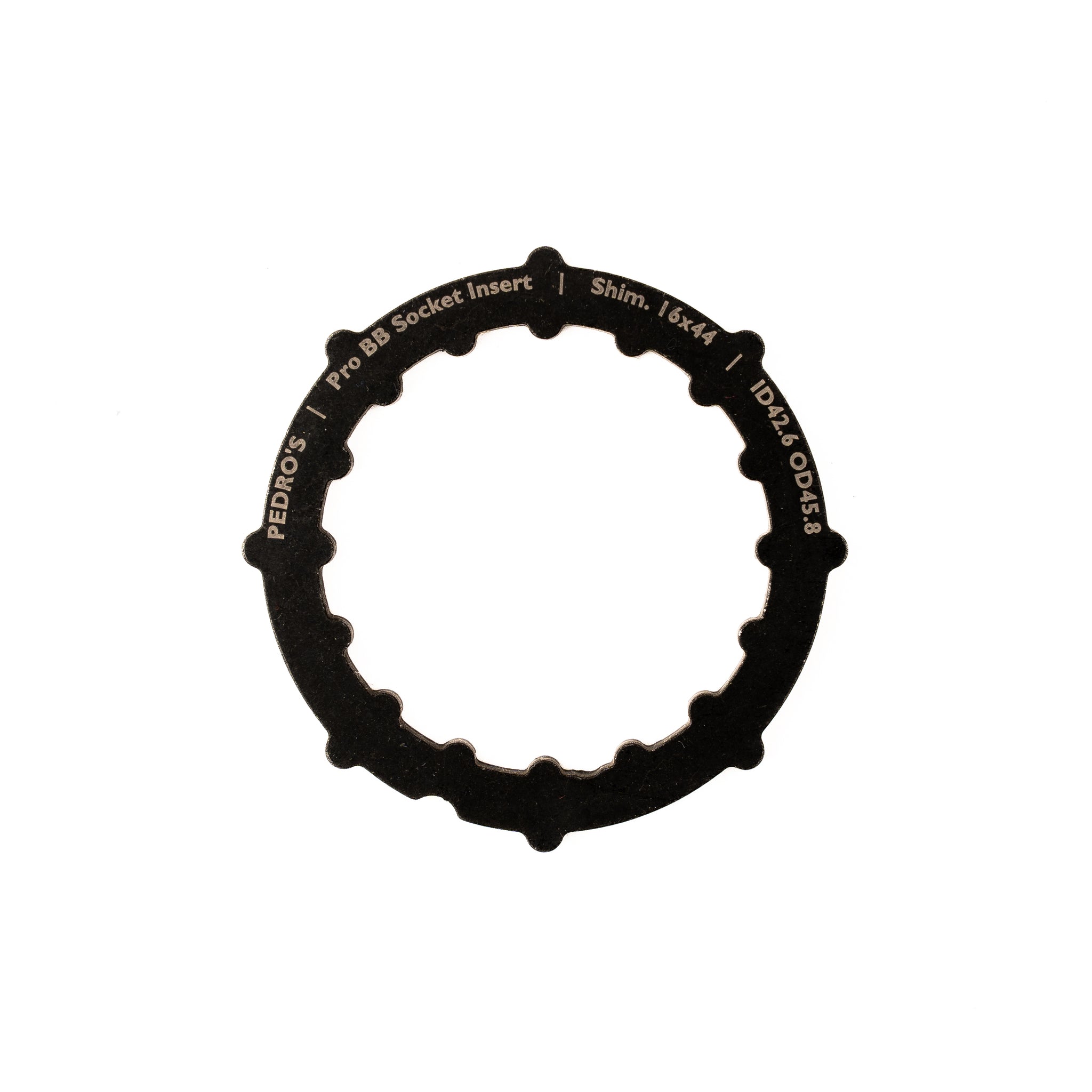

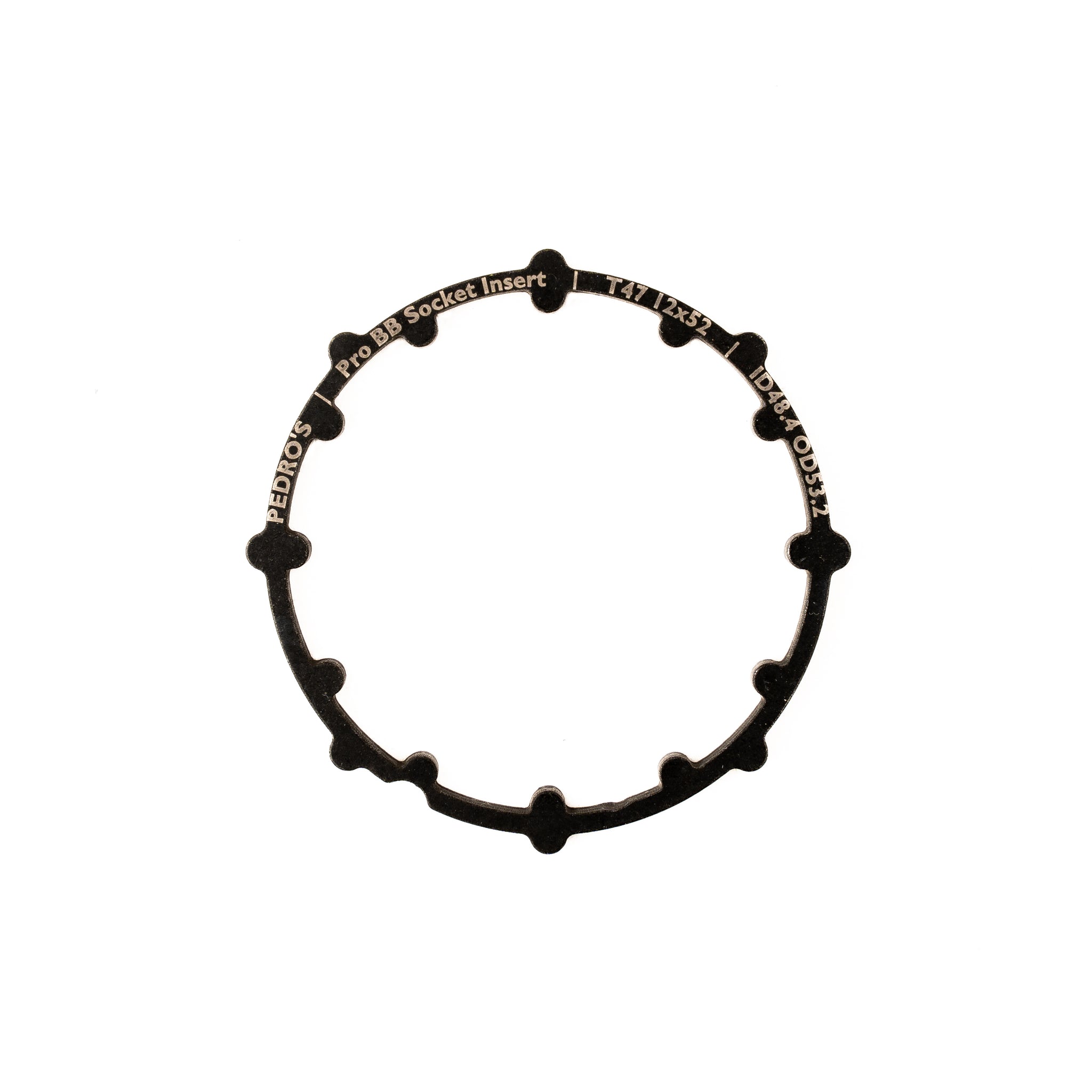

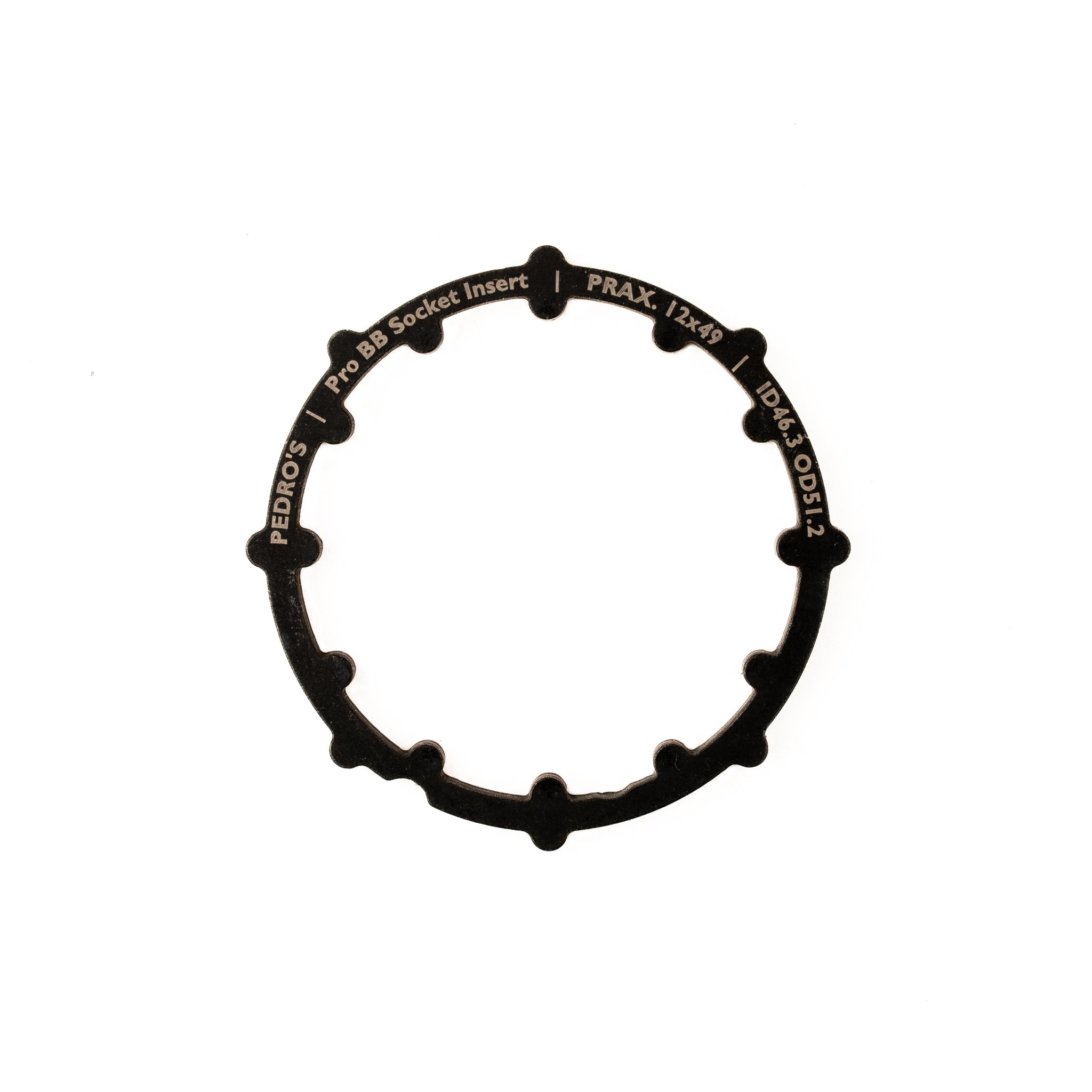

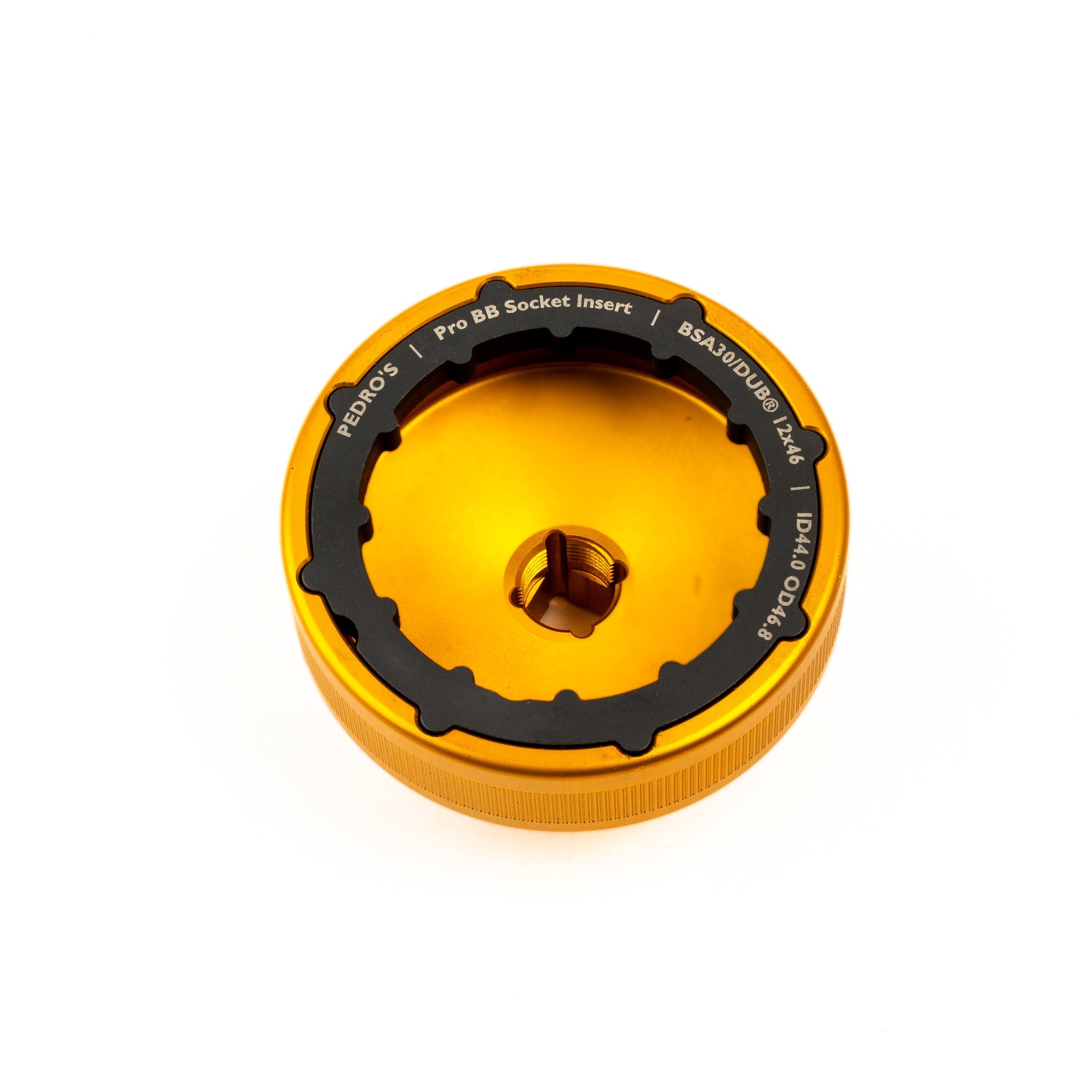

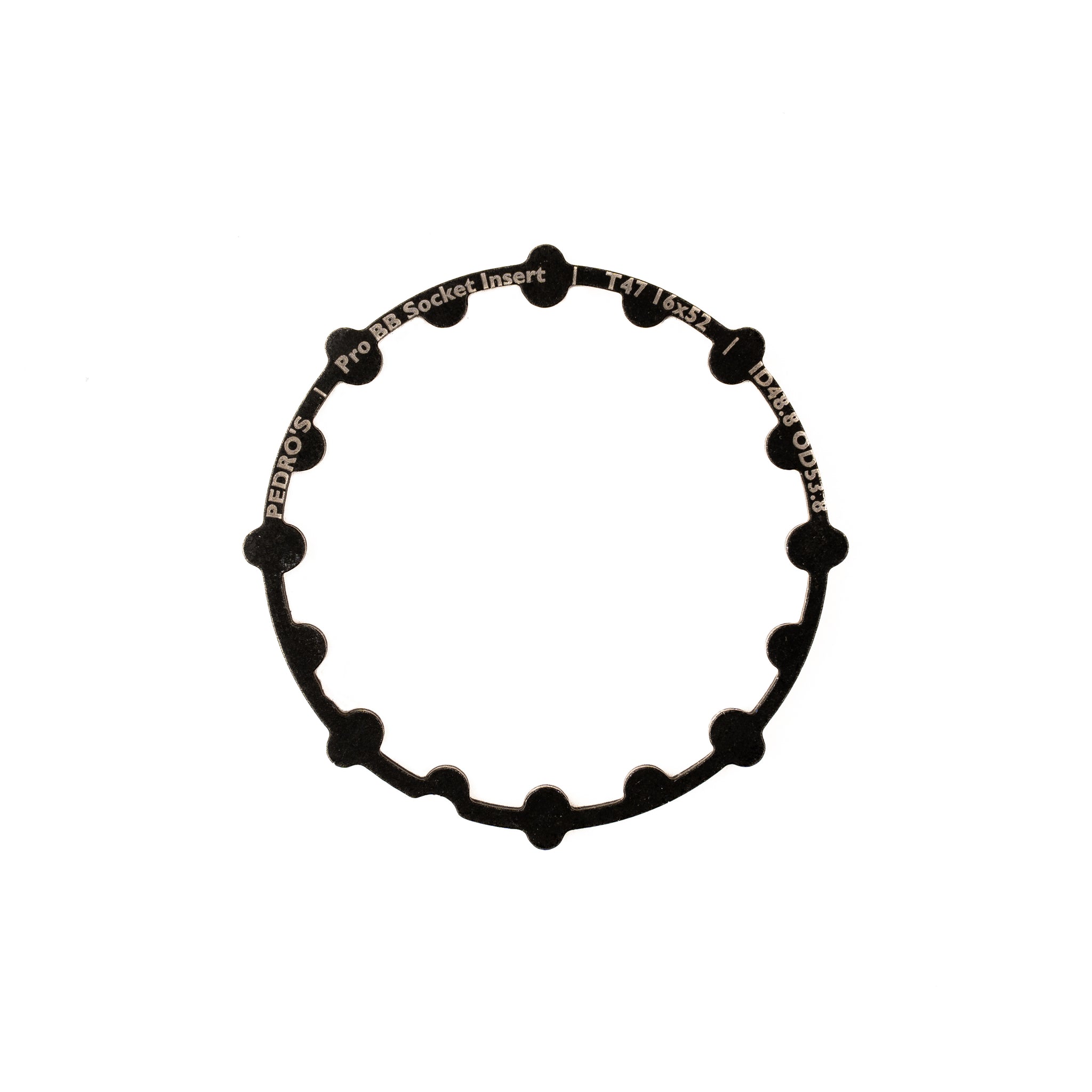

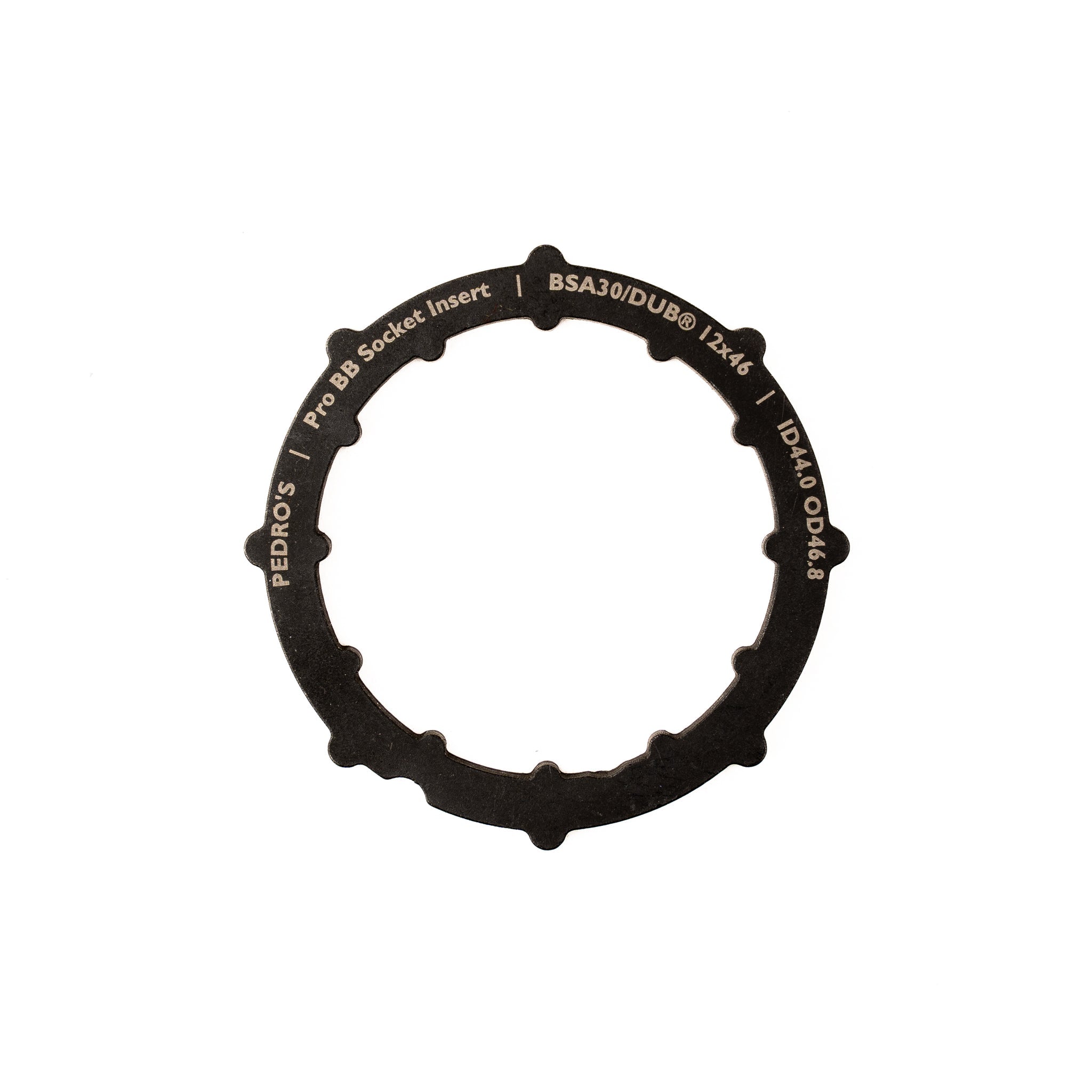

• Pro BB Inserts: Shimano 16x44 (6460761), Shimano 16x41 (6460762), Shimano 16x39 (6460763), BSA30/DUB 12x46 (6460764), T47 12x52 (6460765), Praxis 12x49 (6460766), T47 16x52 (6460767), T47 16x48.5 (6460768)
• 3/8in drive torque wrenches and ratchets
• Pedro's Pro Socket Handle and 24mm pedal wrenches
• Pro BB Socket Holder (code 6460215)

In the Box

• 1 x Pro BB Socket Cup (no inserts)

You Will Also Need

• At least one Pro BB Insert for your bottom bracket (sold separately)
• A drive tool: 3/8in torque wrench or ratchet, Pro Socket Handle or pedal wrench (sold separately)

Good to Know

• Cup only; it has no bottom bracket interface until an insert is fitted.
• For a ready-to-use kit, see the Pro BB Socket 5pc Set (code 6460769) or 10pc Set (code 6460770).
