Pedro's Pro BB Socket Insert - T47 16x48.5

Pedro's Pro BB Socket Insert - T47 16x48.5

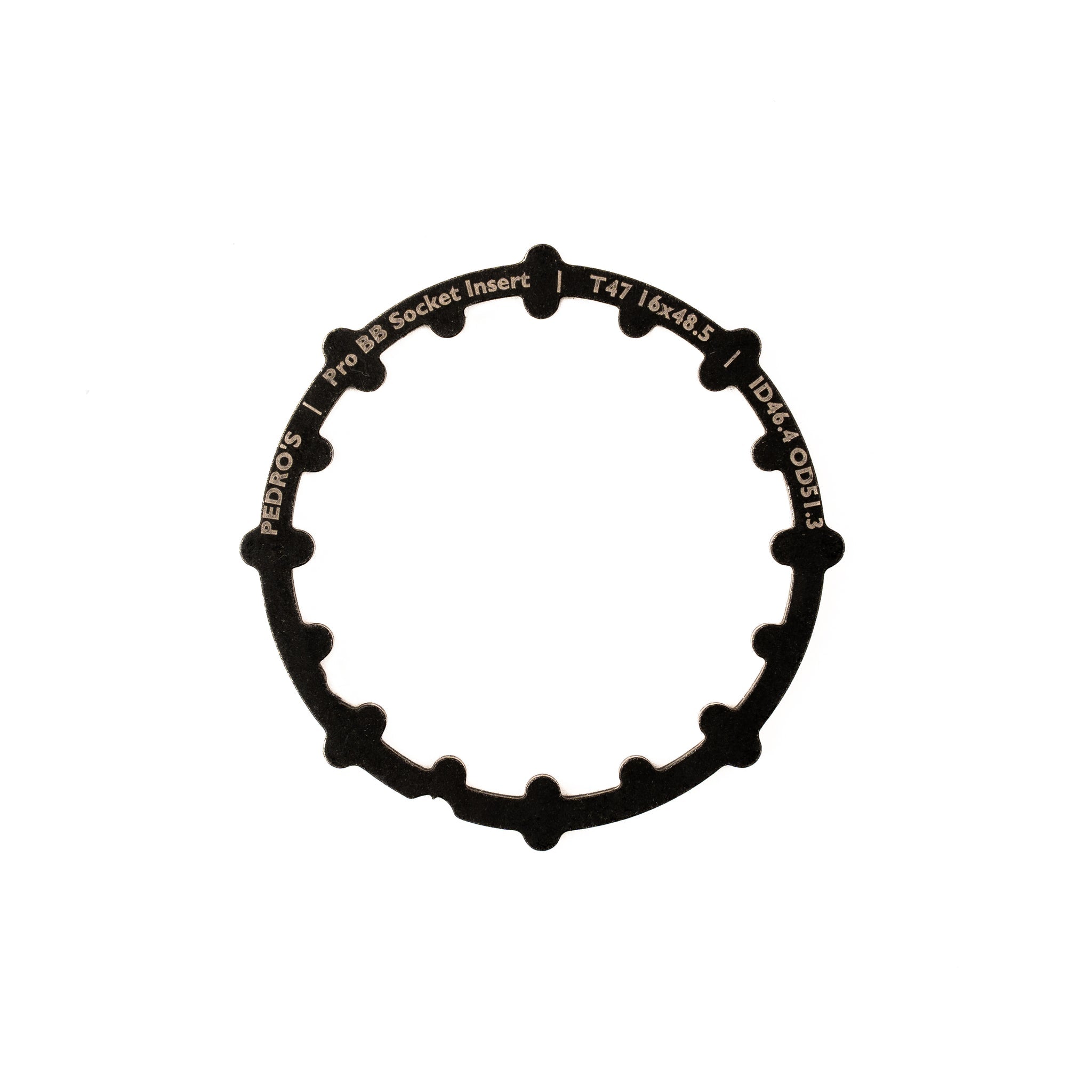

This is a single 16-notch x 48.5mm insert for Pedro's Pro BB Socket System. The system uses one aluminium Pro BB Socket Cup with interchangeable tool steel inserts, so you only buy the interfaces you need instead of a full socket for every bottom bracket standard.

The insert clicks into the cup and is held magnetically, so swapping between standards is quick. Used with the cup, it can be driven by a 3/8in torque wrench, the Pedro's Pro Socket Handle or a pedal wrench, and the cup's M12 thread accepts the Pro BB Socket Holder to stop the tool slipping.

Key Features

• 16-notch x 48.5mm bottom bracket interface
• Precision laser-cut tool steel with optimised heat treatment
• Magnetic click-in connection to the Pro BB Socket Cup
• Part of the Pedro's Pro BB Socket System
• Covered by Pedro's lifetime tool warranty

Compatibility

• FSA MegaEvo and BB386EVO (48.5mm 16-notch cup tool size)
• Wheels Manufacturing bottom brackets with 48.5mm 16-notch cup tool size
• Wheels Manufacturing PF30

In the Box

• 1 x Pro BB insert, T47 16x48.5

You Will Also Need

• Pro BB Socket Cup (code 6460760, sold separately)
• A 3/8in drive torque wrench or ratchet, Pro Socket Handle or pedal wrench to turn the cup (sold separately)
• Optional: Pro BB Socket Holder (code 6460215) to prevent slipping

Good to Know

• Supplied as an insert only; it cannot be used without the Pro BB Socket Cup.
• Also available as part of the Pro BB Socket 5pc and 10pc Sets (codes 6460769, 6460770).
