Pedro's Pro BB Socket Insert - Shimano 16x44

Pedro's Pro BB Socket Insert - Shimano 16x44

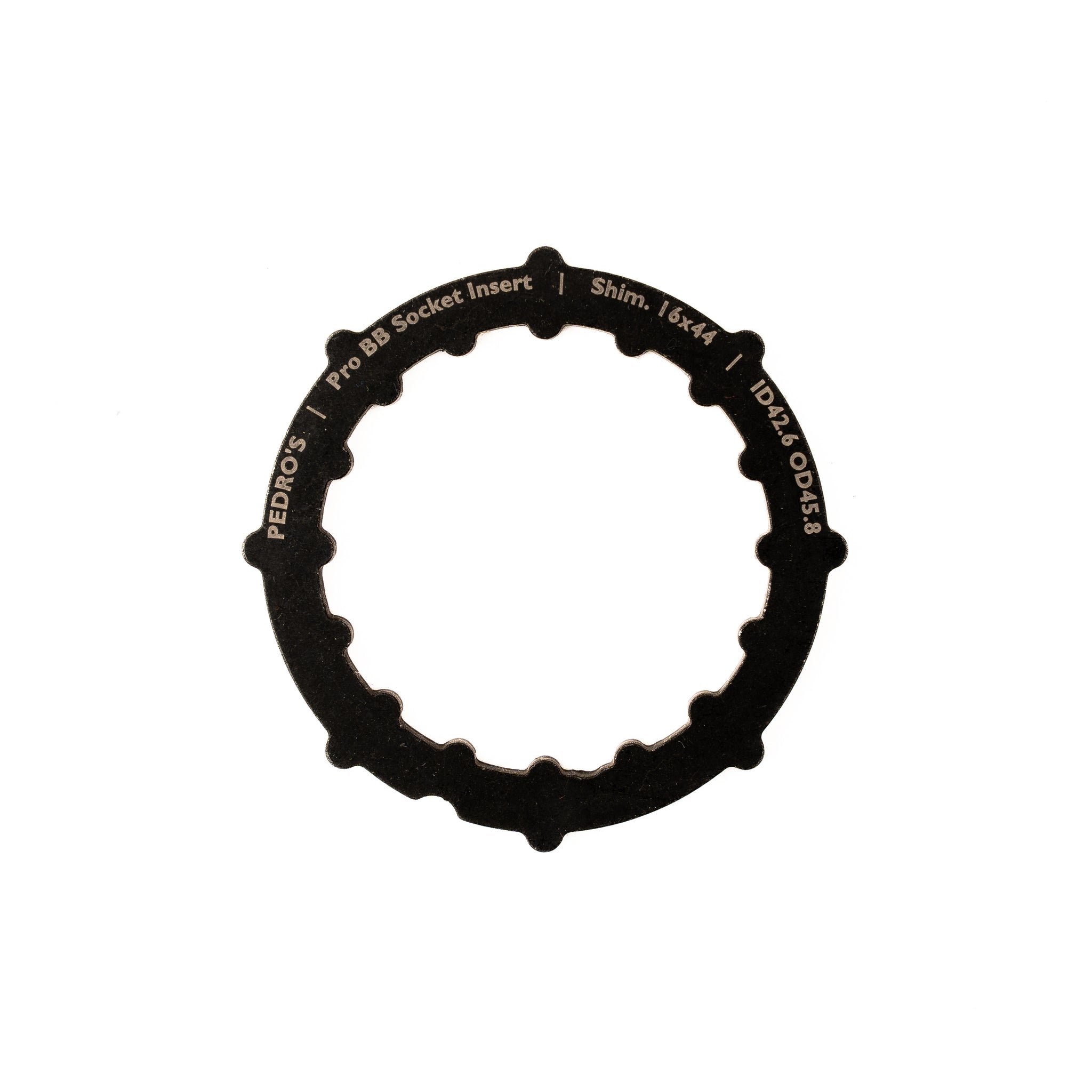

This is a single 16-notch x 44mm insert for Pedro's Pro BB Socket System. The system uses one aluminium Pro BB Socket Cup with interchangeable tool steel inserts, so you only buy the interfaces you need instead of a full socket for every bottom bracket standard.

The insert clicks into the cup and is held magnetically, so swapping between standards is quick. Used with the cup, it can be driven by a 3/8in torque wrench, the Pedro's Pro Socket Handle or a pedal wrench, and the cup's M12 thread accepts the Pro BB Socket Holder to stop the tool slipping.

Key Features

• 16-notch x 44mm bottom bracket interface
• Precision laser-cut tool steel with optimised heat treatment
• Magnetic click-in connection to the Pro BB Socket Cup
• Part of the Pedro's Pro BB Socket System
• Covered by Pedro's lifetime tool warranty

Compatibility

• Shimano BB80, BB5700, XT BB70, BB51 and earlier external bearing threaded cups
• Many external threaded cups from Campagnolo, Chris King, FSA MegaExo, Hope, SRAM/Truvativ GXP, Race Face X-Type, Surly, Wheels Manufacturing and others
• Disc brake rotor lockrings with 16 external notches
• Shimano TL-FC24 and TL-FC25 adapters

In the Box

• 1 x Pro BB insert, Shimano 16x44

You Will Also Need

• Pro BB Socket Cup (code 6460760, sold separately)
• A 3/8in drive torque wrench or ratchet, Pro Socket Handle or pedal wrench to turn the cup (sold separately)
• Optional: Pro BB Socket Holder (code 6460215) to prevent slipping

Good to Know

• Supplied as an insert only; it cannot be used without the Pro BB Socket Cup.
• Also available as part of the Pro BB Socket 5pc and 10pc Sets (codes 6460769, 6460770).
