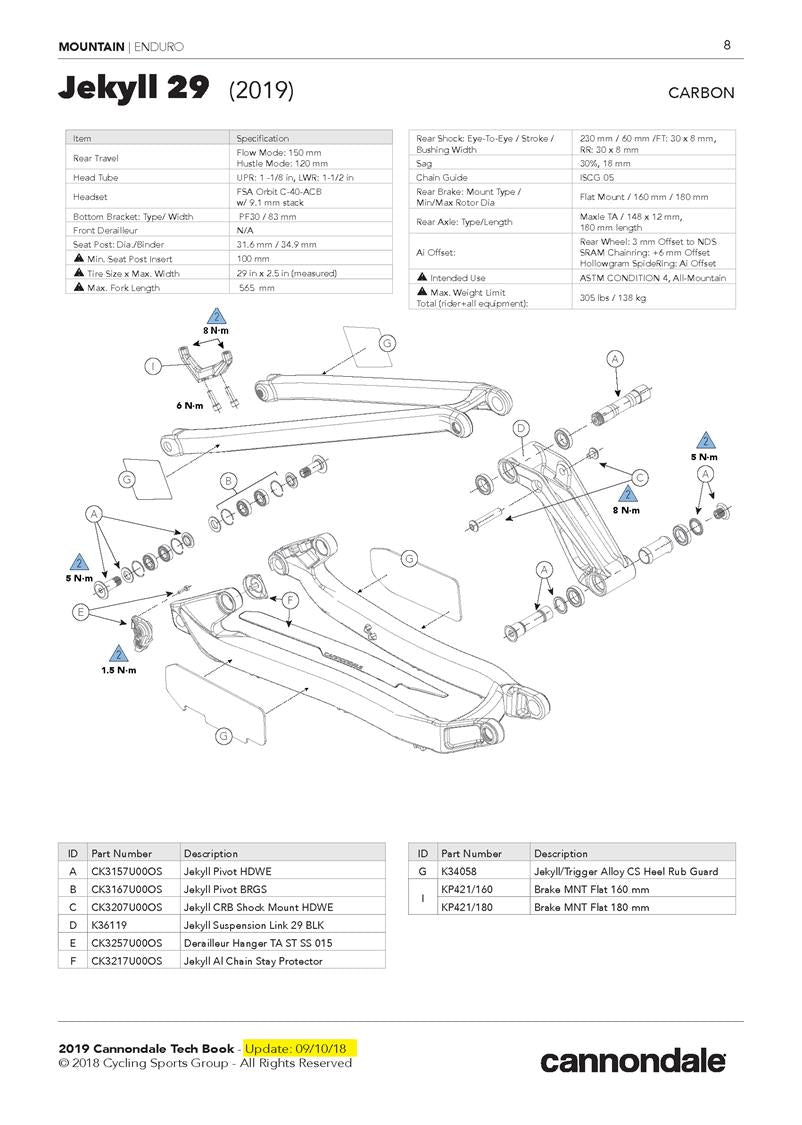

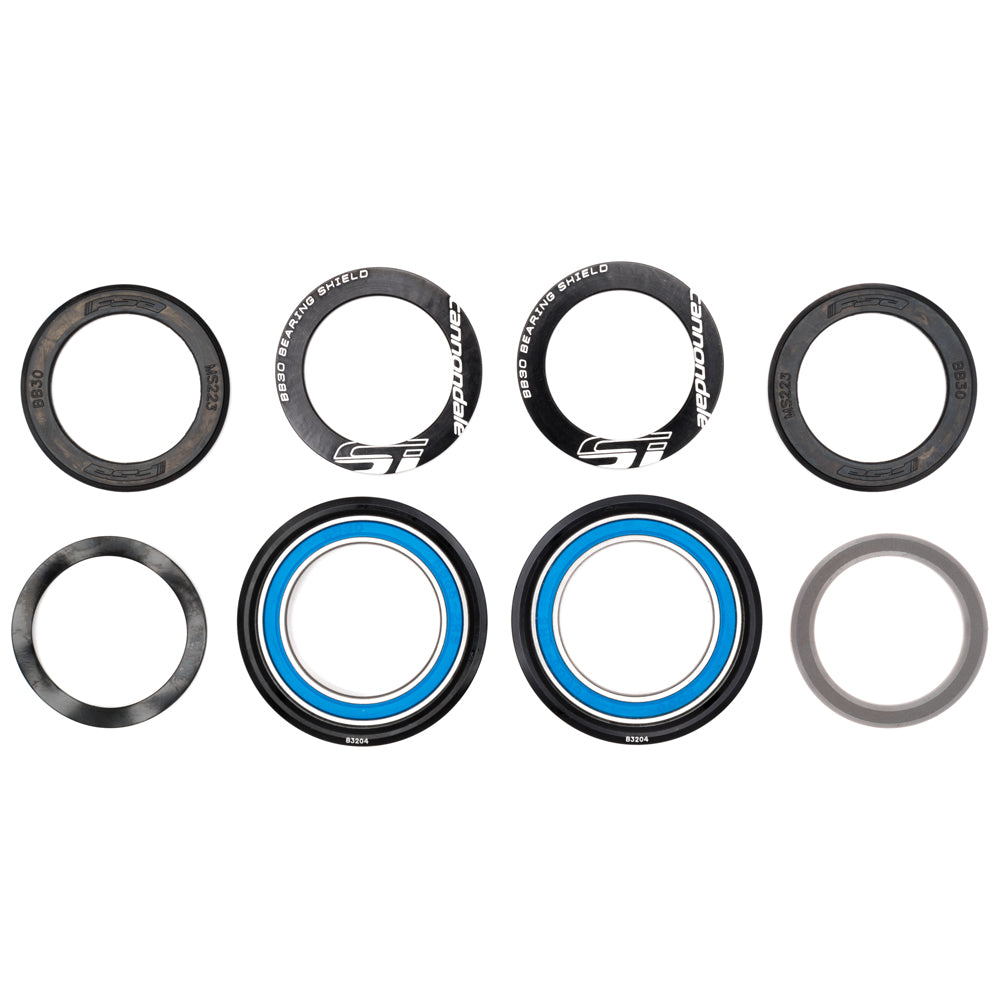

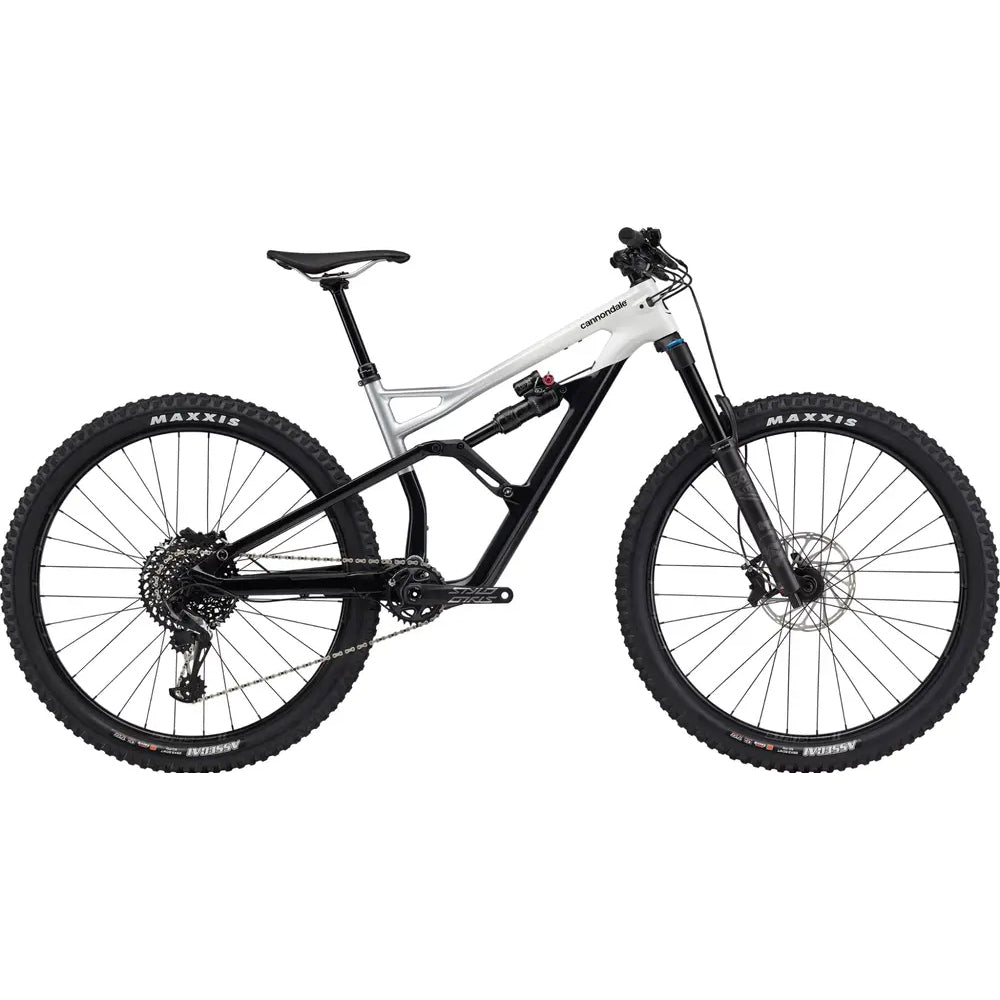

JEKYLL 29 SPARES 2019-2020 SPECIFICATIONS Rear Travel - 120mm / 150mm Head Tube - UPR: 1-1/2” LWR: 1.8” Headset - FSA Orbit C-40-ACB w/ 9.1 mm stack Bottom Bracket: Type / Width - PF30 / 83 mm Front Derailleur - N/A Seat Post: Dia./Binder - 31.6mm / 34.9mm Minimum Seat Post Insert - 100 mm Tire Size x Maximum Width - 29” x 2.5” (measured) Maximum Fork Length - 565mm Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 230 mm / 60 mm / FT: 30 x 8 mm, RR: 30 x 8 mm Sag - 30%, 18 mm Chain Guide - ISCG05 Rear Brake Mount / Type - Flat Mount Min / Max Rotor Diameter - 160mm / 180mm Axles: Type / Length - Maxle TA / 148 x 12 mm, 180 mm length Ai Offset - Rear Wheel: 3 mm Offset to NDS, SRAM Chainring: +6 mm Offset, Hollowgram SpideRing: Ai Offset Maximum Weight Limit: Total - 138kg |
|
