Pedro's Headset and Bearing Press - Headsets and Press-Fit BBs
Installs 1in, 1-1/8in, 1-1/4in and 1.5in headsets and most press-fit bottom brackets, with a 60-320mm working range. Roller thrust bearing, quick-release lower module, 33cm removable handles; stepped cup bushings and 22mm shim adapters included.
Pedro's Headset and Bearing Press - Headsets and Press-Fit BBs

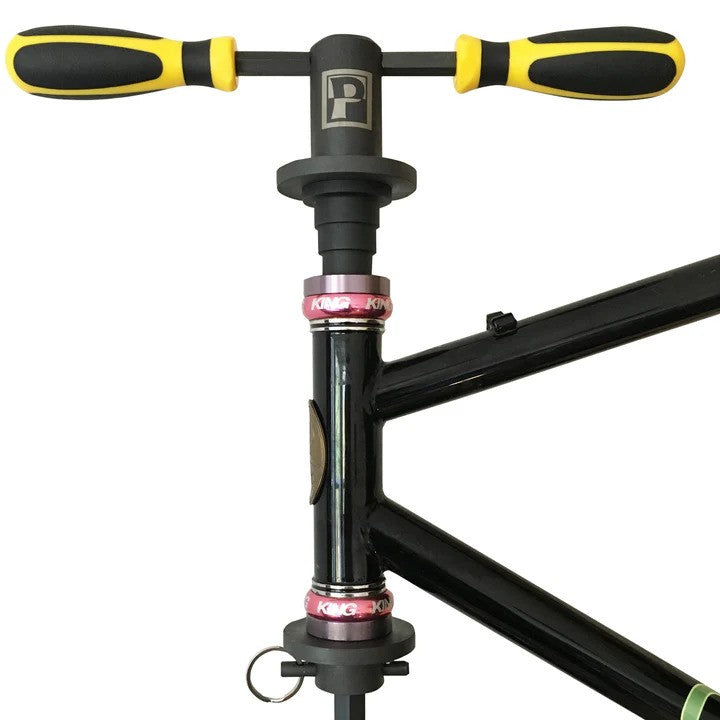

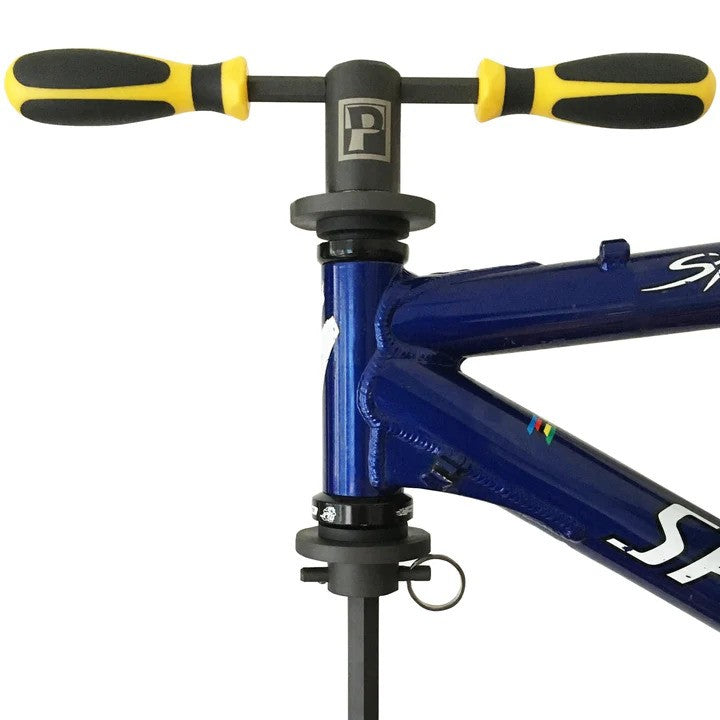

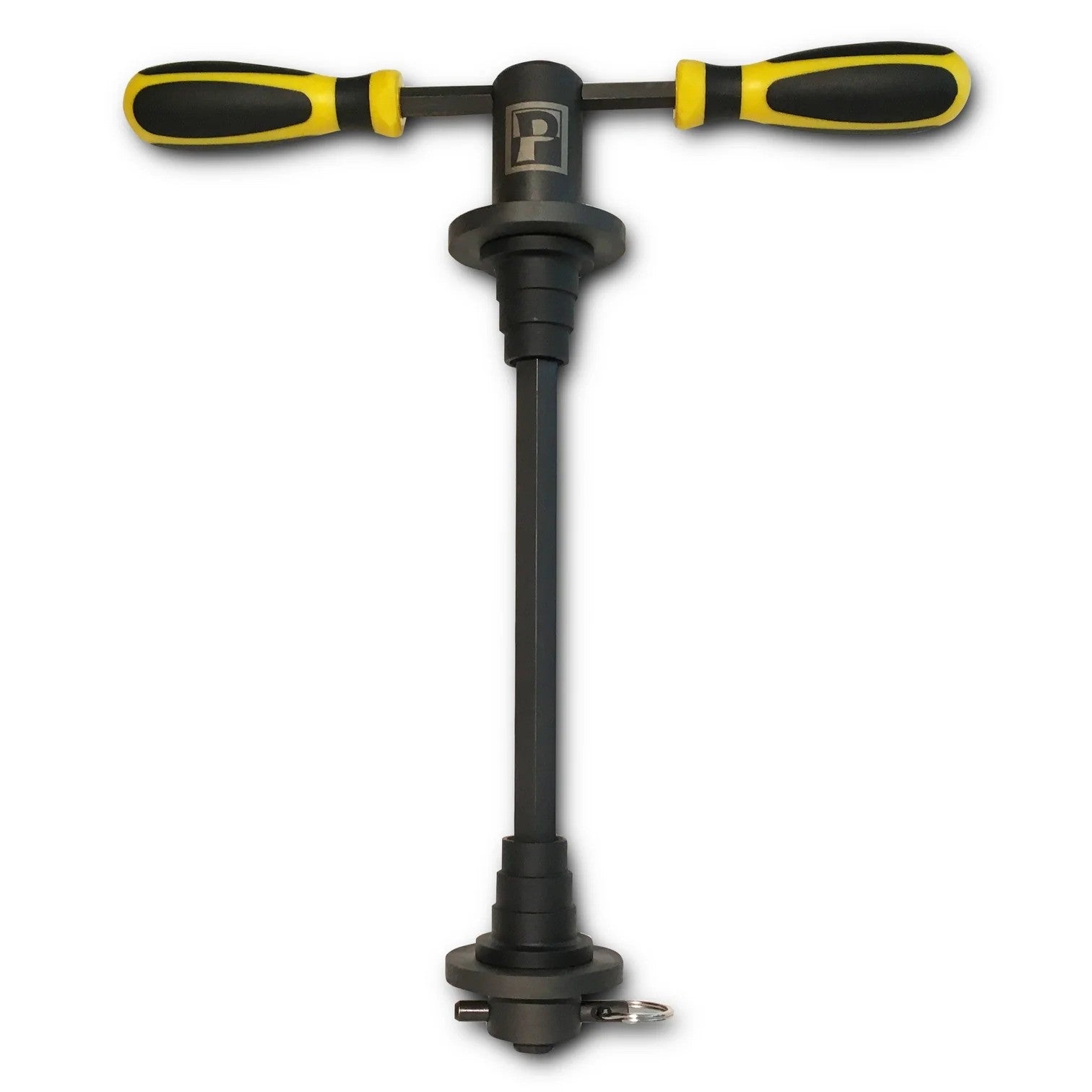

The Pedro's Headset and Bearing Press is a professional tool for pressing headset cups and press-fit bottom brackets in straight and accurately.
A precision roller thrust bearing gives smooth, low-effort pressing, and the quick-release lower module makes positioning and removal fast. It has a working range of 60mm to 320mm and removable ergonomic handles.
Key Features
Installs 1in, 1-1/8in, 1-1/4in and 1.5in headsets
Installs most press-fit bottom brackets (with optional bushing set)
Working range 60mm to 320mm
Precision roller thrust bearing
Quick-release lower press module
Removable 33cm ergonomic handles
Covered by Pedro's lifetime tool warranty
Compatibility
1in, 1-1/8in, 1-1/4in and 1.5in headset cups
Most press-fit bottom brackets, using the Bottom Bracket Bushing Set (code 6450925, sold separately)
Brand-specific cup bushings with a 22mm inside diameter
In the Box

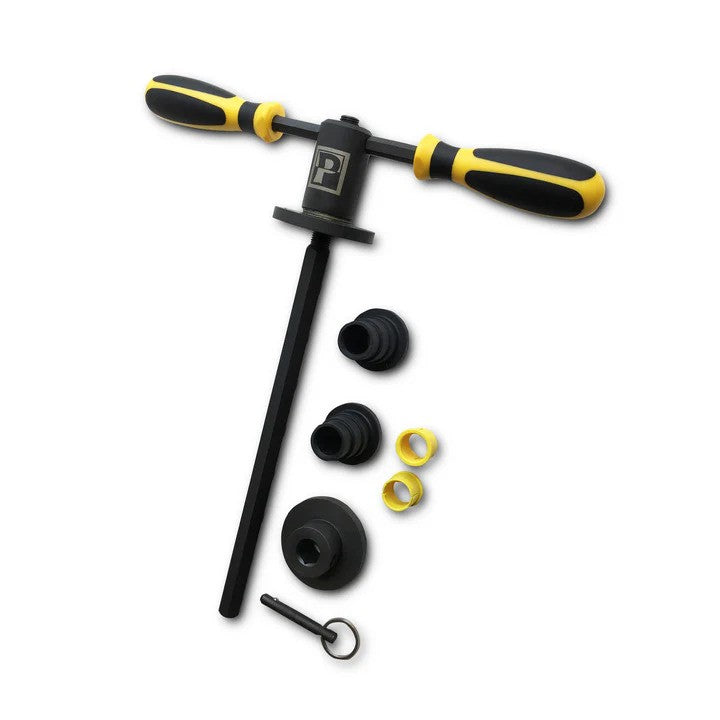

1 x Headset and Bearing Press with handles

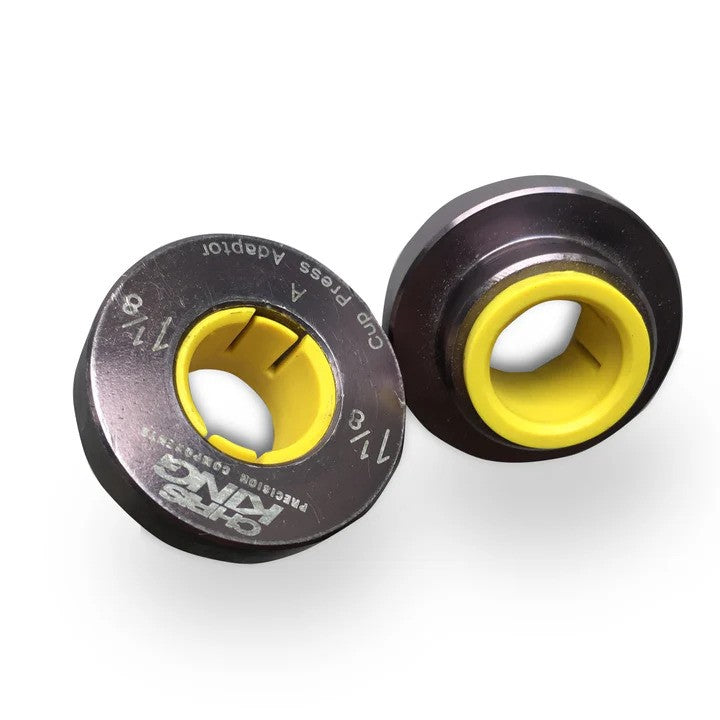

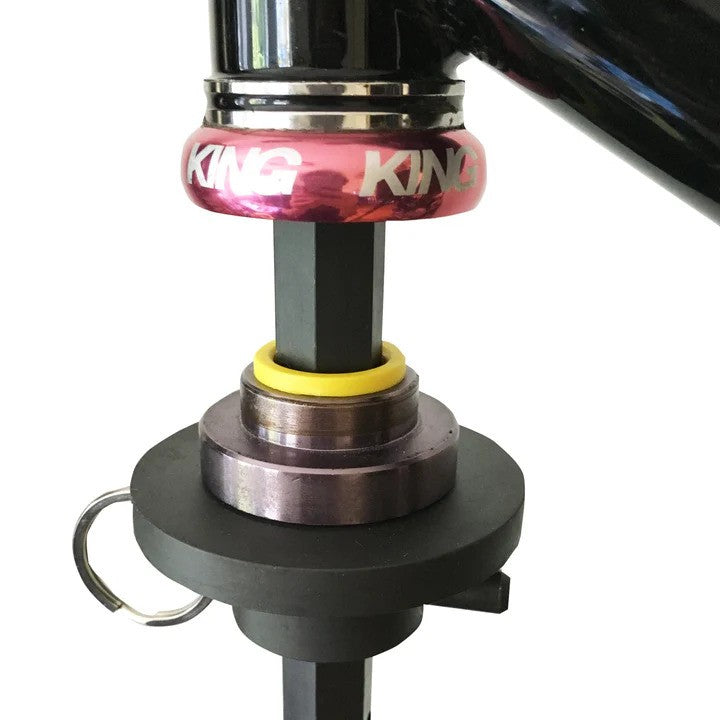

2 x Stepped Cup Bushings (fit most 1in and 1-1/8in standard headset cups)
2 x 22mm ID Shim Adapters
You Will Also Need
Bottom Bracket Bushing Set (code 6450925) for press-fit bottom brackets (sold separately)
Care & Safety
Check that cups and bearings start square in the frame before pressing, and use bushings that match the part being installed.
