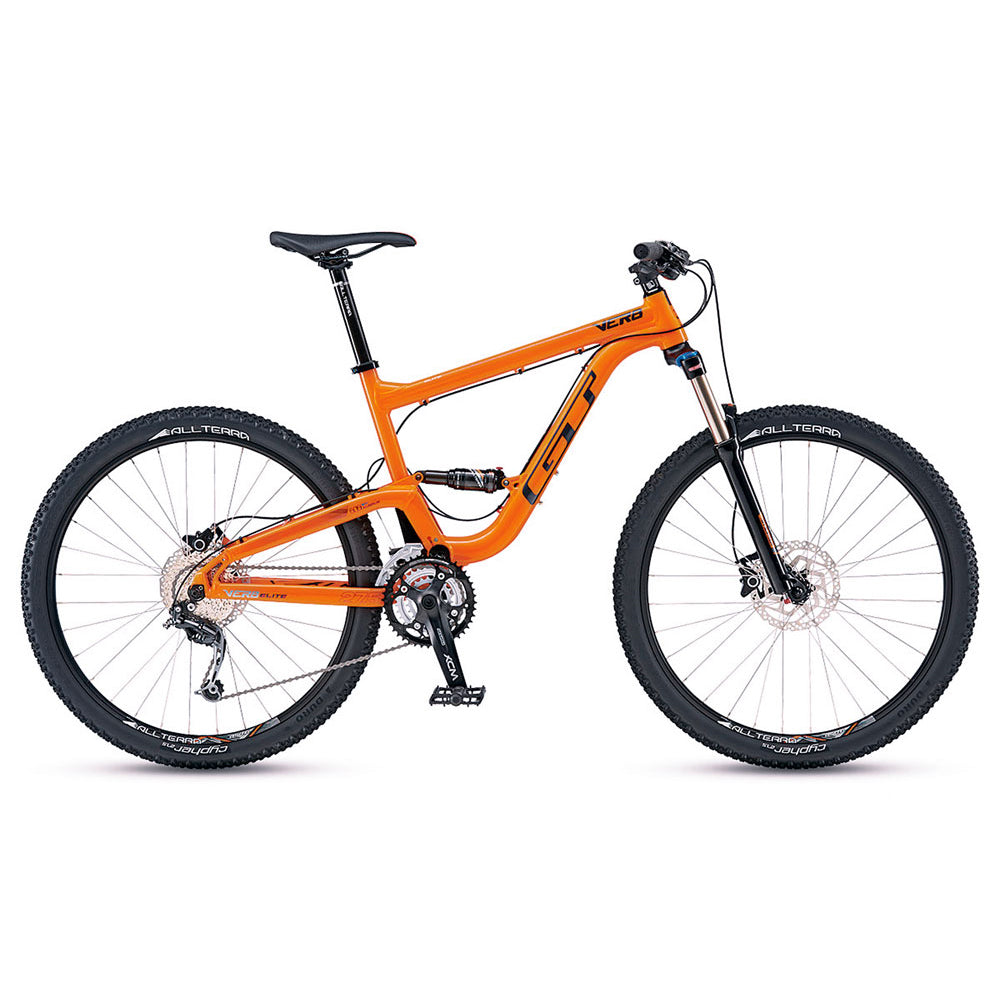

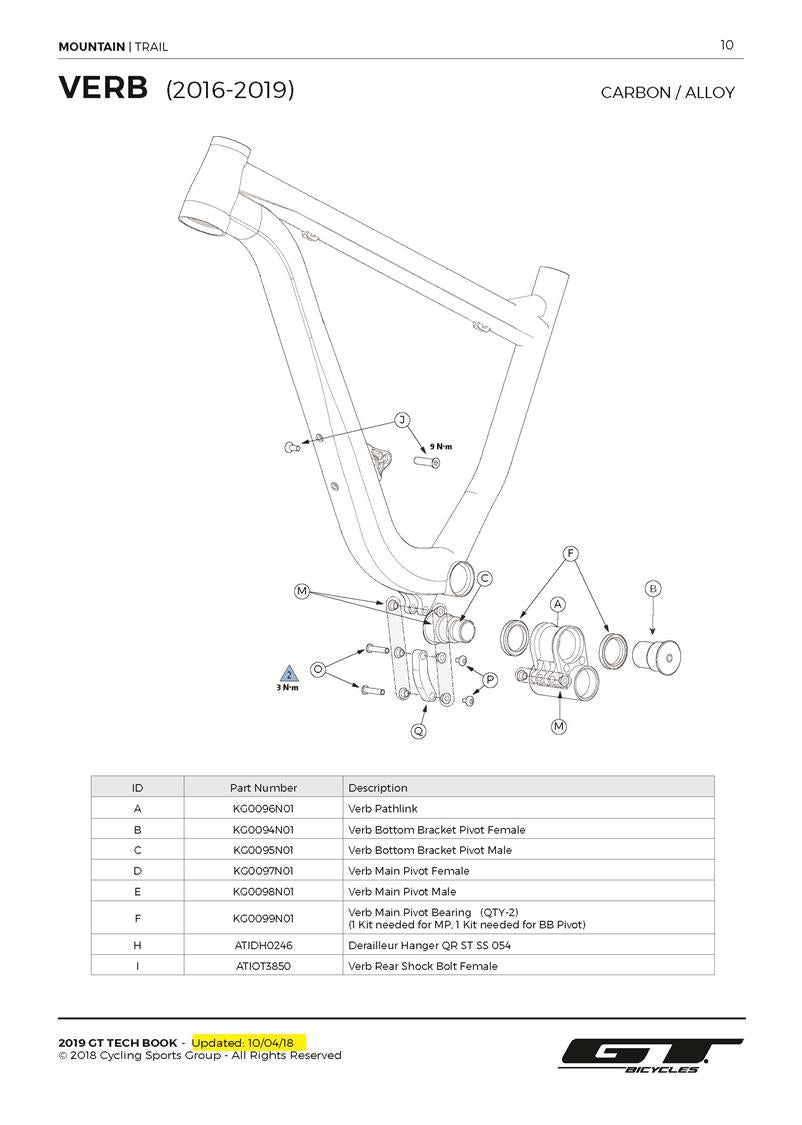

GT Verb 2016 - 2020 Frame Parts

GT VERB 2016 - 2020 FRAME PARTS

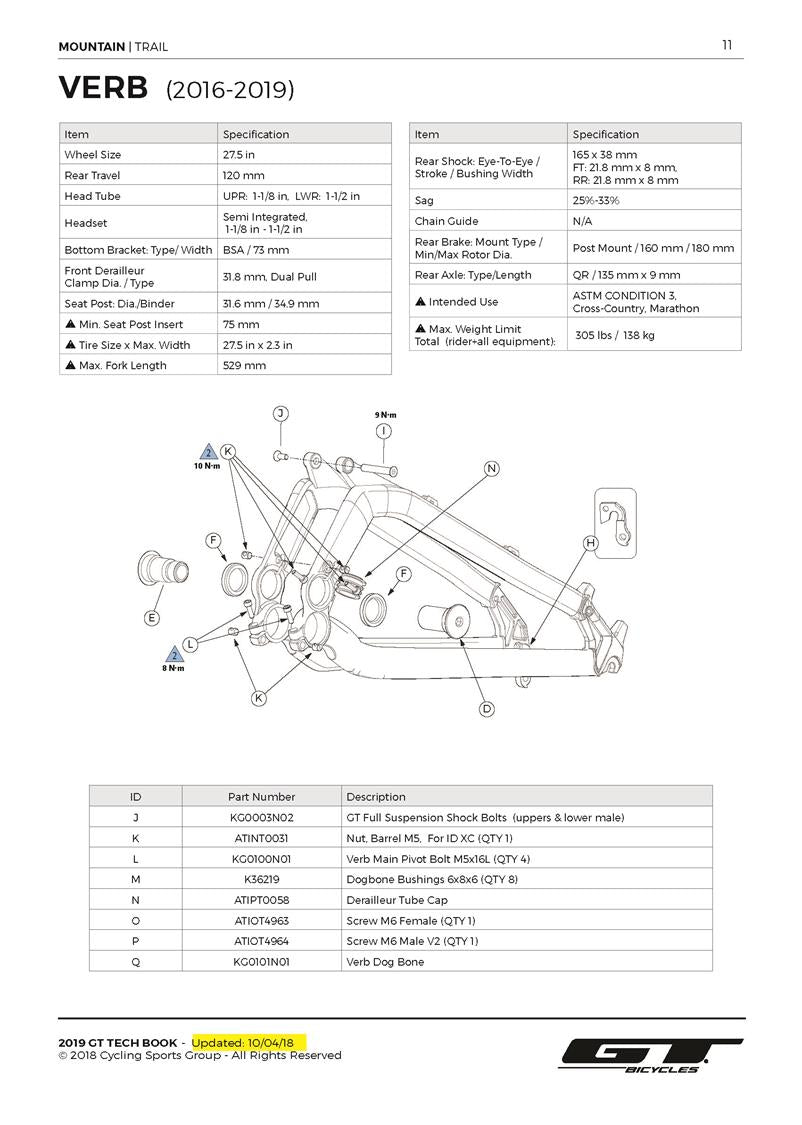

SPECIFICATIONS

• Rear Travel - 120 mm
• Head Tube - UPR: 1-1/8” LWR: 1-1/2”
• Headset - Semi Integrated, 1-1/8 in - 1-1/2 in
• Bottom Bracket: Type / Width - BSA / 73mm
• Front Derailleur - 31.8 mm, Dual Pull
• Seat Post: Dia./Binder - 31.6mm / 34.9mm
• Min. Seat Post Insert - 75 mm
• Tire Size x Max. Width - 27.5 in x 2.3 in
• Max. Fork Length - 529 mm
• Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 165 mm x 38 mm / 21.8 mm x 8 mm
• Sag - 25%-33%
• Chain Guide - N/A
• Rear Brake Mount / Type - Post Mount / 160mm / 180mm
• Rear Axle: Type / Length - QR / 135 mm x 9 mm
• Max. Weight Limit: Total - 138kg
