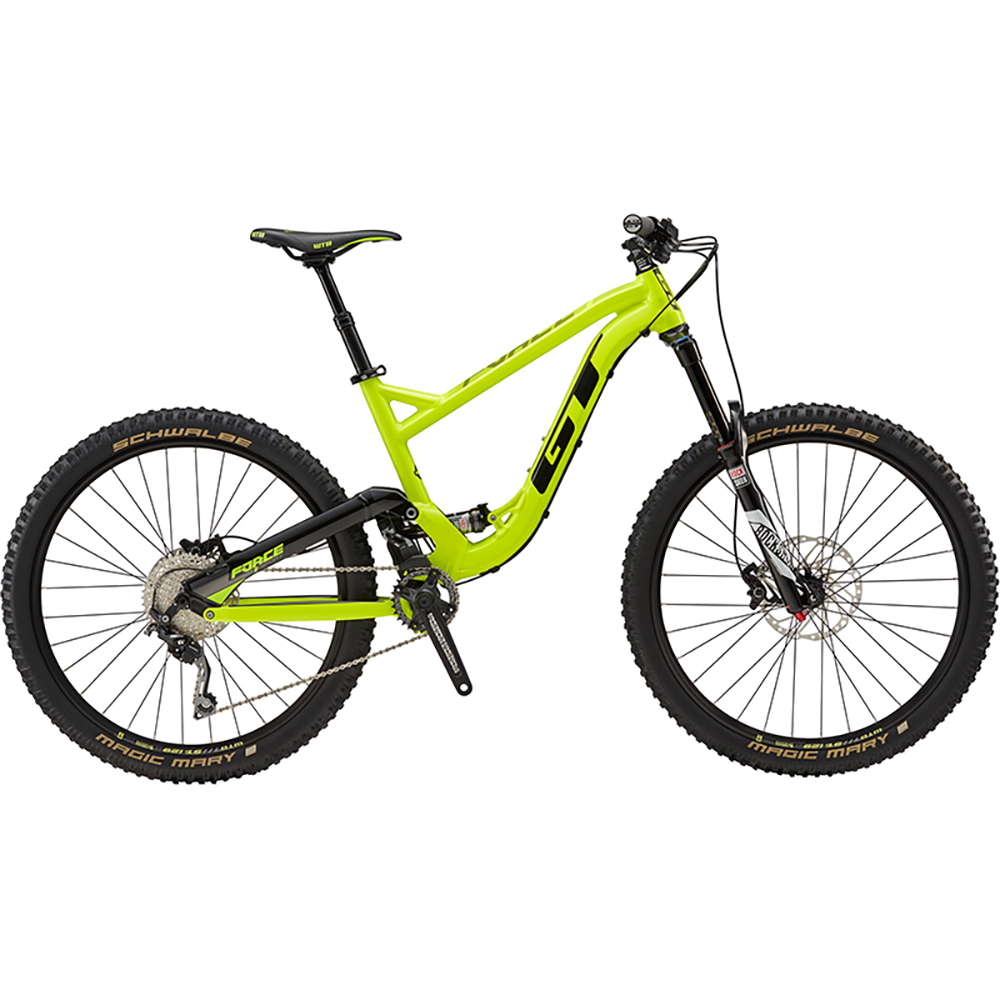

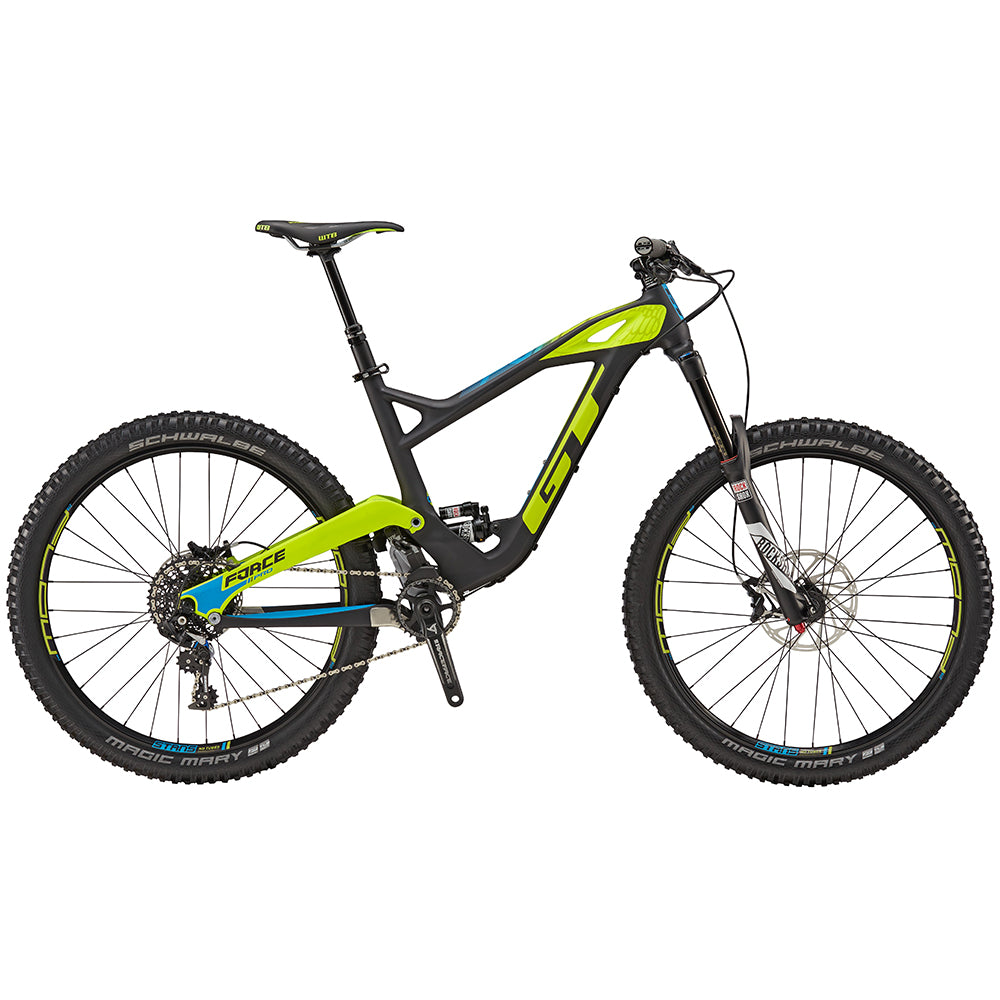

GT Force AOS 27.5 2016 - 2018 Frame Parts

GT FORCE AOS 27.5 2016 - 2018 FRAME PARTS

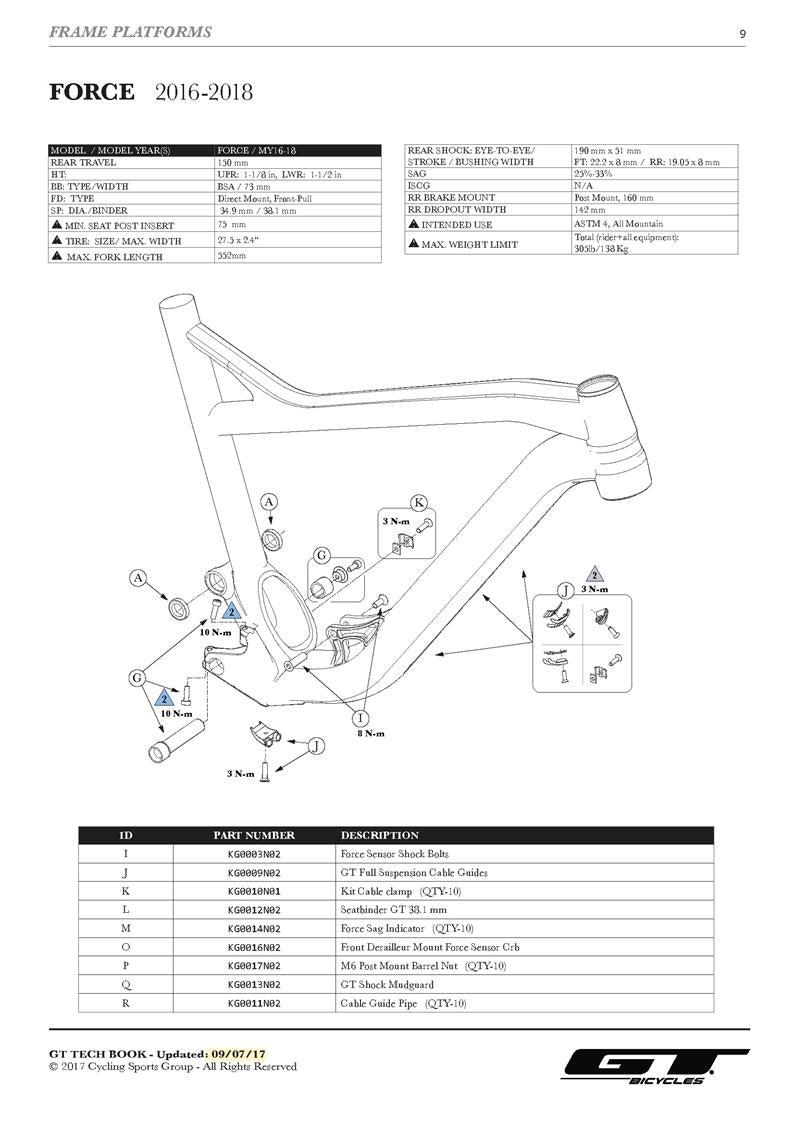

SPECIFICATIONS

• Rear Travel - 150 mm
• Head Tube - UPR: 1-1/8” LWR: 1-1/2”
• Headset - Integrated, 1-1/8” - 1-1/2”
• Bottom Bracket: Type / Width - BSA / 73mm
• Front Derailleur - Direct Mount, Front Pull
• Seat Post: Dia./Binder - 34.9mm / 38.1mm
• Min. Seat Post Insert - 75 mm
• Tire Size x Max. Width - 27.5 in x 2.4 in
• Max. Fork Length - 552 mm
• Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 190 mm x 51 mm / FT: 22.2 x 8mm RR: 19.05 x 8mm
• Sag - 25-33%
• Chain Guide - N/A
• Rear Brake Mount / Type - Post Mount / 160mm
• Rear Axle: Type / Length - 142mm
• Max. Weight Limit: Total - 138kg
