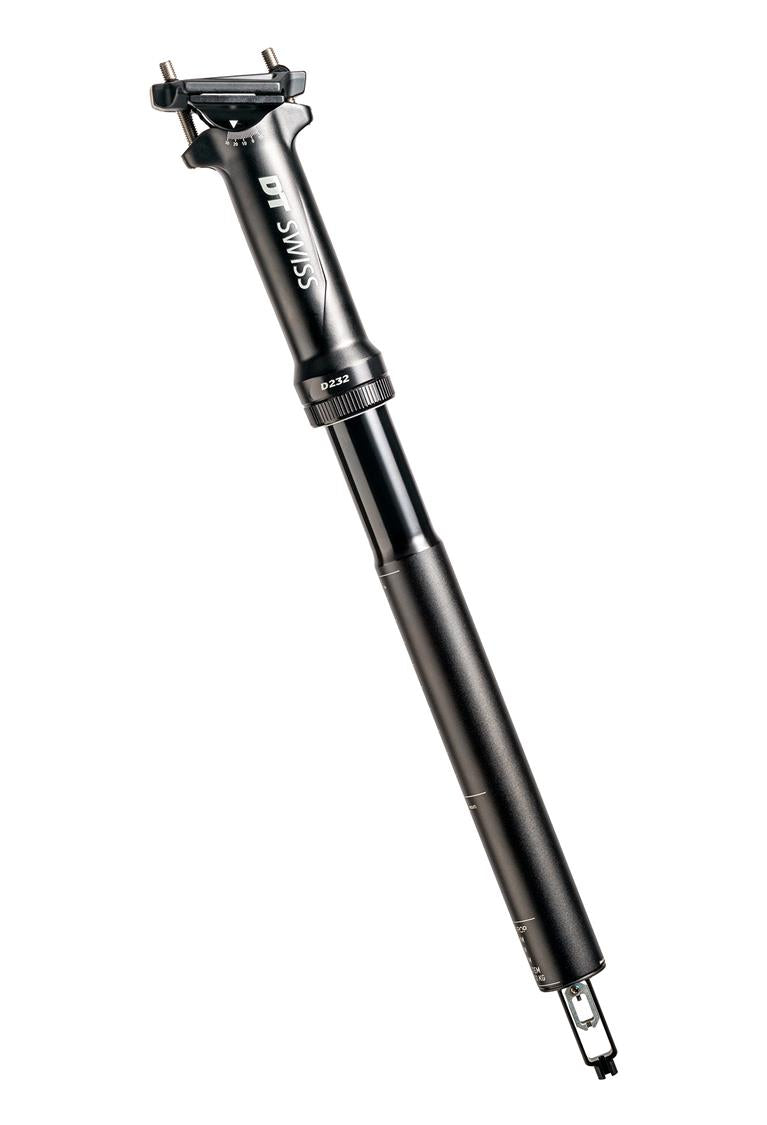

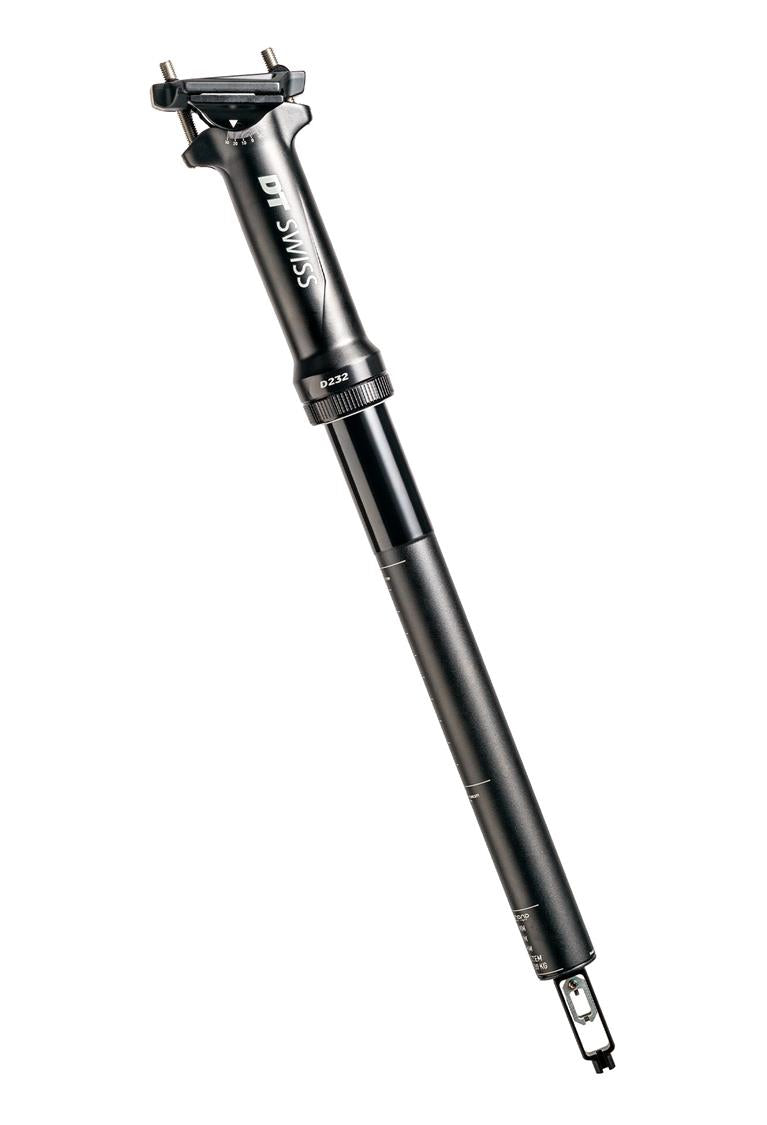

The D 232 offers everything you could want from a cross country dropper seat post. The 60 mm travel delivers extra performance when it comes to technical passages. The fully mechanical system is not only reliable and easy to maintain, the Upside Drop technology also makes a weight of just 416 grams possible.
Net weight: 416 grams
Max. System weight MTB: 130 kilograms
ASTM classification MTB: 3
Stroke [A]: 60mm
Seat tube diameter: 27.2mm / 30.9mm
Material saddle clamp: Aluminium
Material seat tube: Aluminum
Minimum extension [B]: 210mm
Maximum insertion [G]: 190mm
Minimum insertion [C]: 90mm
Maximum extension [F]: 310mm
Stack height [H]: 150mm
Length quick connector [E]: 45mm
Total length [D]: 400mm
Actuation type: Mechanical
Release mechanism: Mechanical

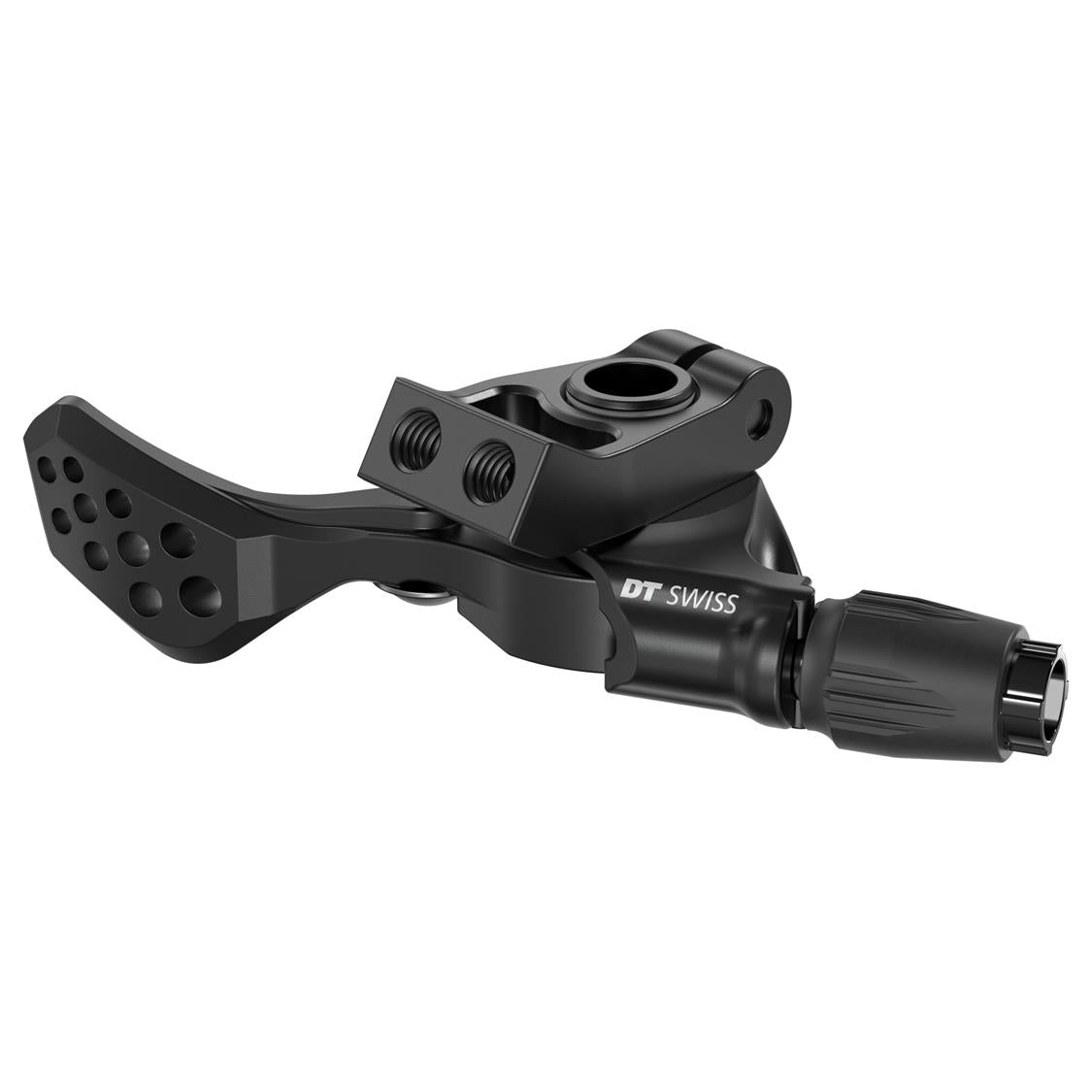

Compatibility: L1
Actuation steps: 2, up and down
Saddle clamp: 2-Bolt vertical

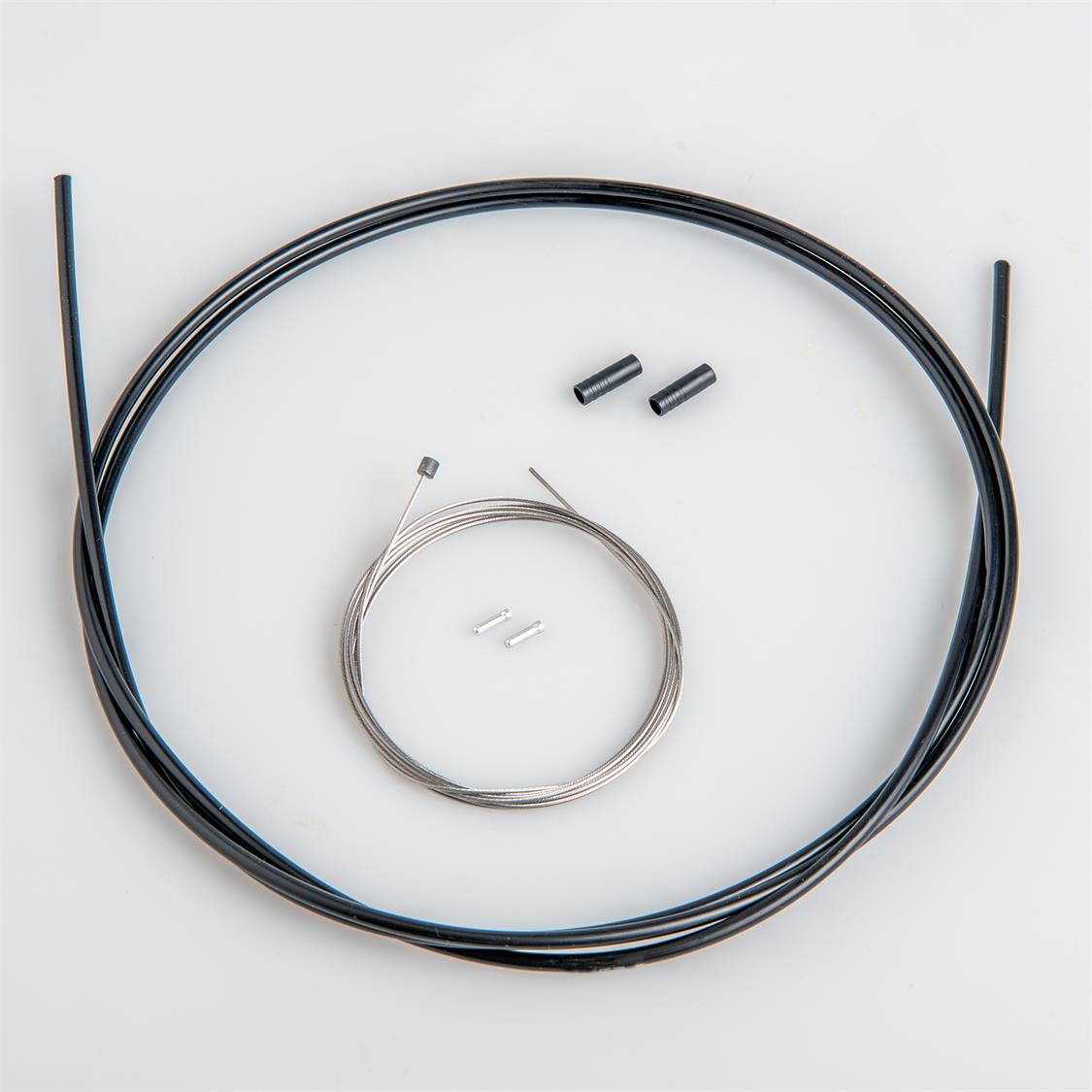

Inclusive: Cable with cable end crimps, L1 Trigger Matchmaker, No Carbon Paste
