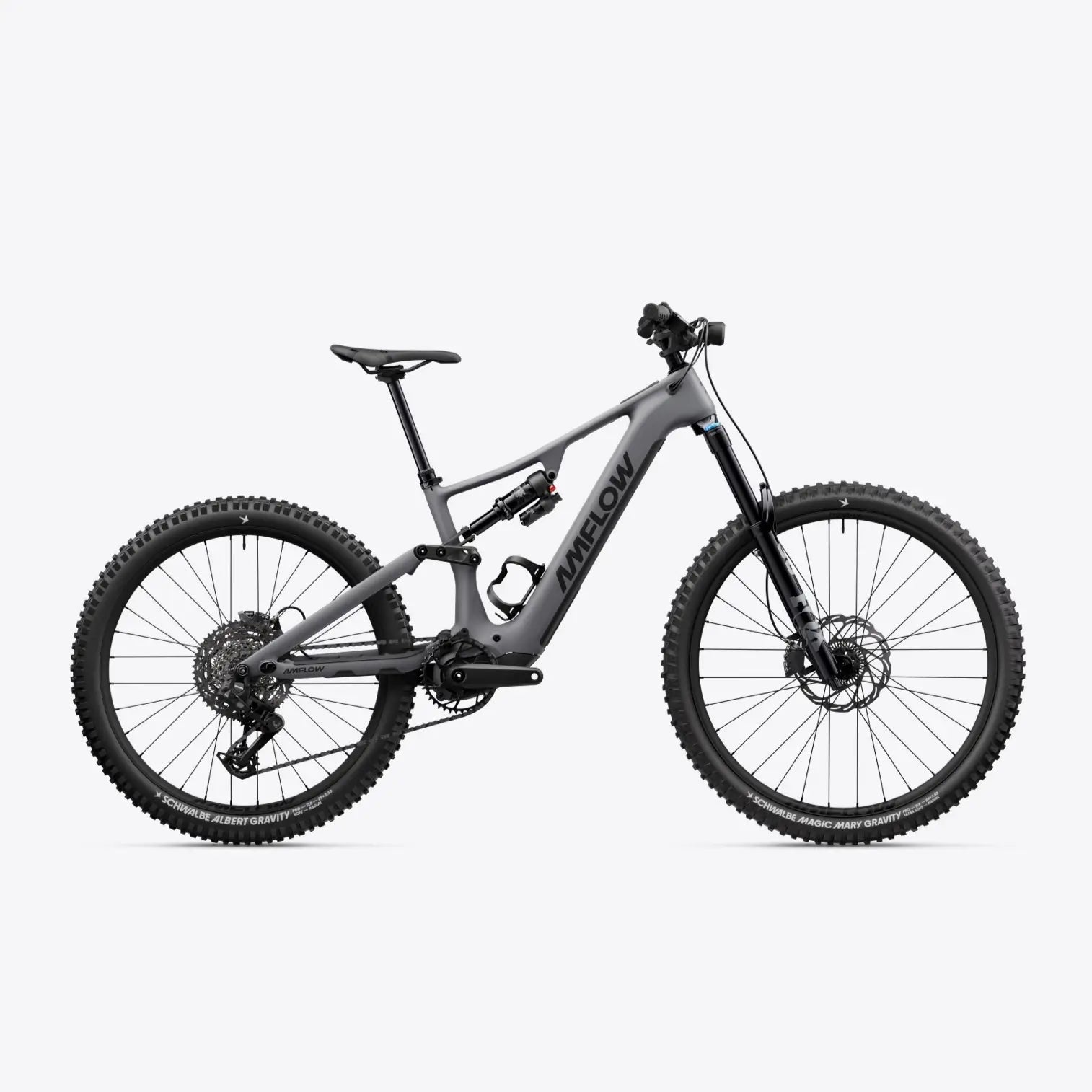

Amflow PR Carbon Pro Frame

Basalt Grey

40 adjustable geometry configurations *

Compatible with 27.5″ and 29″ rear wheels

^{* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.}

Avinox M2S Drive Unit: Nominal 130N·m, peak 150N·m

Avinox Screen: 2-inch OLED Control Display

Avinox Removable Battery: 800Wh

Avinox Wireless Controllers: Right and left sides

Avinox Fast Charger: 12A/508W

FOX Float X Performance (MY 2027)

2-position lever, custom tune, LSR adjustment, 210×55mm, air shock

FOX 36 Performance (MY 2027)

160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset

Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur

Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox

Shift Levers: SRAM AXS Pod Controller

Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T

Chain: SRAM Eagle 70 Transmission Flattop Chain

Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)

Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers

Magura Sensor Rotor (203mm, 2.5mm)

Amflow XMA-30 Mullet Version

Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready

Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready

Spokes: SAPIM E-Light

Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt

Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG

Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready

Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready

Amflow Enduro Alloy Handlebar

40mm Rise, 800mm Width, 35mm Diameter

5-degree upsweep, 9-degree backsweep

Amflow Enduro Grip 2 Lock-on Grips

Amflow Mountain Bike Split Stem

Length: 35mm

Clamping Diameter: 35mm

Amflow Mountain Saddle

Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm)

M Frame: 190mm

L/XL Frame: 210mm

XXL Frame: 230mm

Avinox Front Light

Amflow Bottle Cage

Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)

Removable Battery Keys × 2

5/10mm Dropper Post Travel Reducing Spacer

Quick Start Guide

Rear Light

Torque Wrench

Clear Frame Protection Film

Shock Pump
