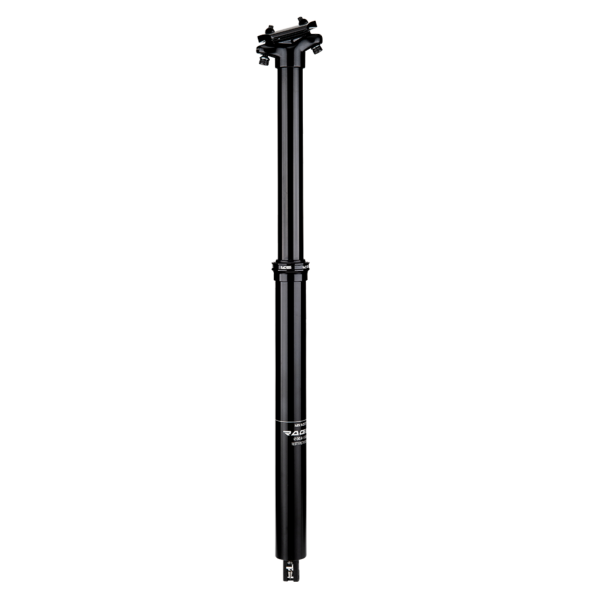

Rage-i breaks new ground with never-before seen performance and weight at such an affordable price point.
Whats new
Updated cylindrical upper clamp nuts do not spin
More vertical head clamp bolt angle
Dedicated cartridge architecture is reliable and smooth
Lightweight, rotating bottom actuator
Reduced actuation force
Longer travel options
Remote sold separately
Features:
Alloy stanchion
Weight optimized alloy mast
Air sprung hydraulic cartridge
Press fit bushing and dust wiper
Designed for internal frame routing
Short insertion length to travel ratio
Compatible with all KS Southpaw, KG and Westy remotes
Compatible with carbon seat rails 7 x 9mm, KS Torque Spec is 10nm, check saddle torque spec and choose the lower of the two figures to tighten it too
Dropper Post Options, both Internal and External, Posts now sold with NO remote, cable is included with post, please see accessories for available remotes
Model
Routing
Features & Available Diameters
Ragei 2.0
Internal
Internally routed remote at an affordable price. Features an air-adjustable Oil Pressure Stick, self-purging design and threaded seal collar. Diameters: 30.9 / 31.6 / 34.9mm

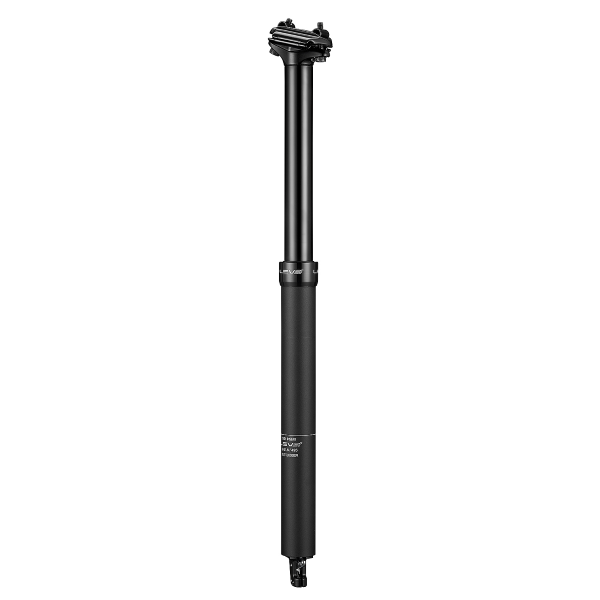

Ragei-S
Internal
Internally routed remote with adjustable suspension action and dropper functionality. Sealed Oil Pressure Stick. Diameters: 30.9 / 31.6mm
