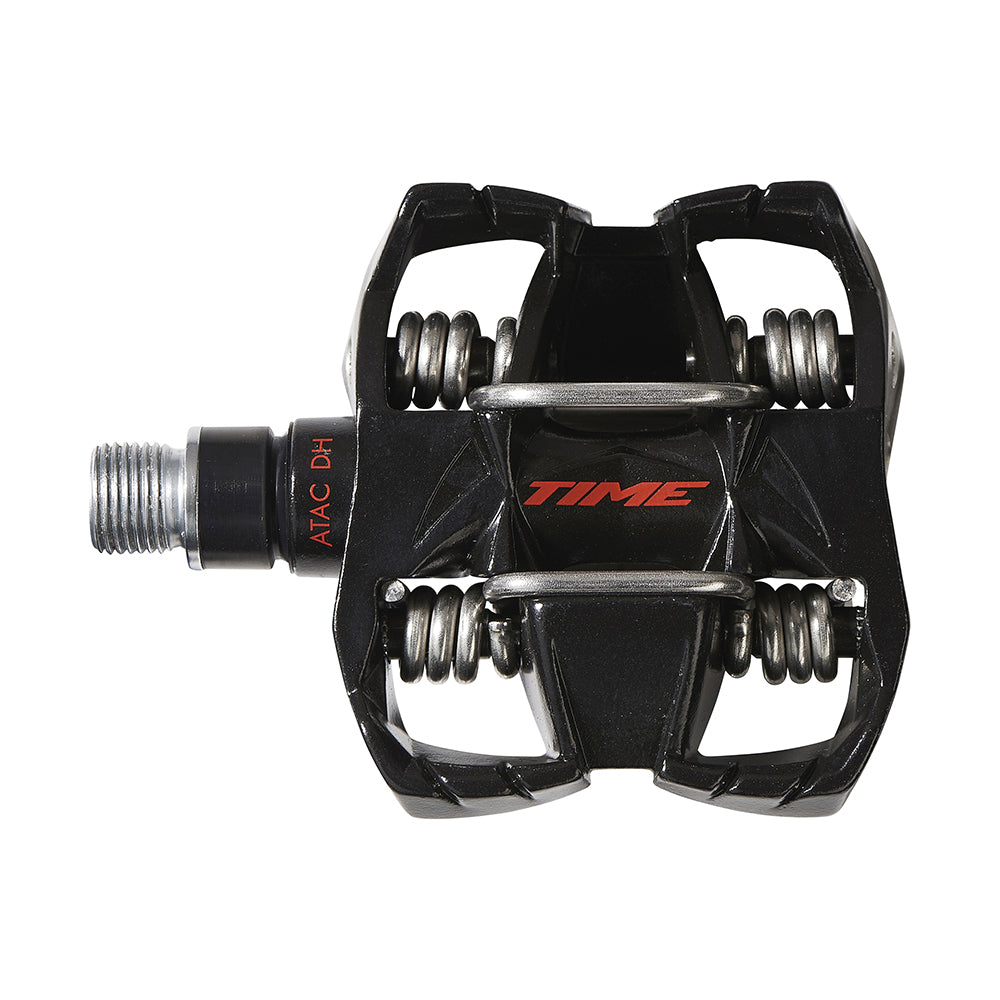

Time ATAC DH 4 Pedal

$99.00
By TIME Sport

TIME ATAC DH 4 DOWNHILL / TRAIL PEDAL, INCLUDING ATAC CLEATS, BLACK

The DH 4 is built with an aluminium body and oversized axle to handle the roughest trail conditions and biggest descents. TIME's famous easy entry and exit system allow riders to easily put a foot down when needed and clip back in fast. The open, self-cleaning design keeps the pedal clean so its function is not compromised by dirt, debris, or mud.

SPECIFICATIONS

Bearings Steel
Body component Aluminium
Cleats ATAC cleats
Pedal stack height 19mm
Angular freedom n/a
Contact surface area n/a
Distance pedal spindle / crank arm 54mm
Lateral freedom 5mm
Release angle -10° with ATAC Easy cleats, 13 or 17° with ATAC cleats
Tension no
Threading 9/16 - 20 inch
Colour (Pedal) Black
Accessories ATAC cleats
Intended use Enduro / Trail / DH
Weight (per pedal) g


FEATURES

  • Rugged for downhill performance.
  • Easy pedal entry and exit to put foot down when needed.
  • Cleats included with all pedal purchases.
Stock Item
